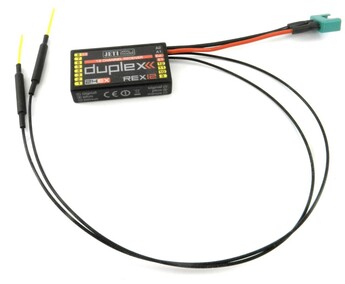

DUPLEX REX 12 EPC

Description

12 channel receiver compatible with JETI EX & EX Bus protocols. Supports telemetry functions and contains a separate battery power connector.

Additional features:

• PPM input
• PPM output
• Integrated expander for EX & EX Bus devices
• UDI digital output

Parameters

Weight [g]	24
Dimensions [mm]	51 x 28 x 11
Number of channels	12
Telemetry	Yes
Operational temperature [°C]	-10 to 85
Compatible protocols	DUPLEX 2.4 GHz EX, EX Bus
Antenna Length [mm]	2x 400
Supply Voltage [V]	3.5 - 8.4
Average Current [mA]	75
Satellite receiver support	Yes
Output Power [dBm]	15
Receiver Sensitivity [dBm]	-106
Assist stabilization	No
Frequency	2.4GHZ
