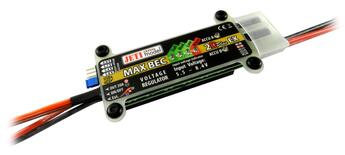

Max Bec2D plus

Description

Manufactured according to very high European standards, the MAX BEC 2D plus EX is the latest dual input, linear voltage regulator from JETI. The Max BEC 2D Plus EX includes a magnetic switch, so there is no mechanical wear-and-tear from switching the unit on and off.

The MAX BEC 2D plus EX supports on / off via RC Switch. It can be easily installed.

The unit comes equipped with a large heat-sink to dissipate any excess heat. In addition to its magnetic switch feature, the 2D Plus EX is programmable by using the JETIBOX and is also Duplex 2.4EX compatible.
This allows audible alarms to be configured for low input voltage or high-temperature. When used with the Duplex 2.4EX, it also allows real-time feedback of input voltage and temperature as well as output voltage wirelessly from the JETIBOX profi.
Redundant inputs are provided for power-supply and the output features an MPX type socket, directly supporting Duplex and all Duplex EPC receivers.

Parameters

Weight [g]	85
Dimensions [mm]	100 x 29 x 16
Sustained current [A]	12
Peak current (max 30s) [A]	20
Telemetry	Yes
Operational temperature [°C]	-10 to 130
Recommended input voltage [V]	5.5 to 8.4
Output voltage [V]	5.0 - 6.0
Idle current [µA]	240
Max. power loss [W]	20
Number of battery inputs	2
Input voltage max. [V]	16
