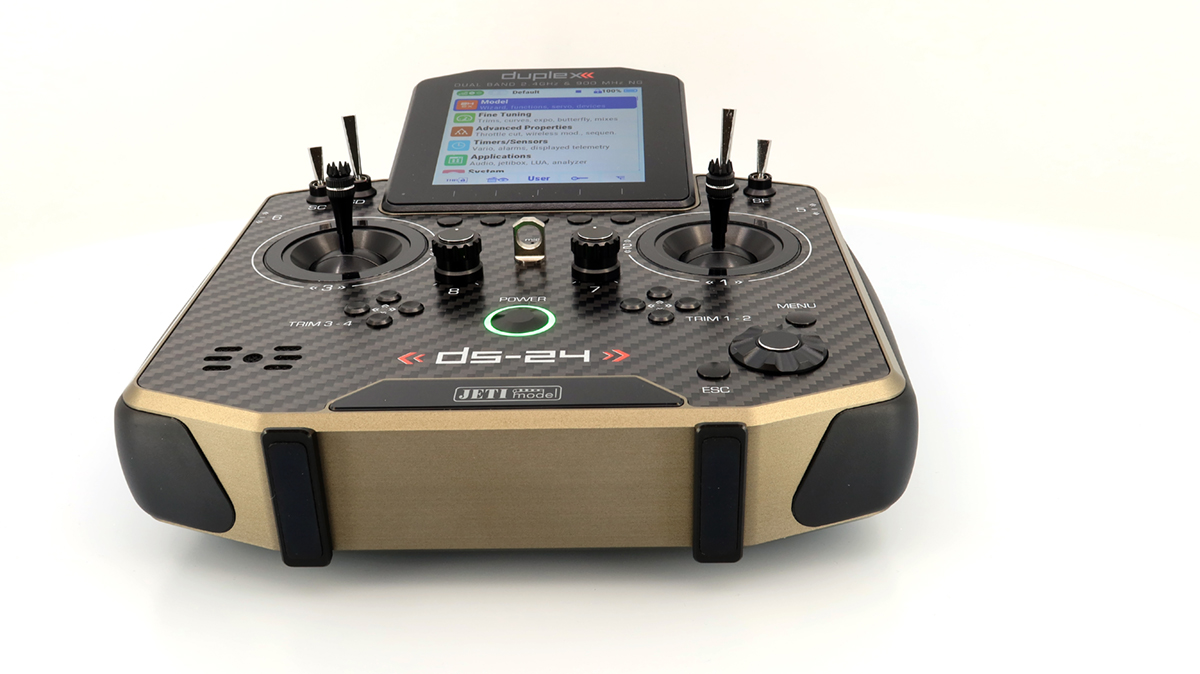

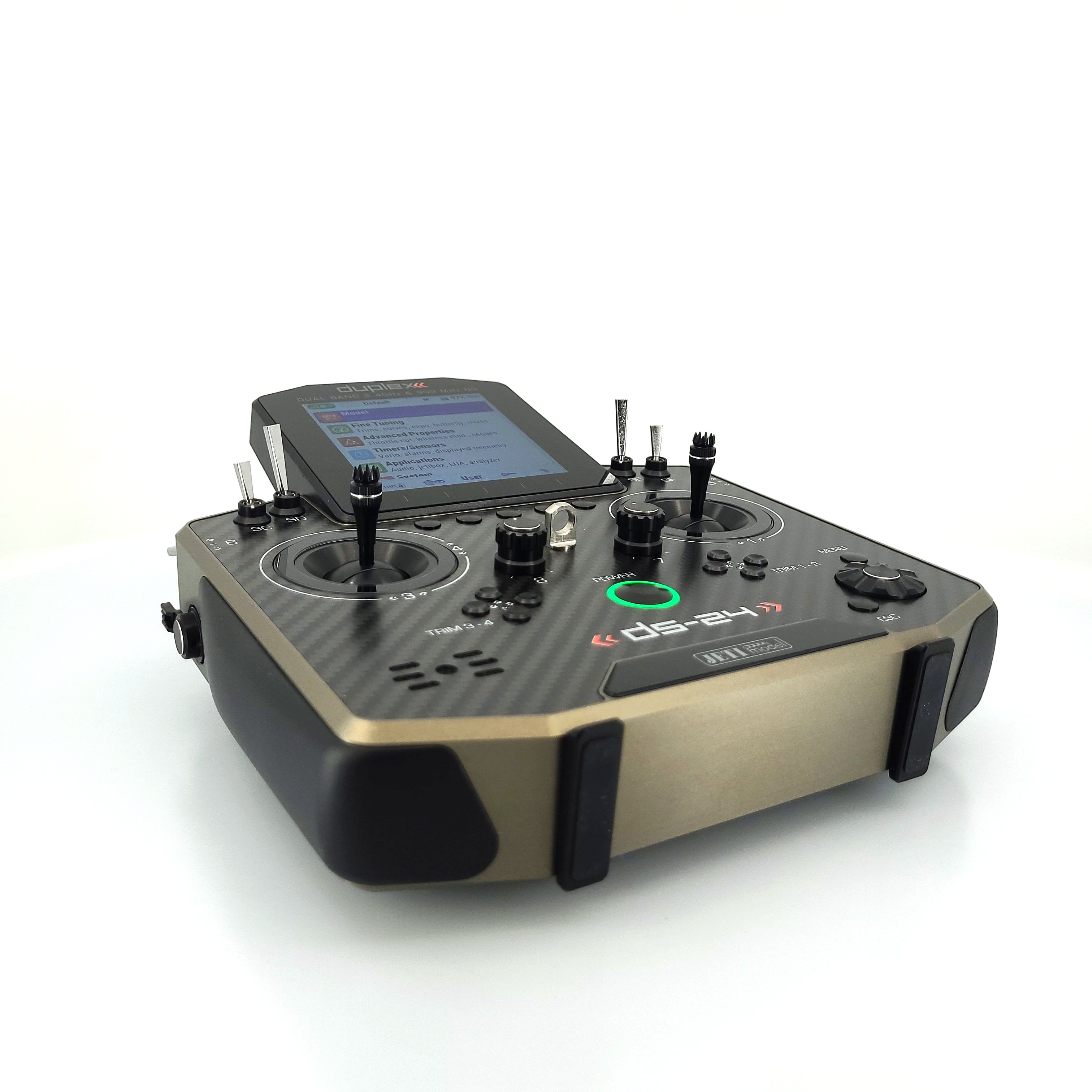

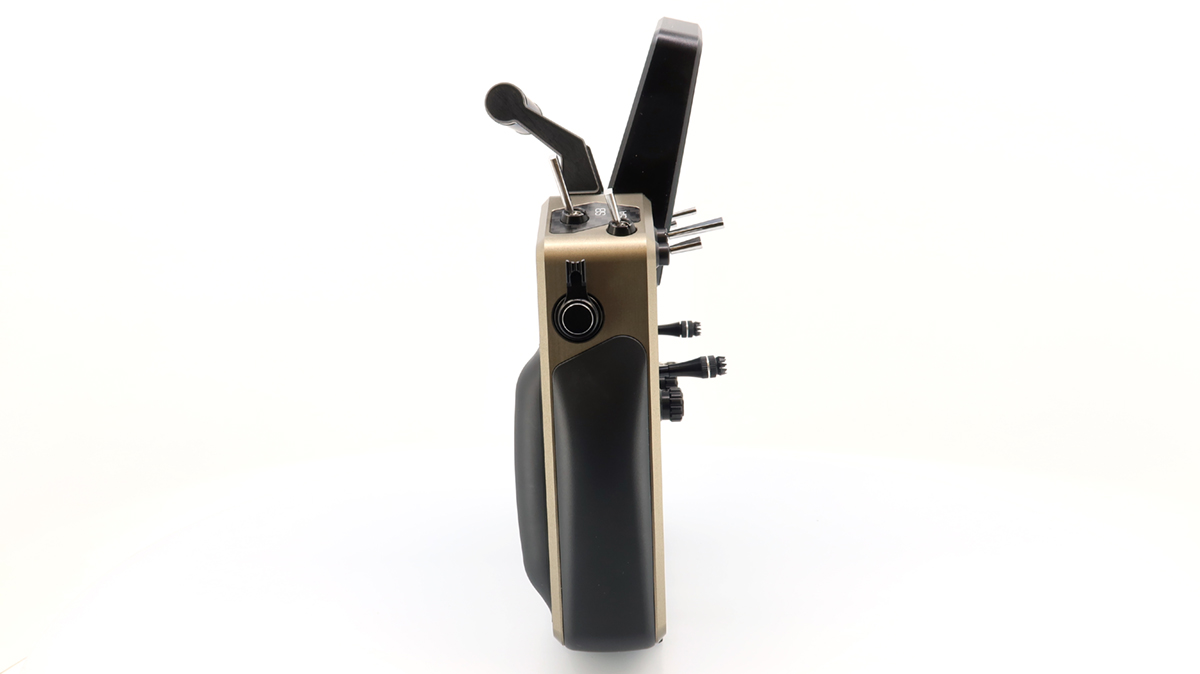

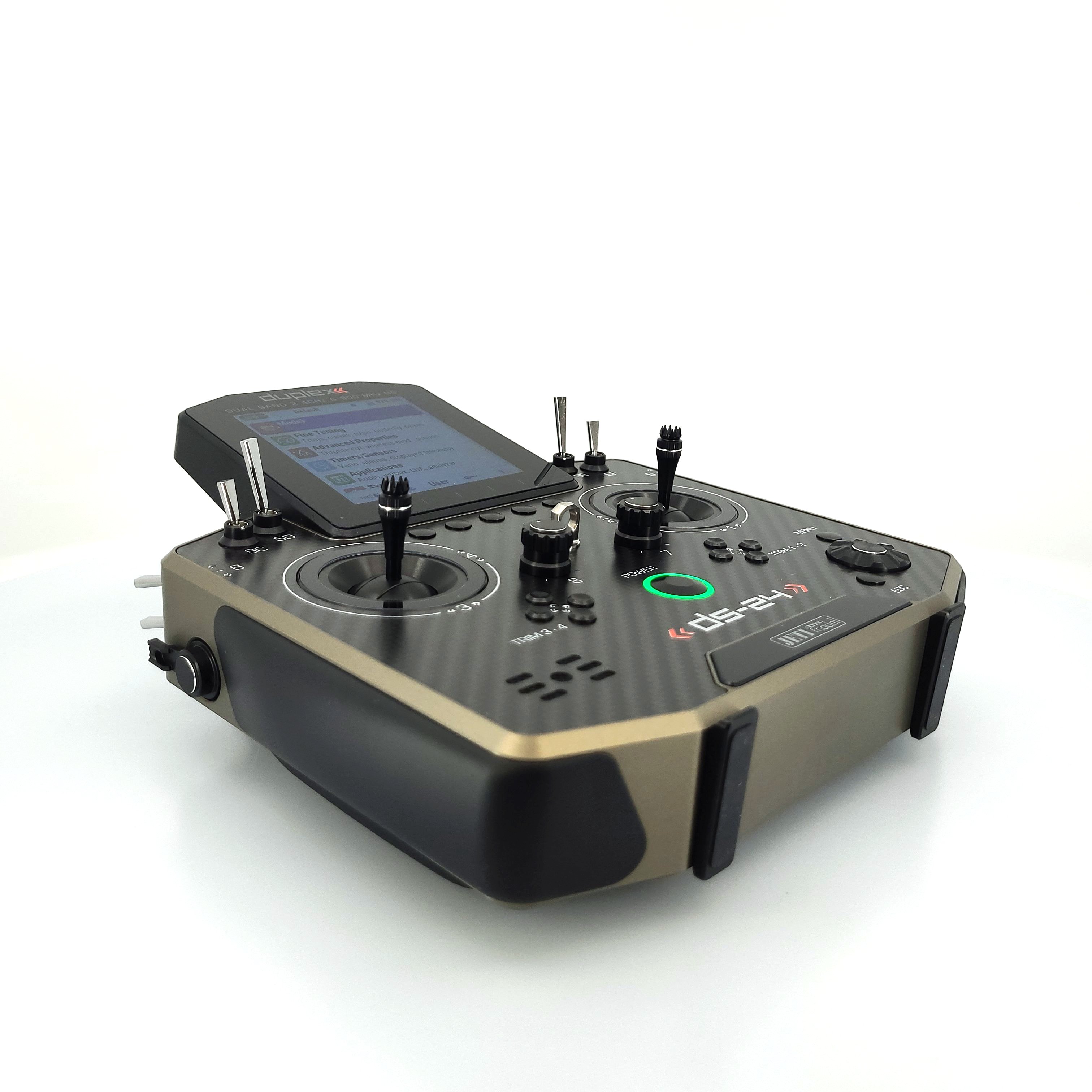

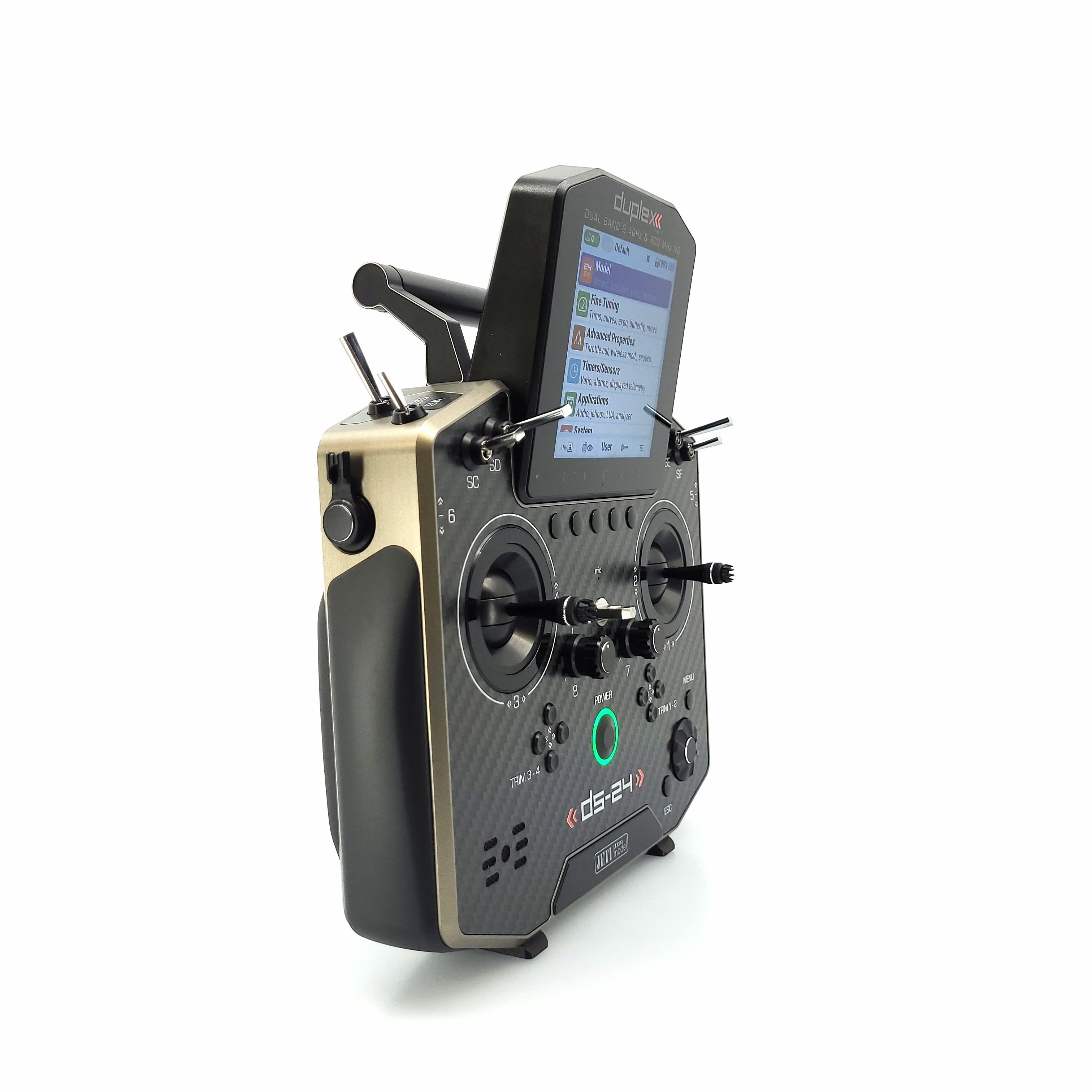

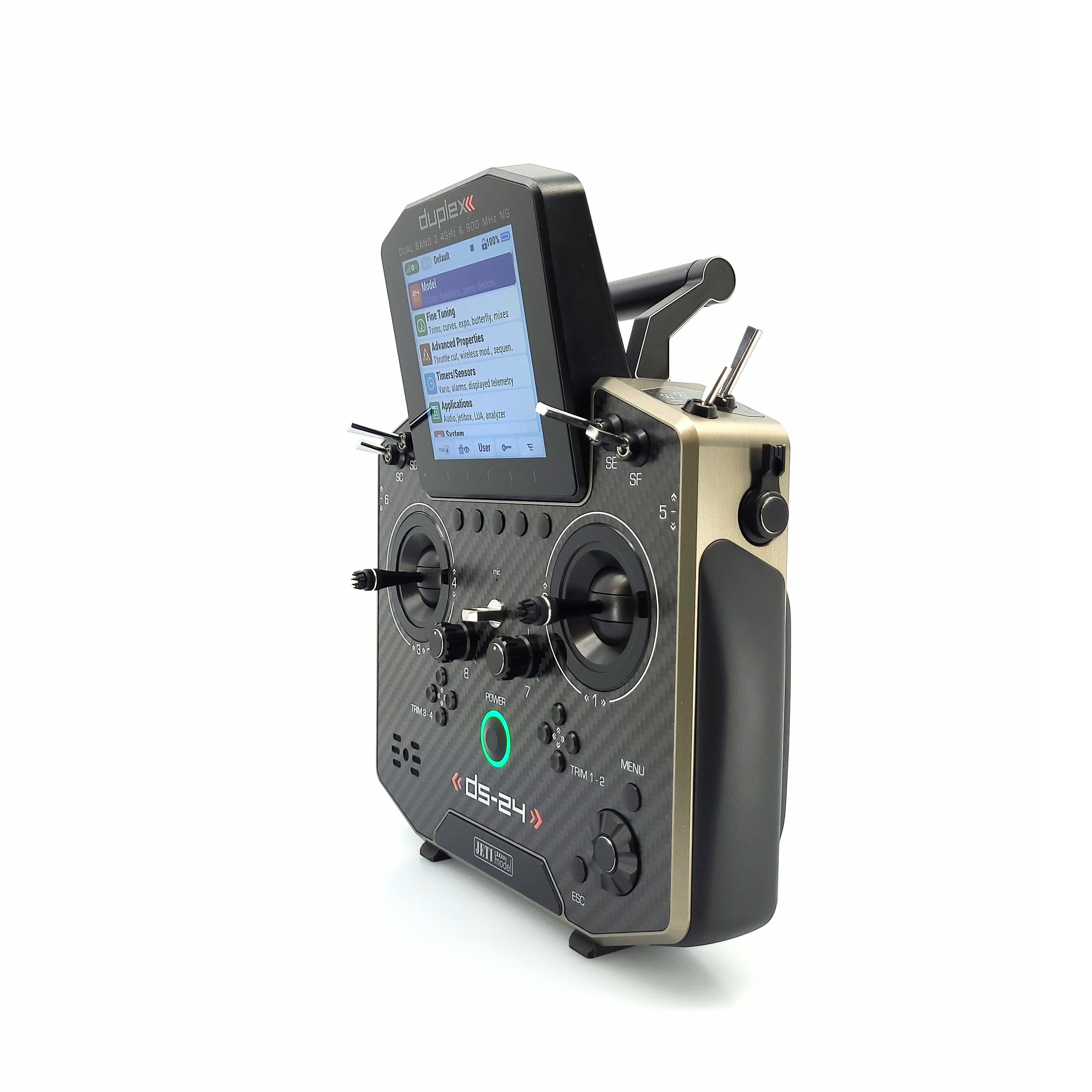

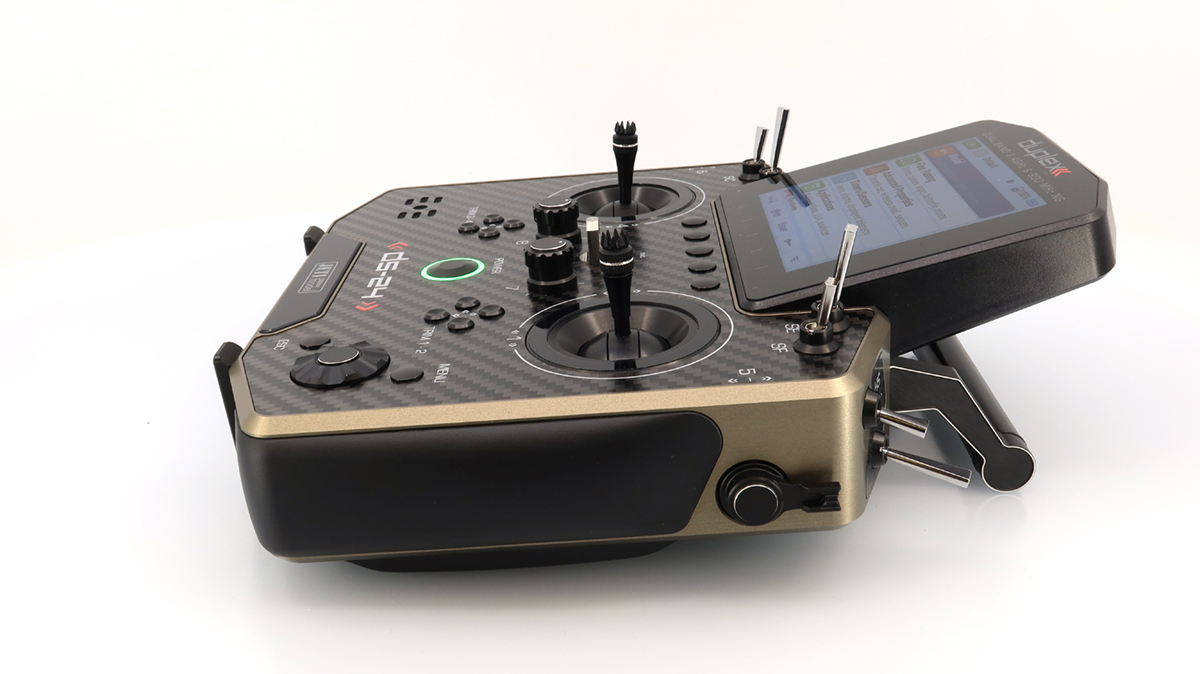

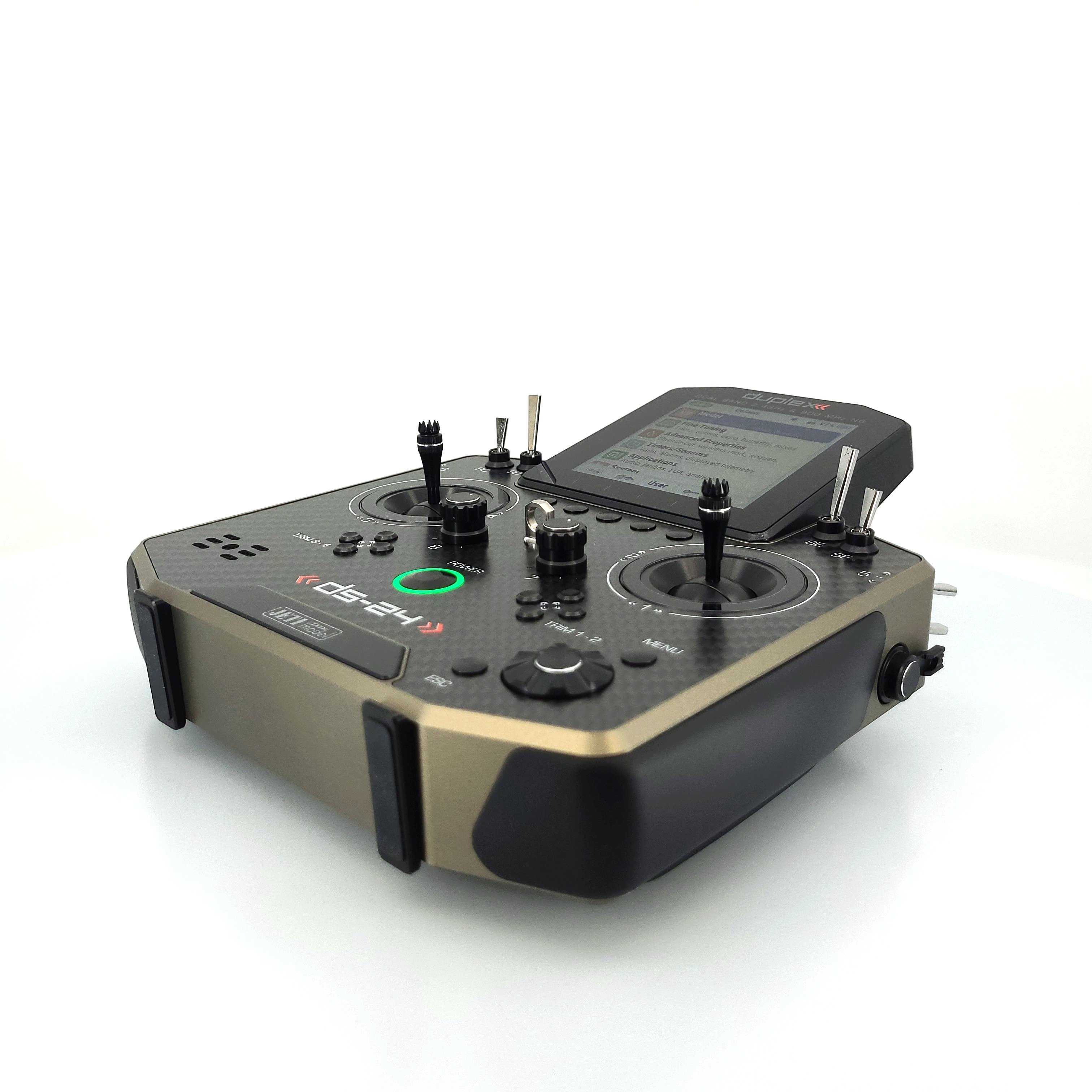

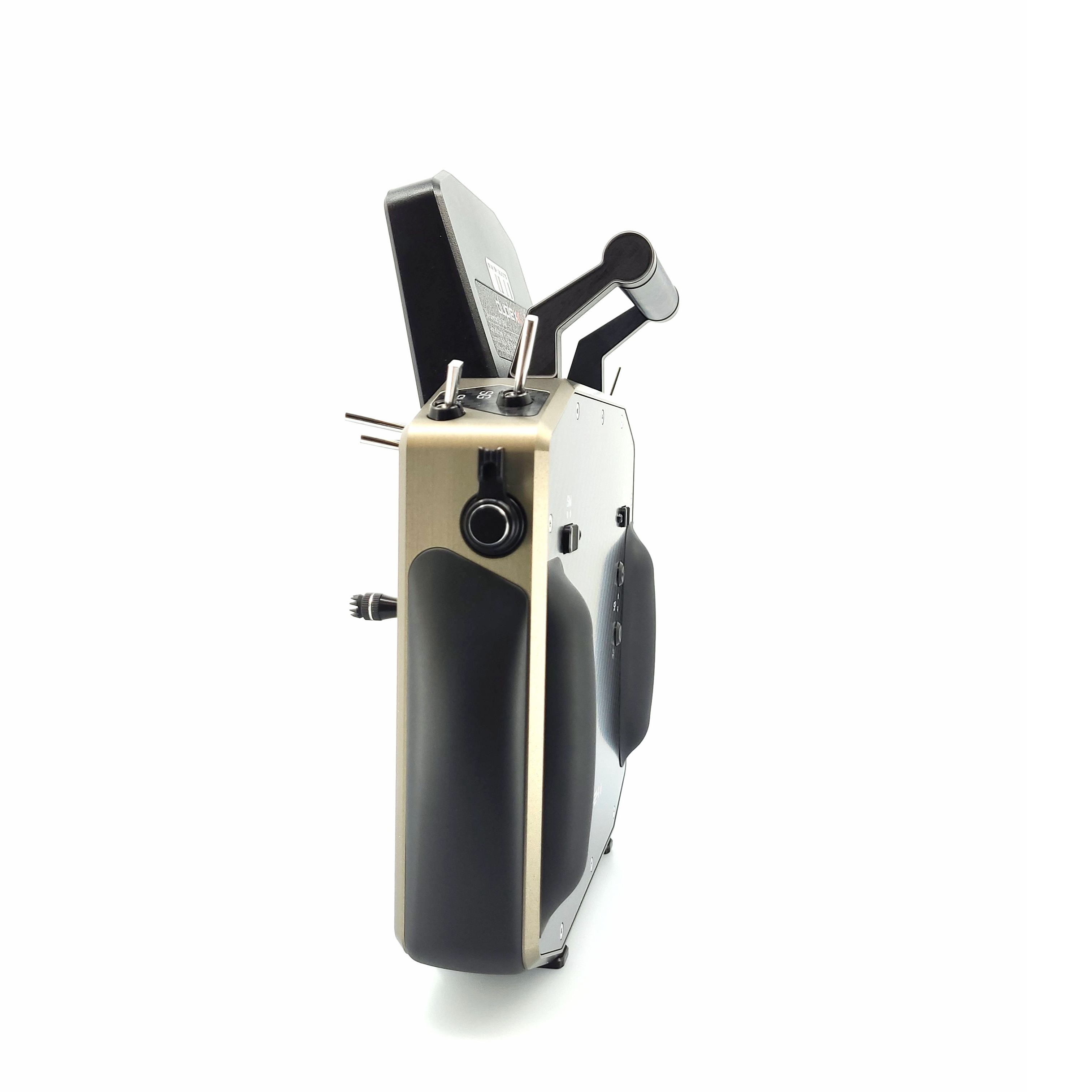

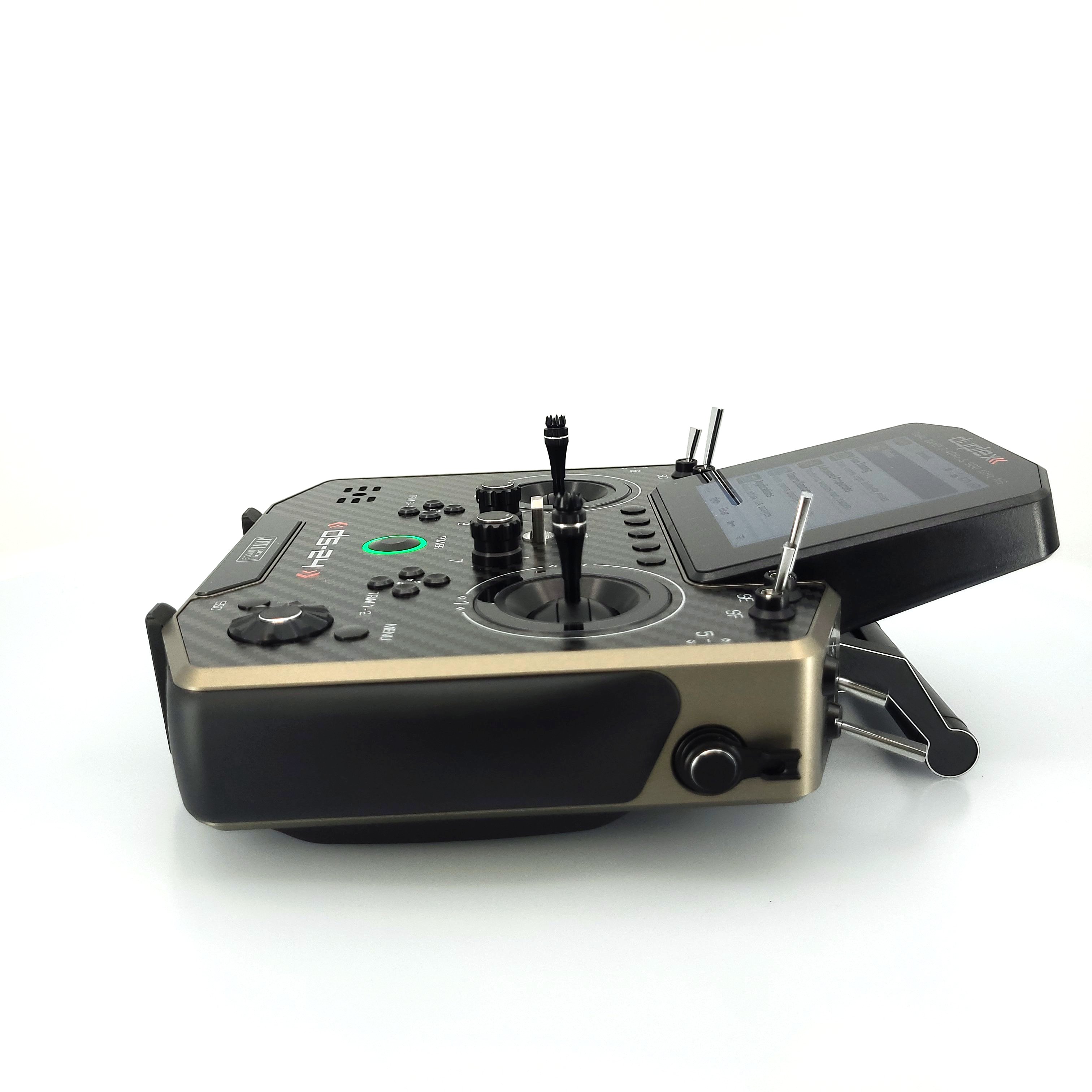

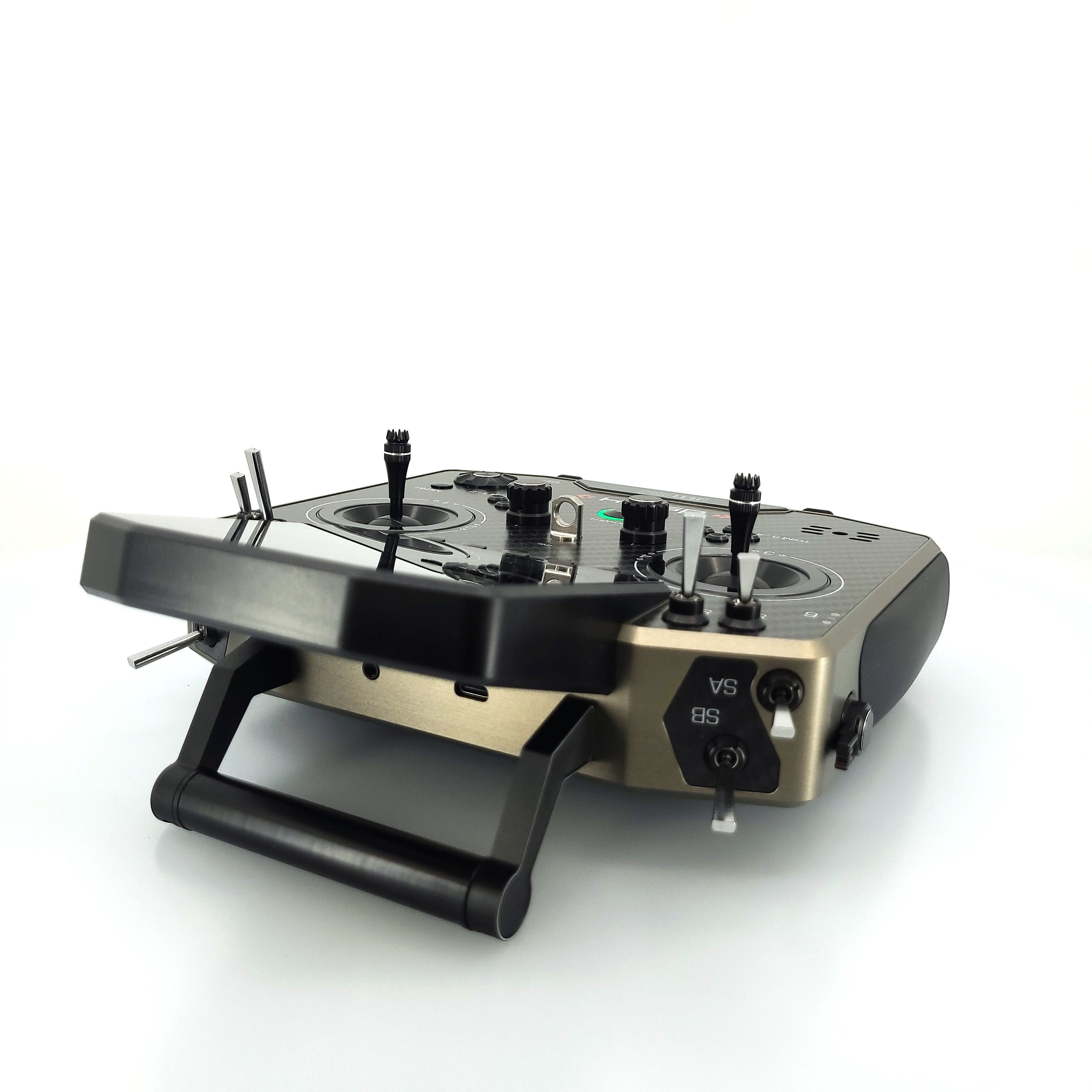

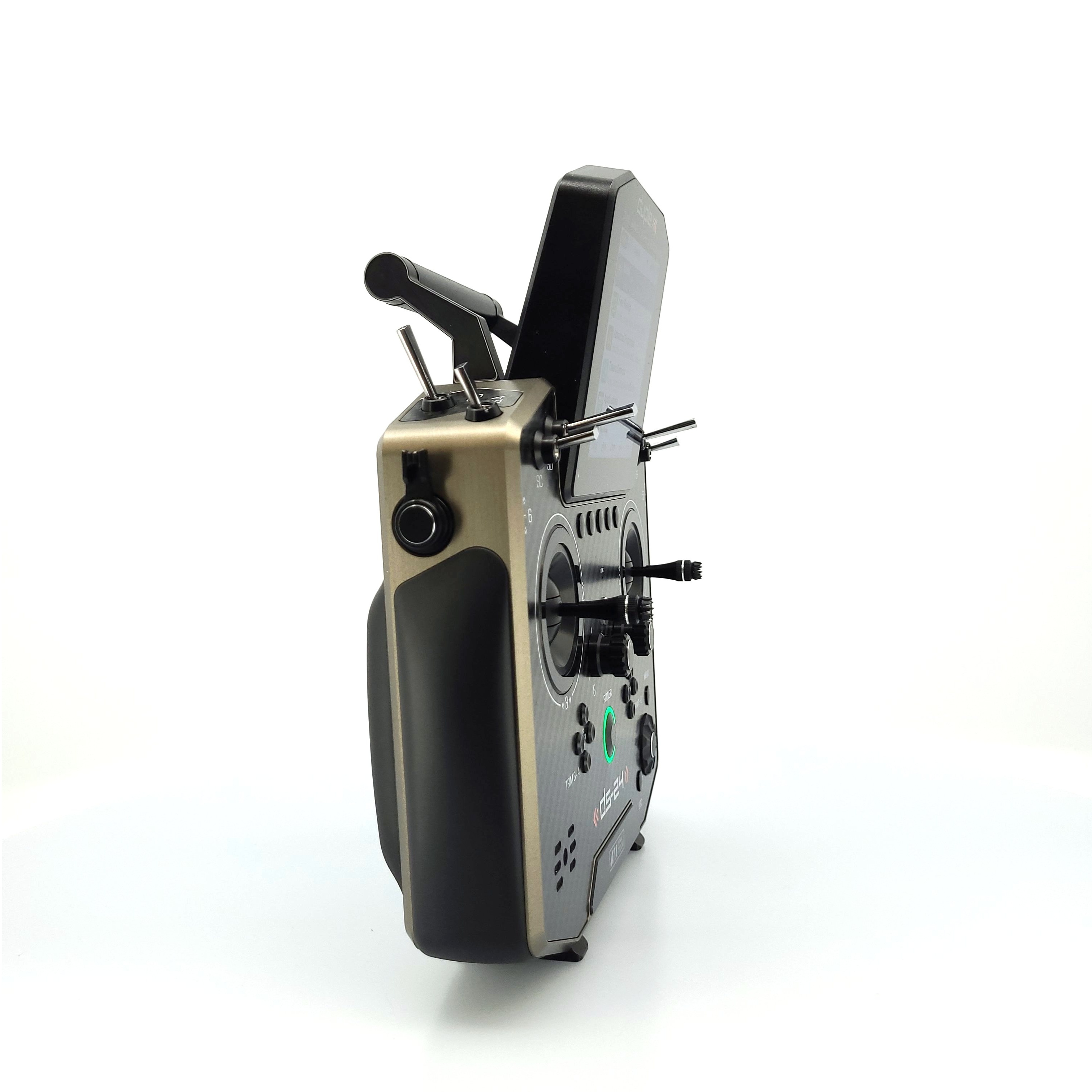

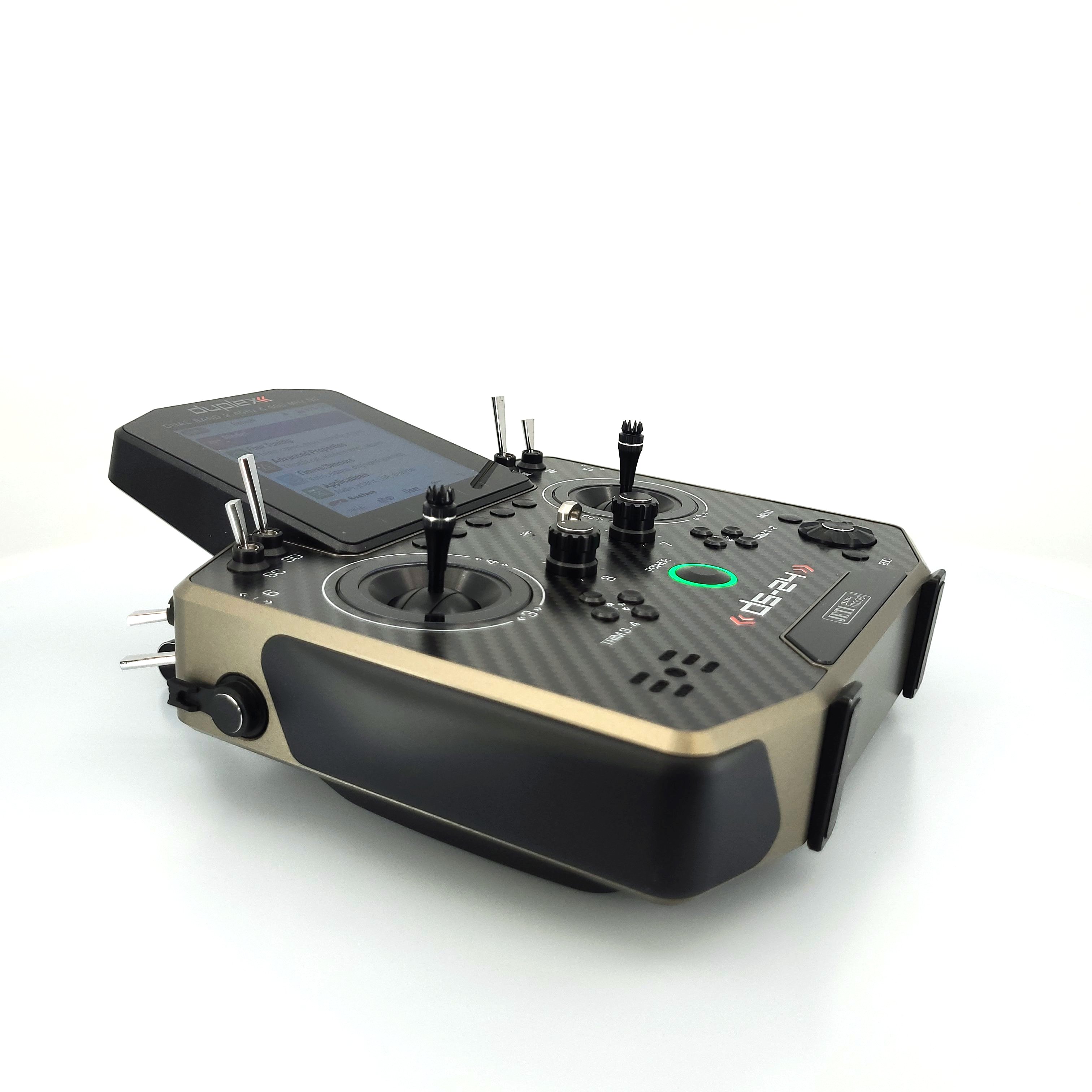

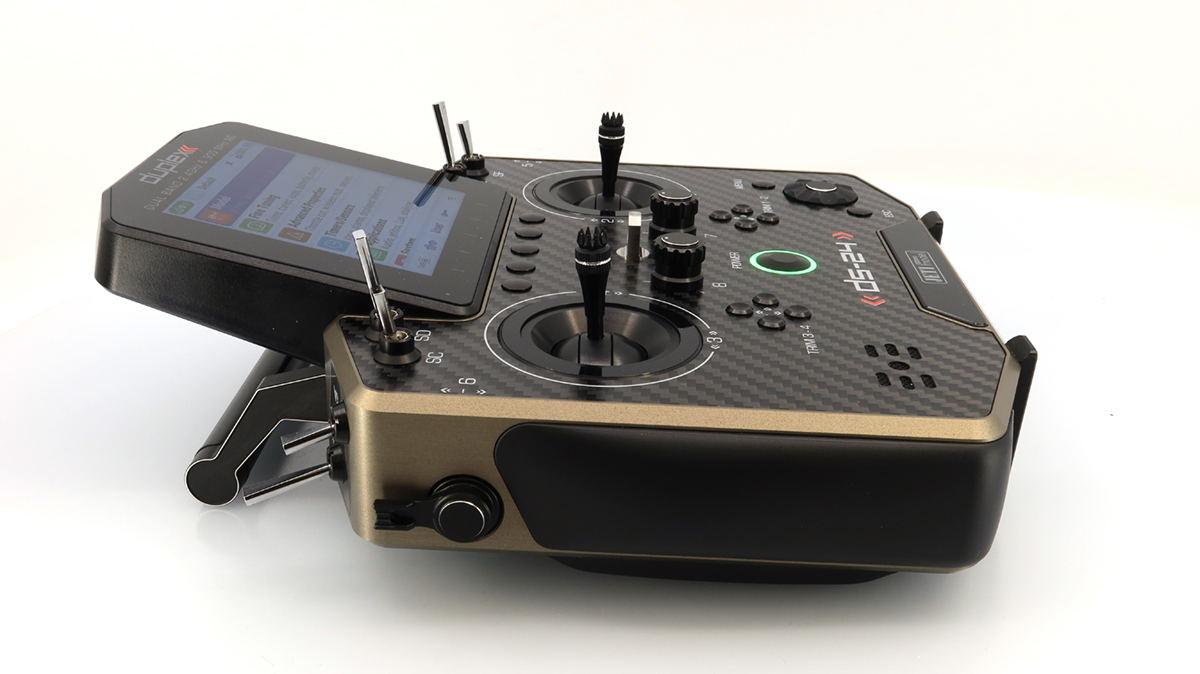

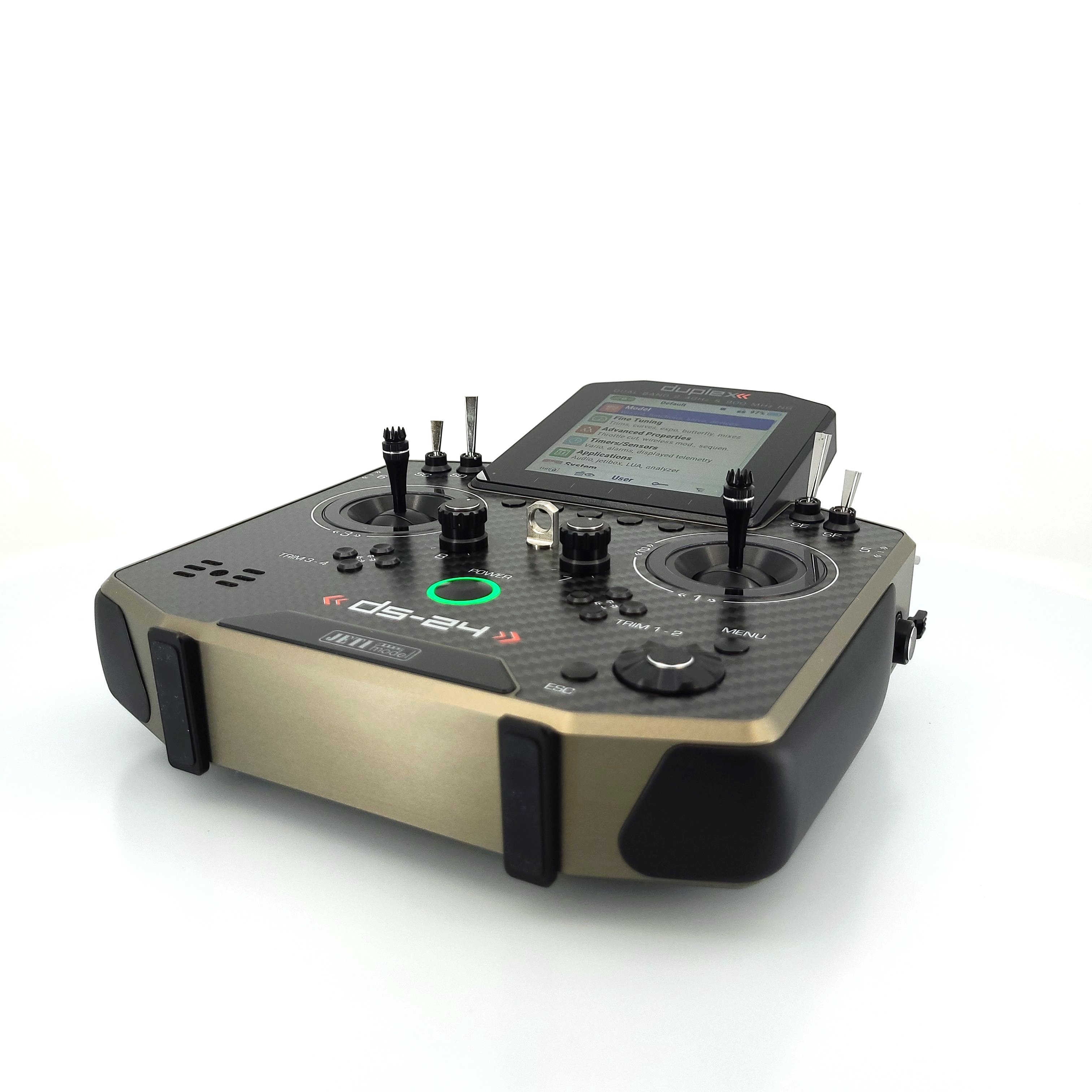

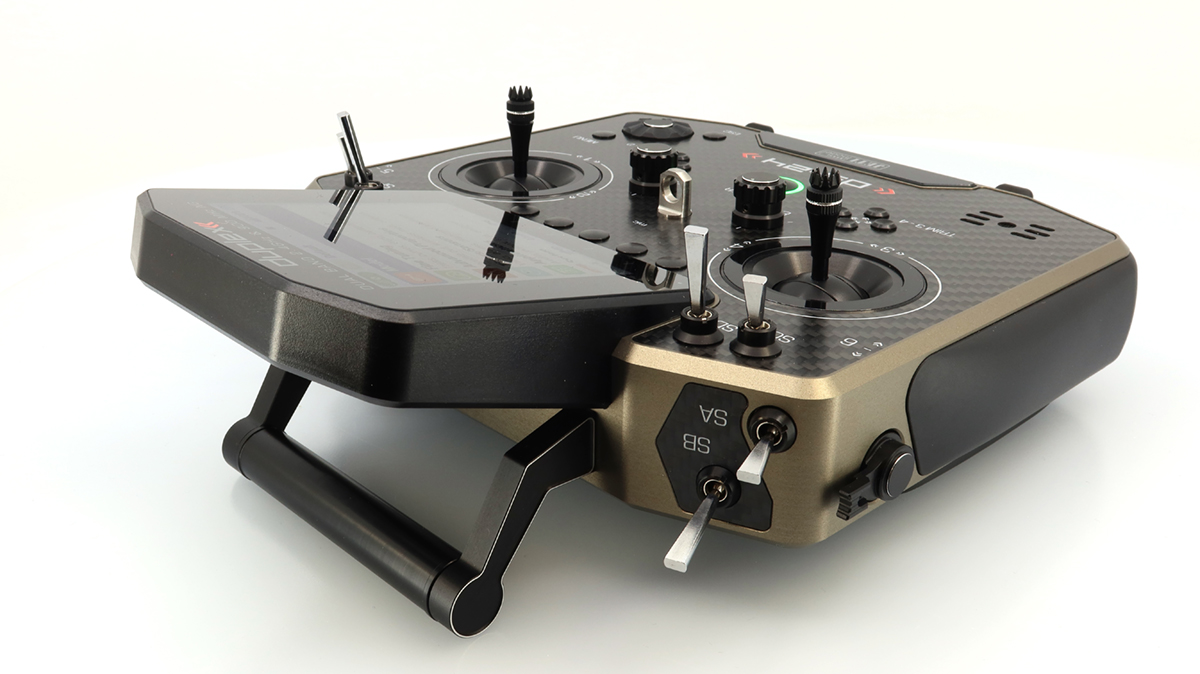

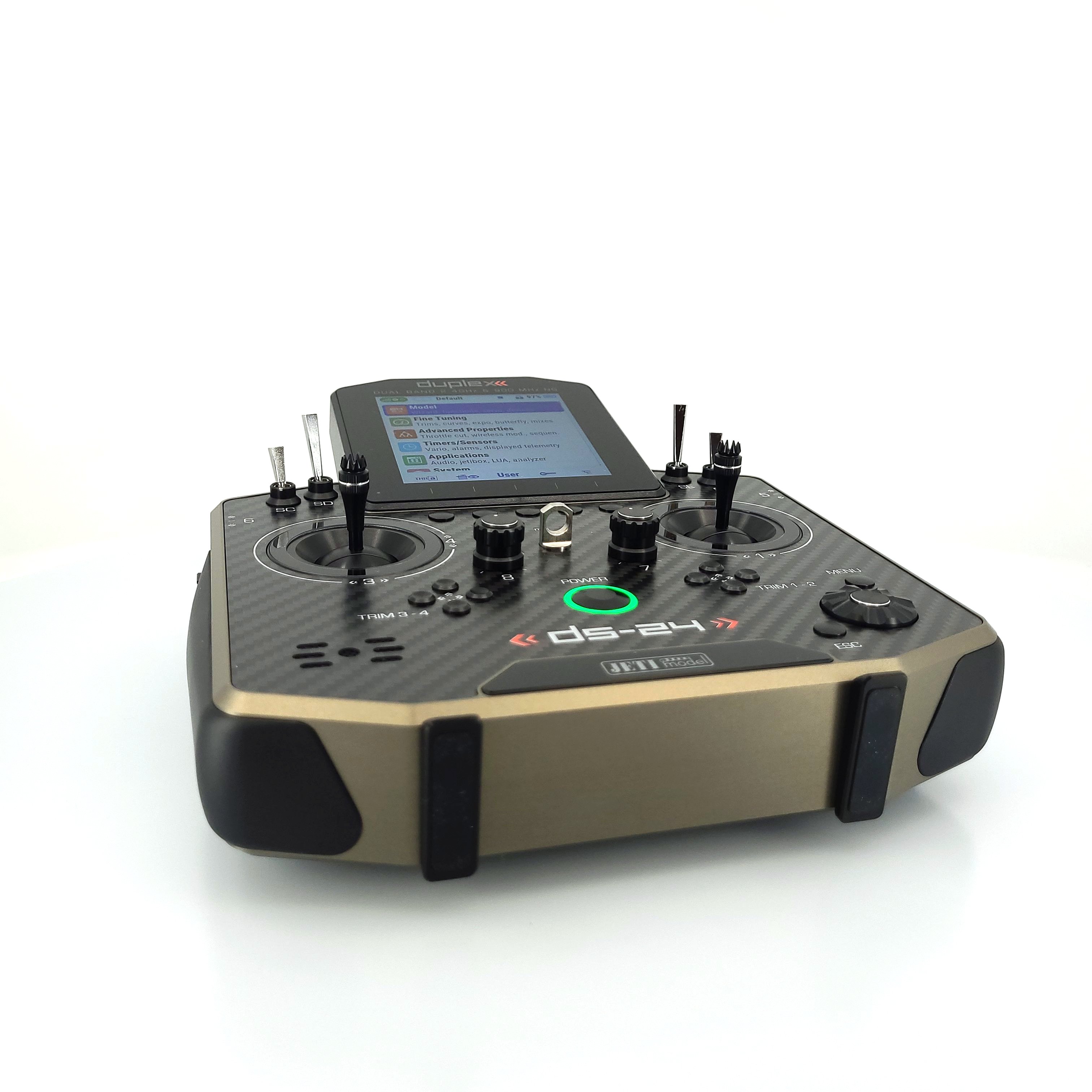

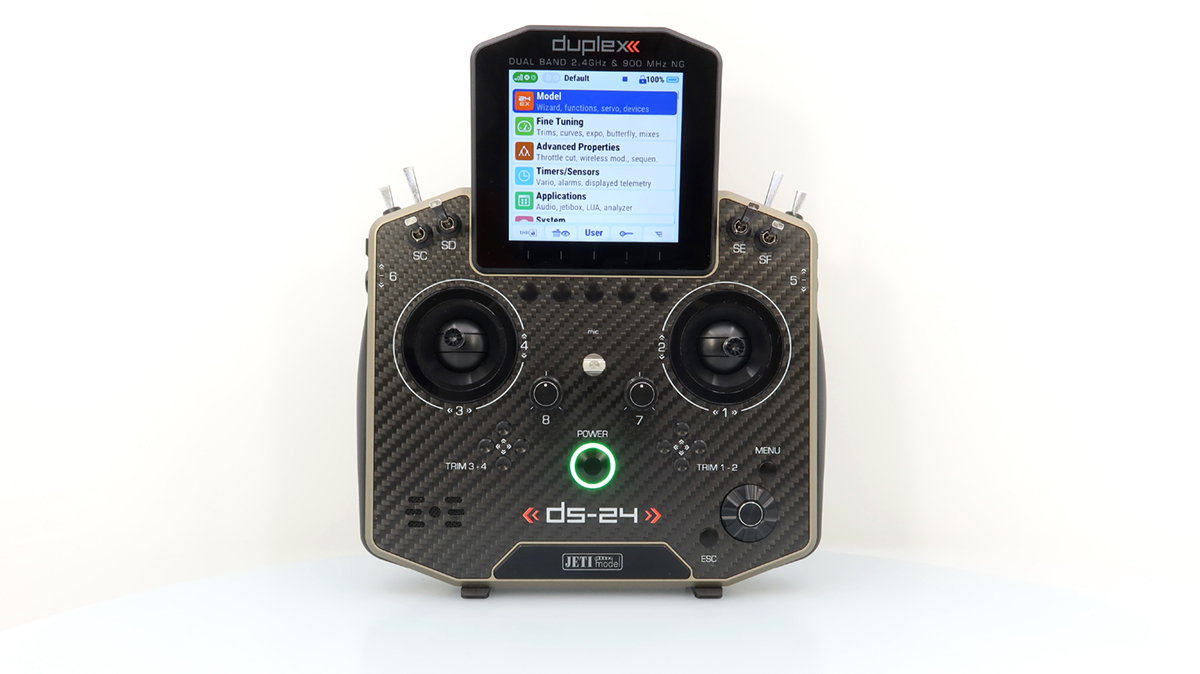

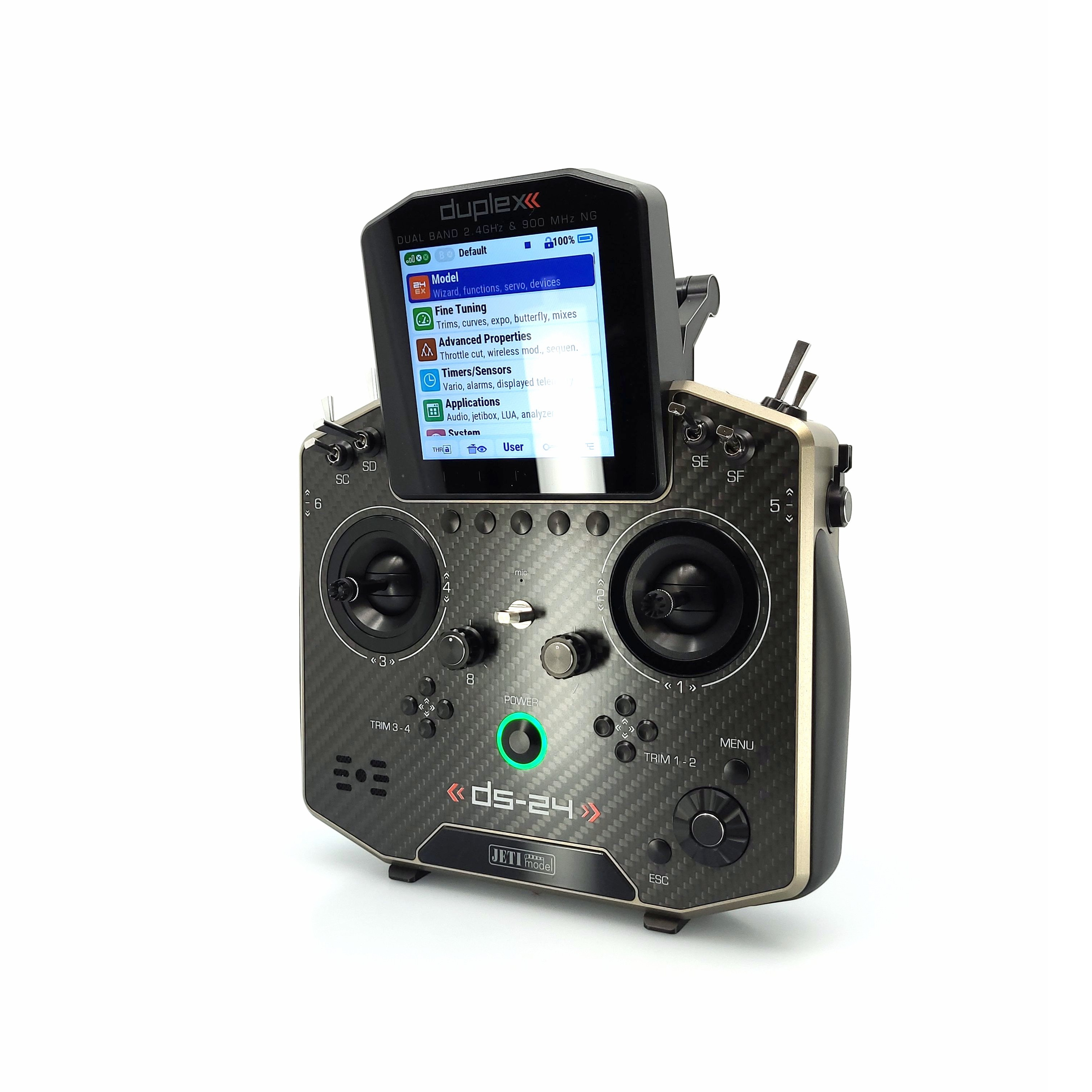

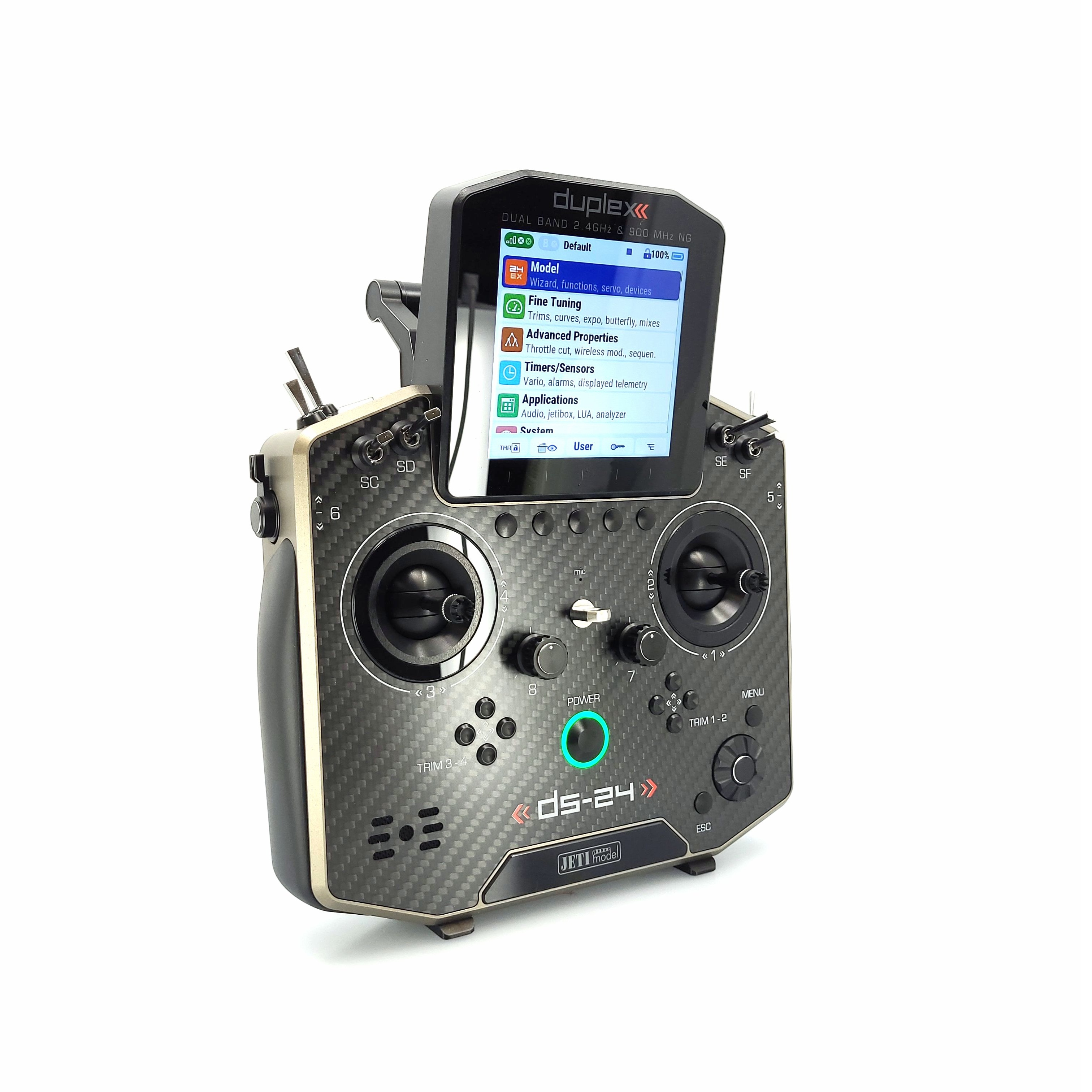

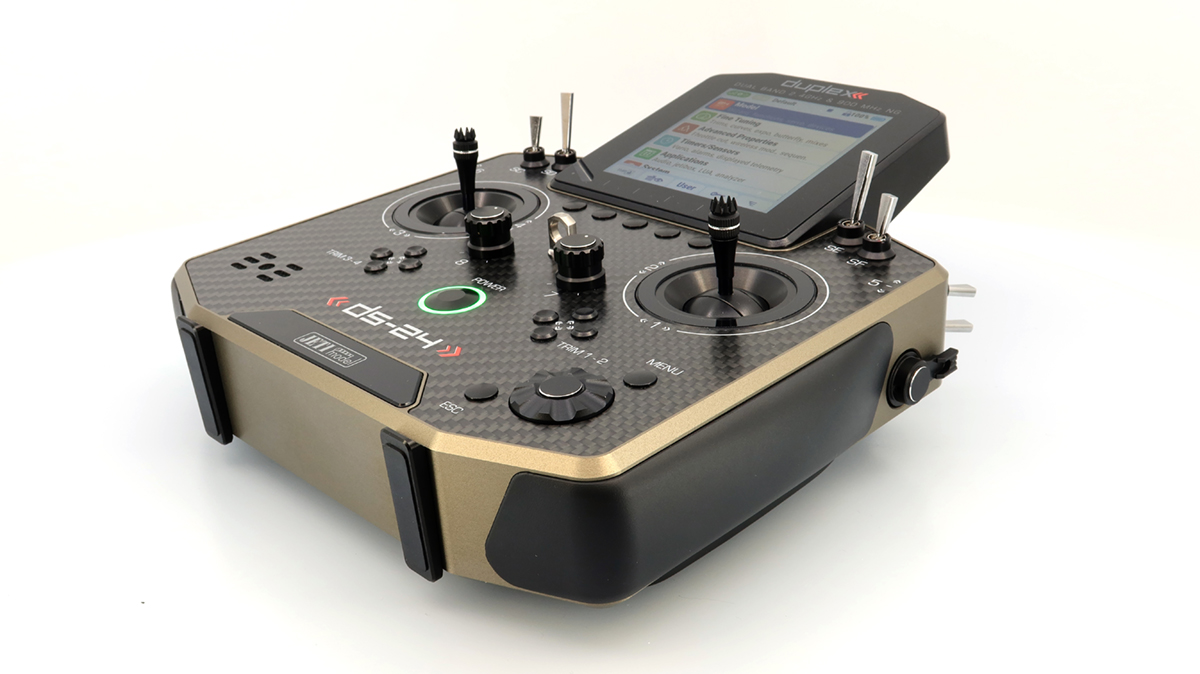

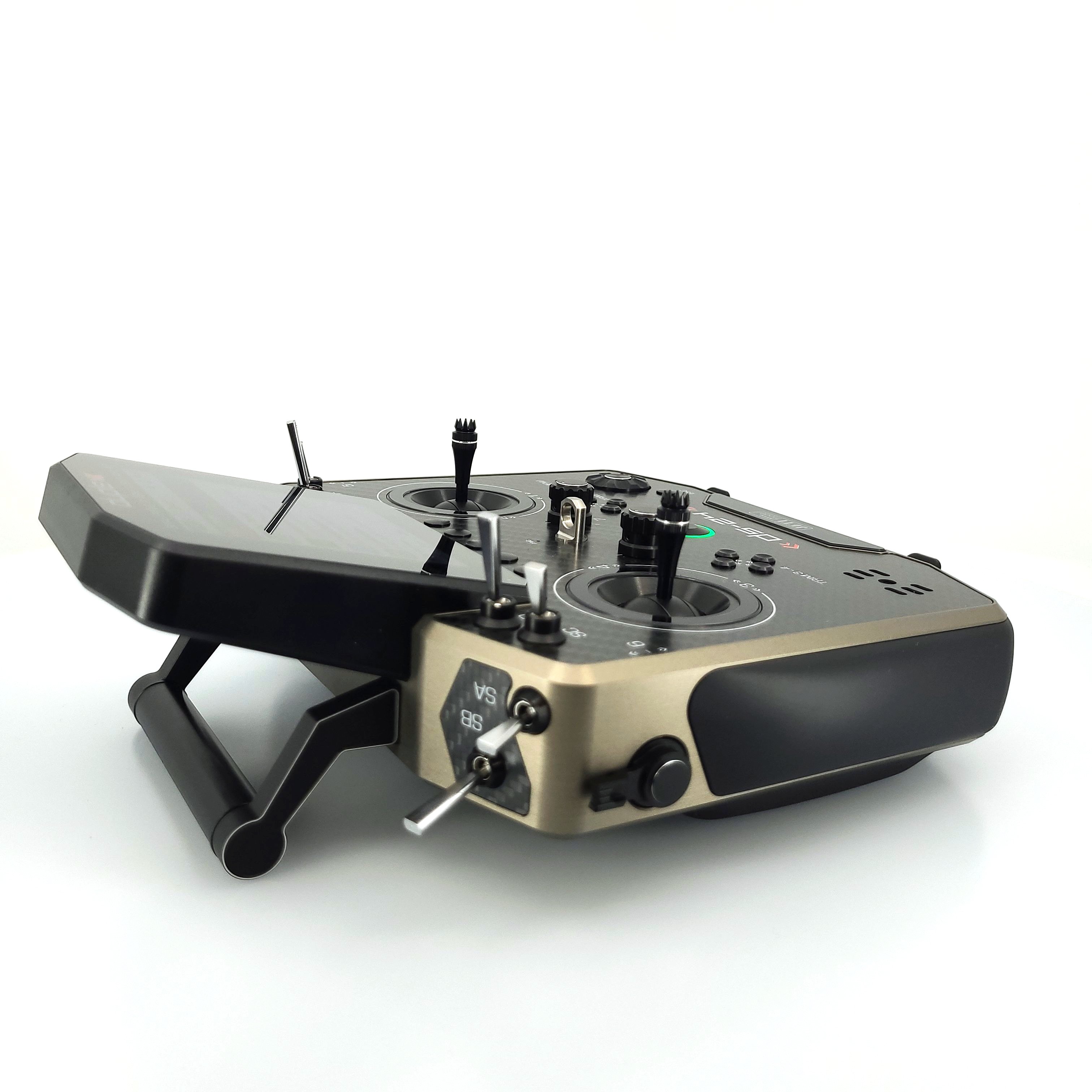

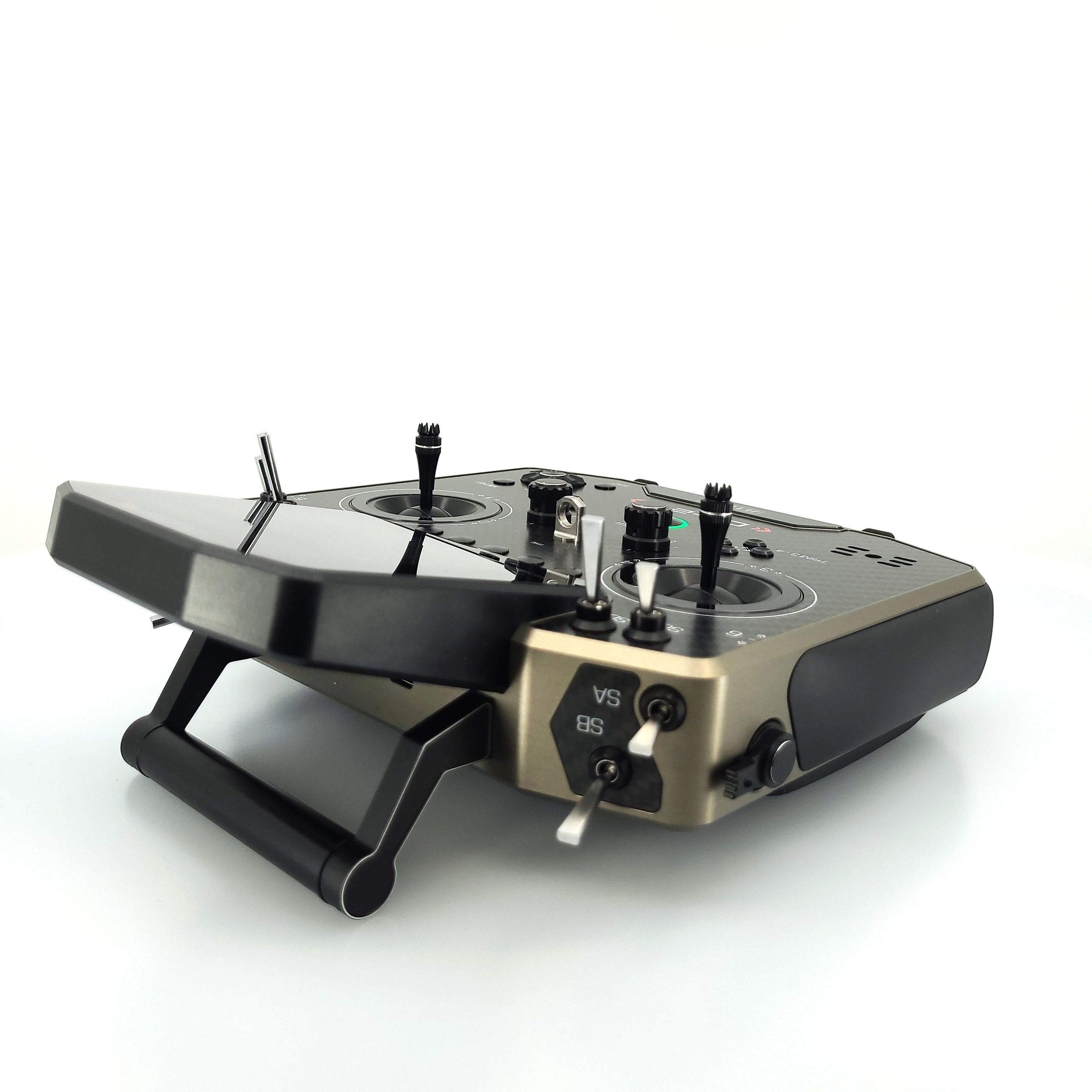

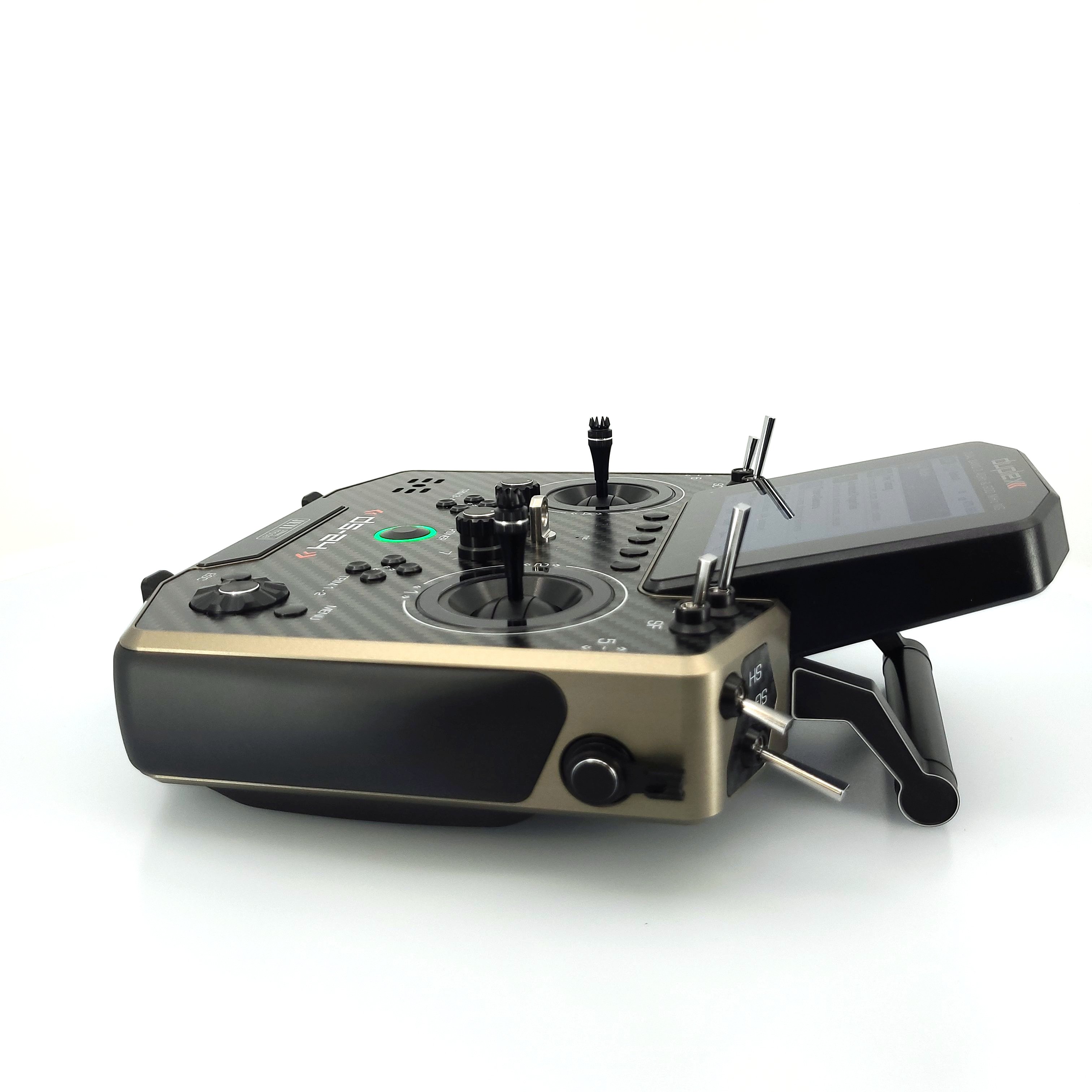

Duplex DS-24 II - Carbon Line Bronze anodized AS

Description

DS-24II


The second generation of the DS-24II transmitter series features a timeless design with a redesigned and lighter frame for enhanced comfort. It now supports Bluetooth connectivity with smartphones and includes new stick controls with front side adjustments.

Powered by a high-performance processor with a large memory delivers high-quality texture settings and higher resolution on a completely new and larger display. The improved graphics facilitate better navigation within the menu.


The transmitter has a new graphical interface JUi2

Logo JUi2











Main features:

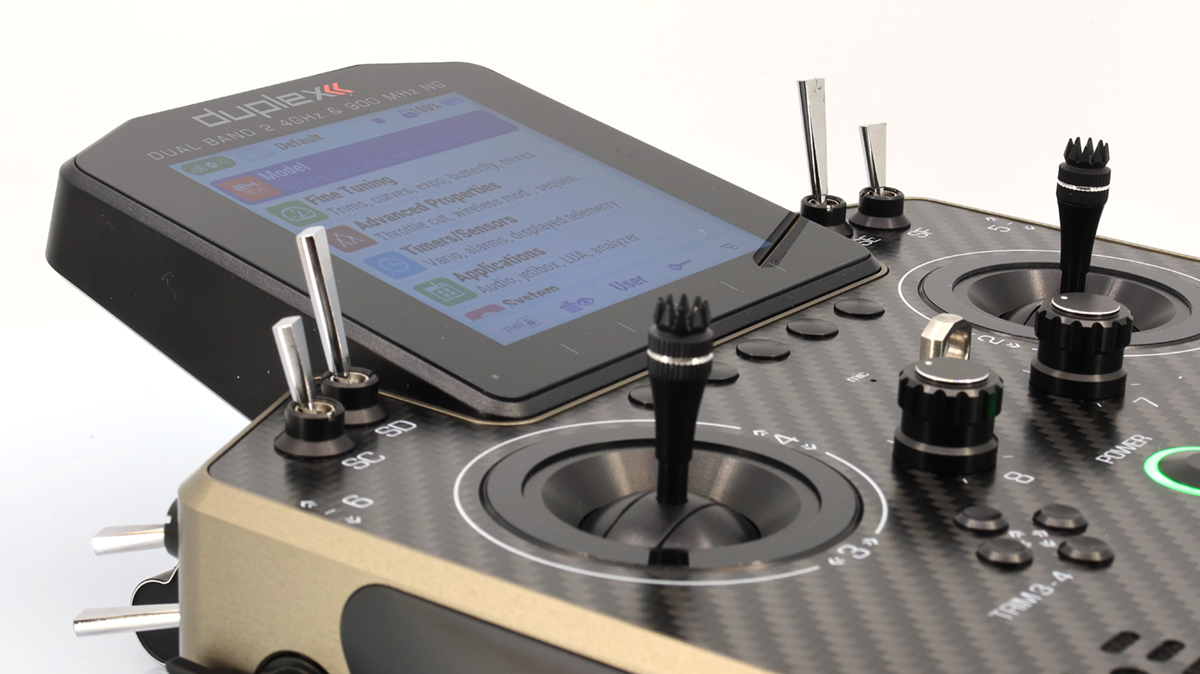

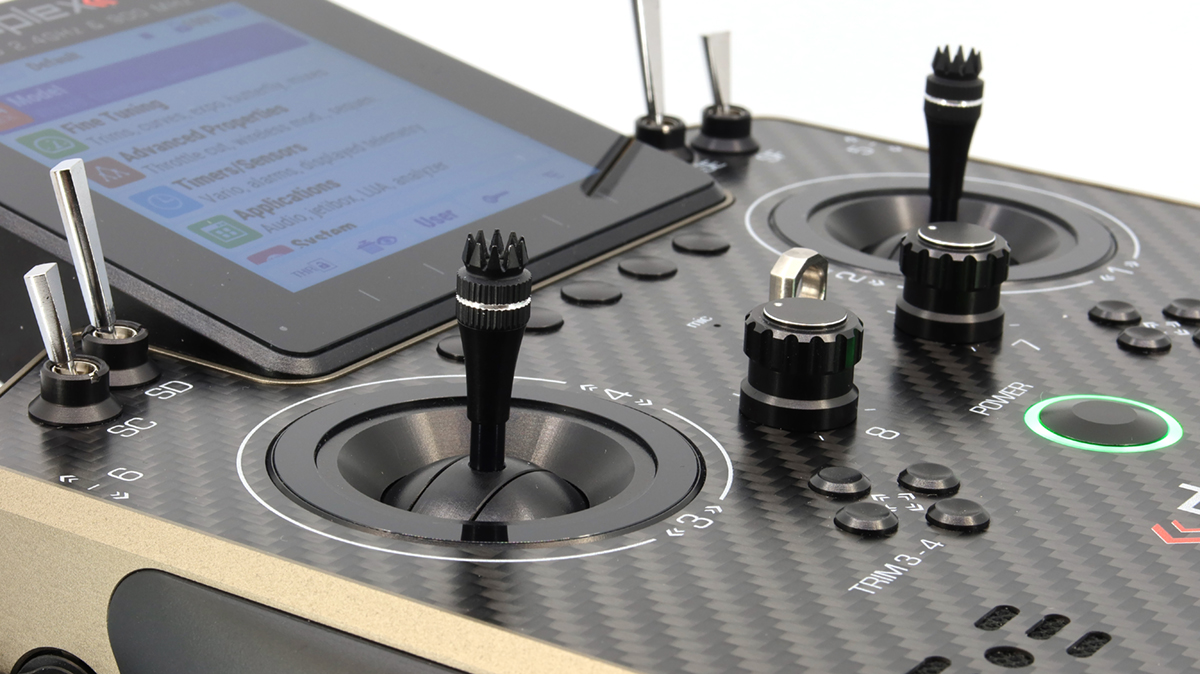

• New stick controls with front side adjustments

Gimbal


• Simple replacement of the front potentiometers with switches
• New, simpler switch replacement system

SW1    SW3   SW4

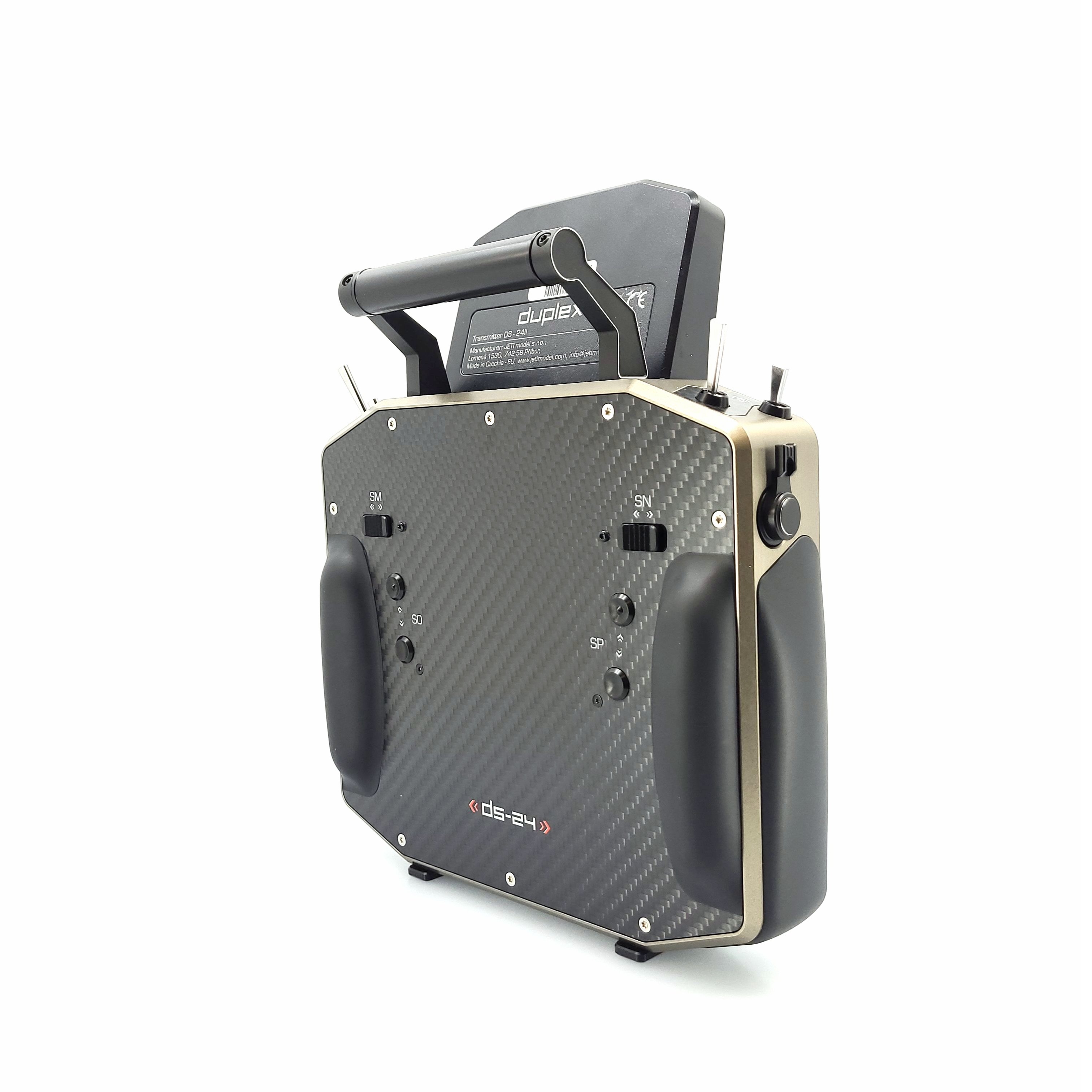

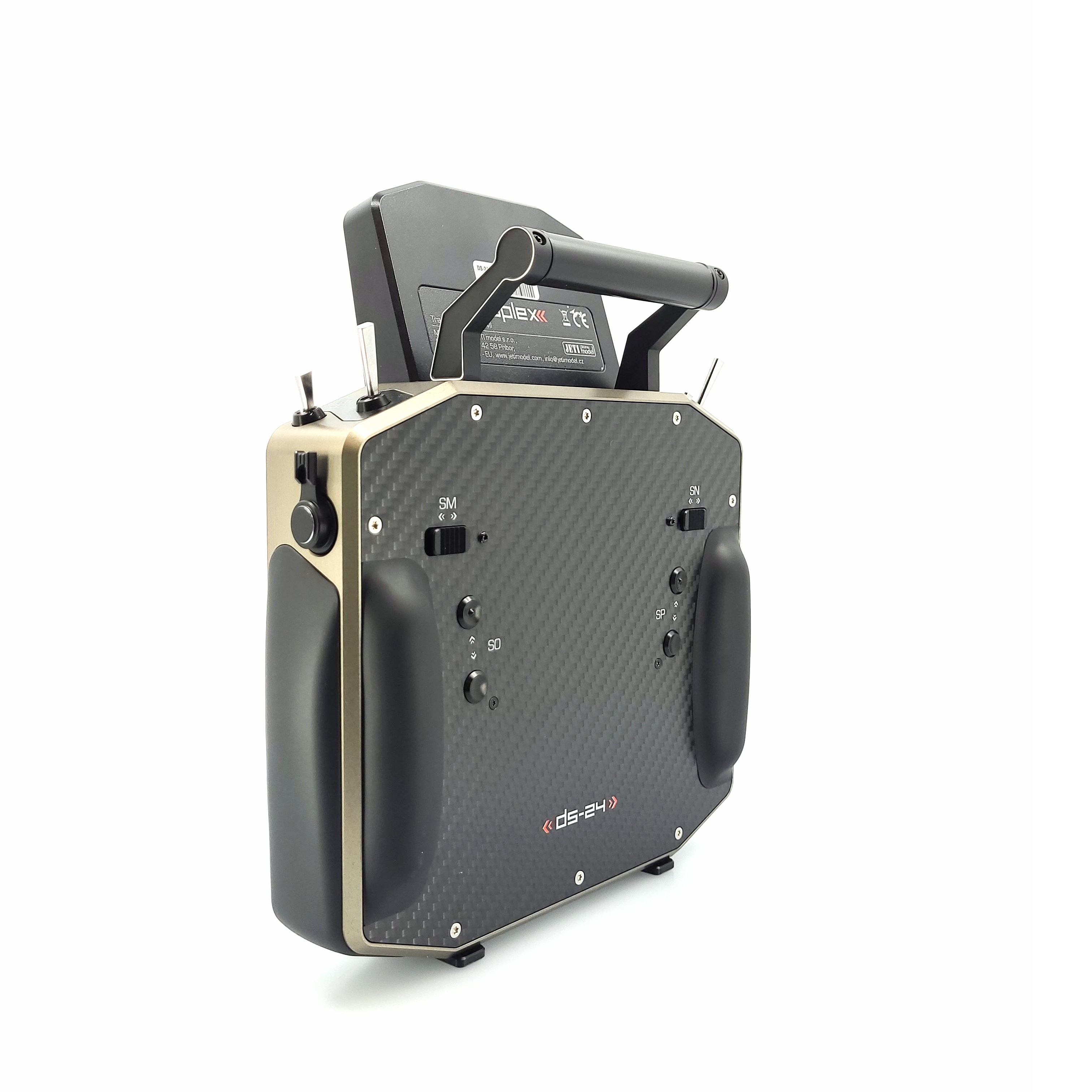

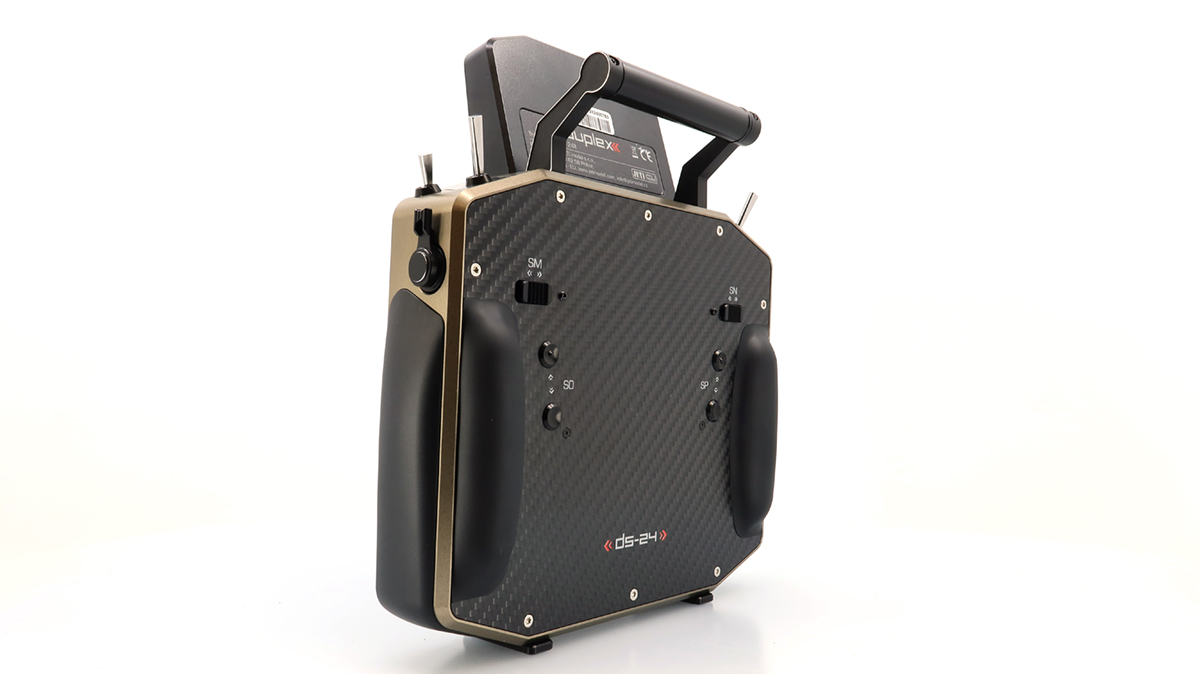

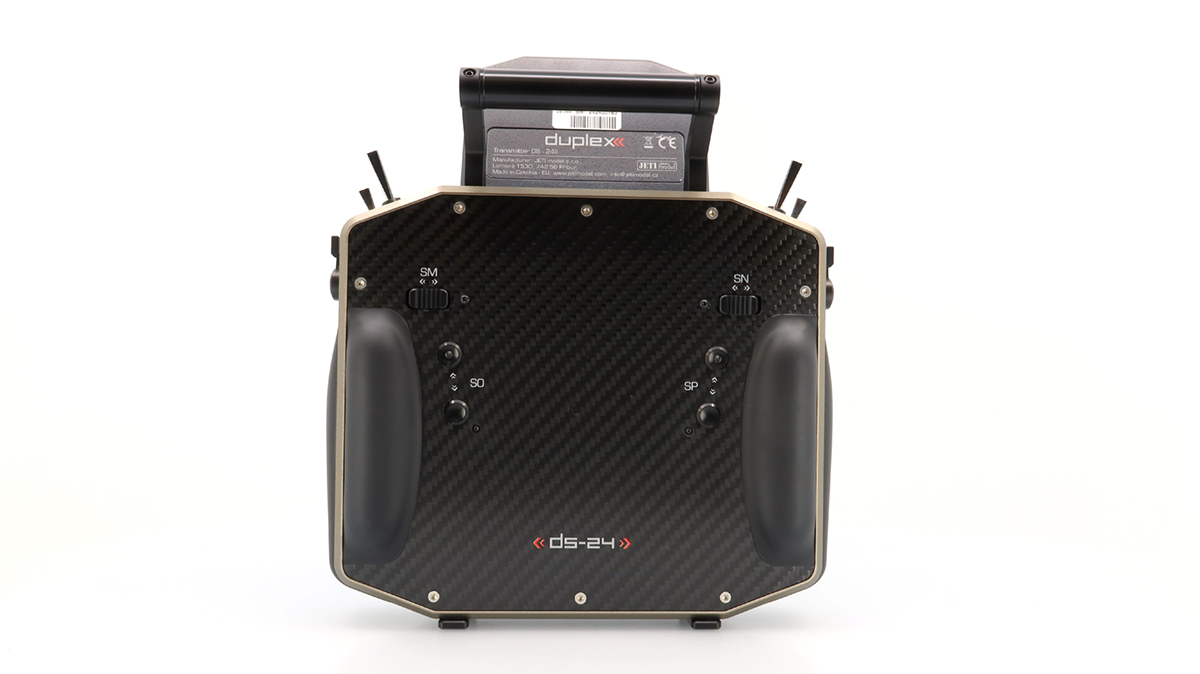

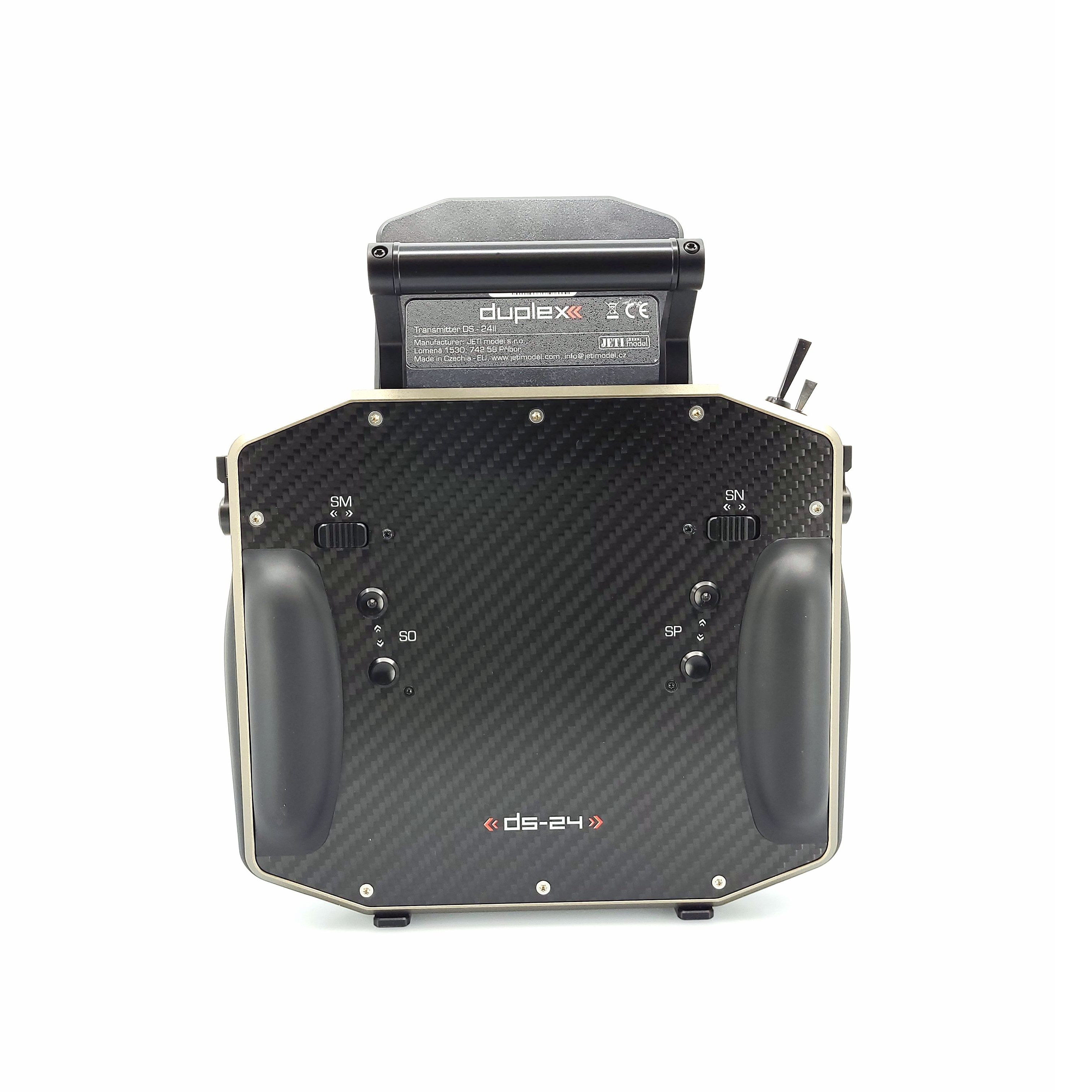

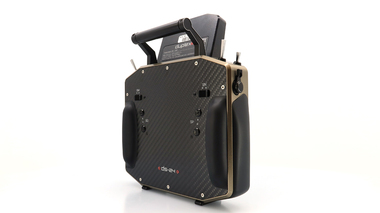

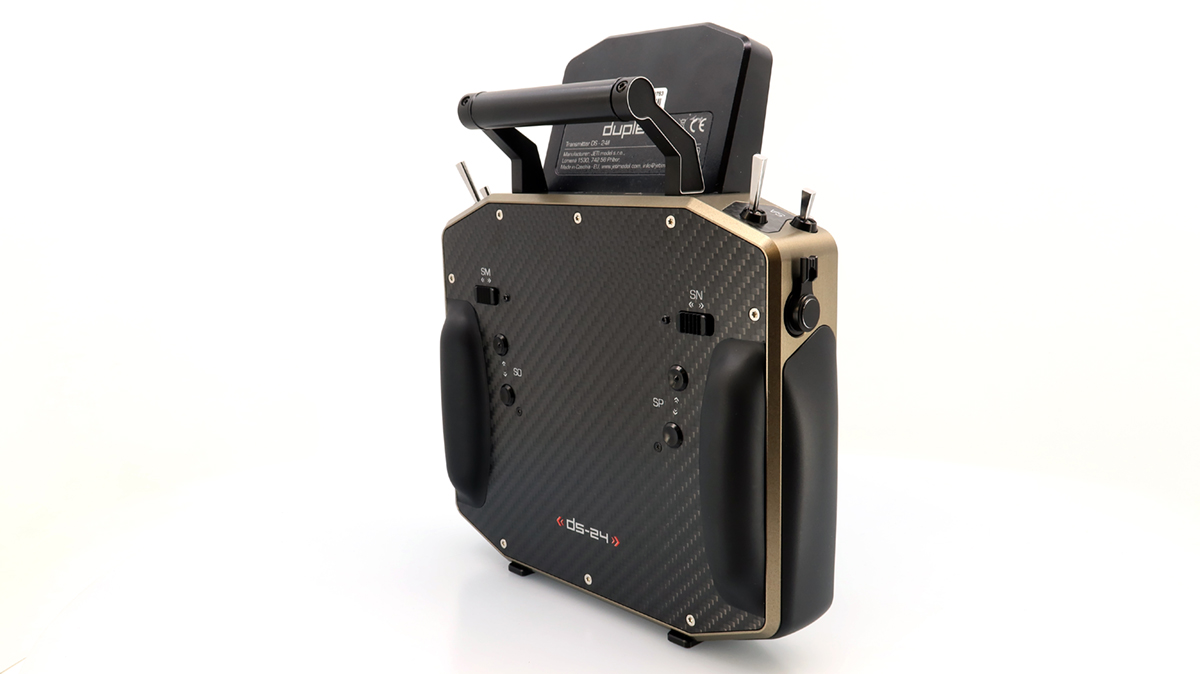

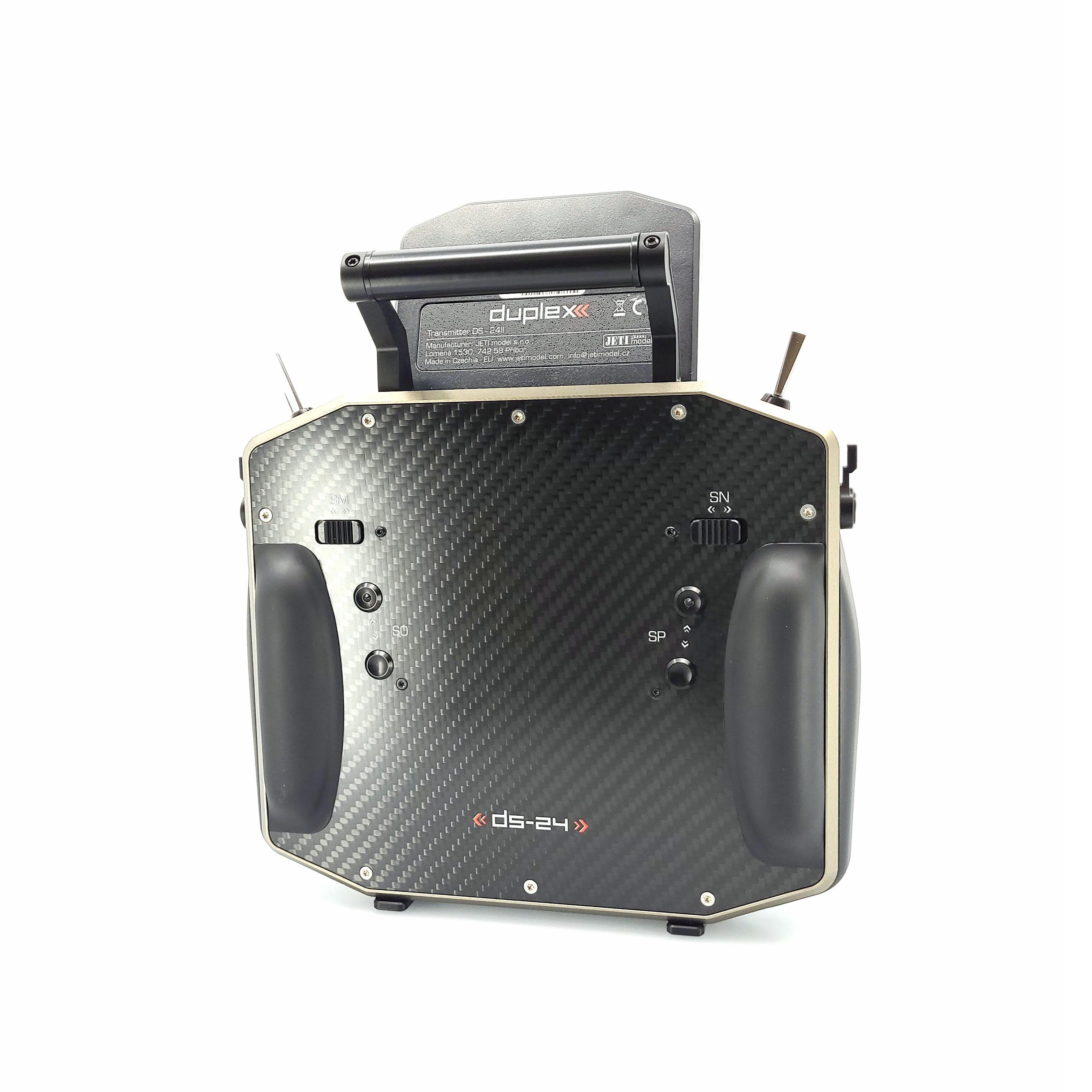

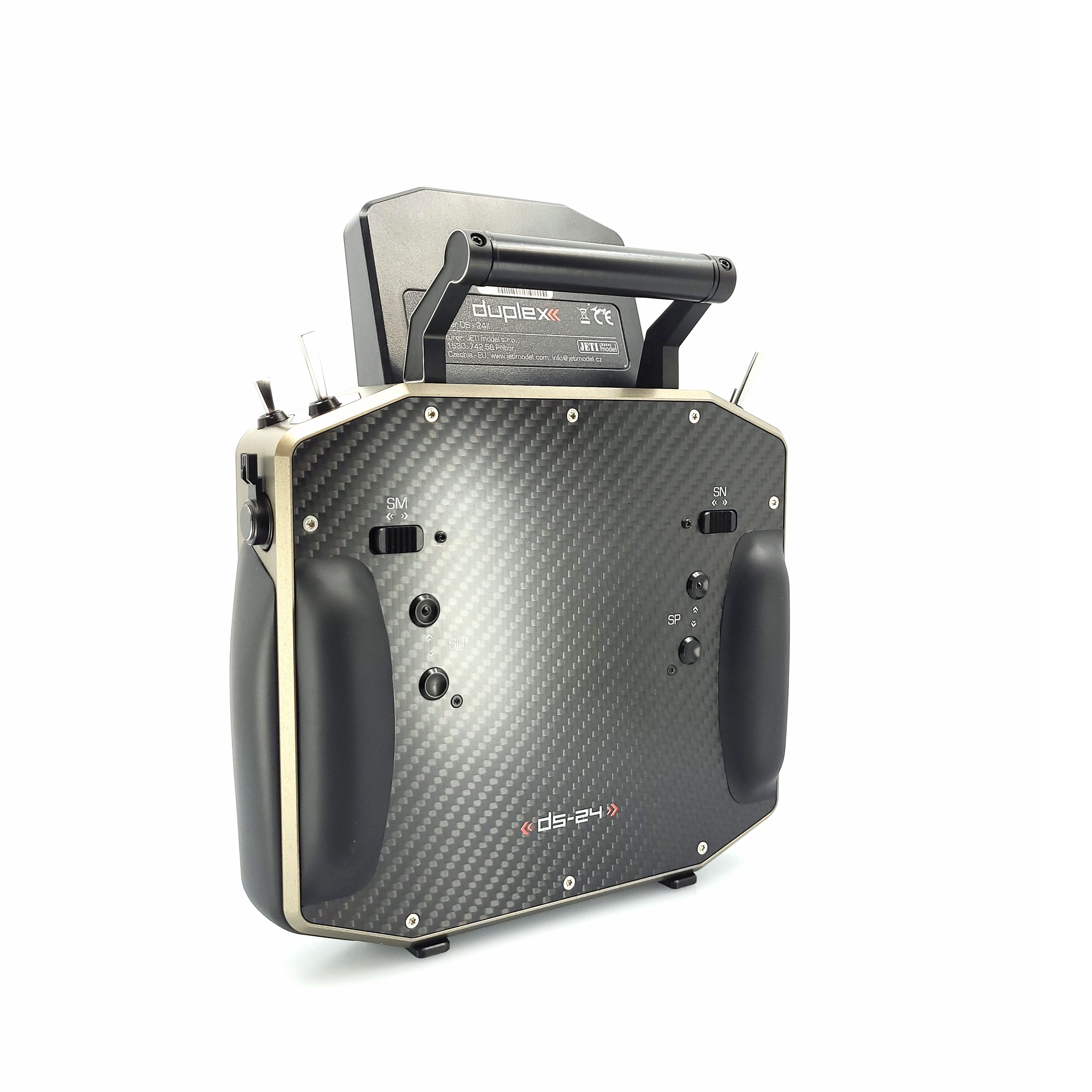

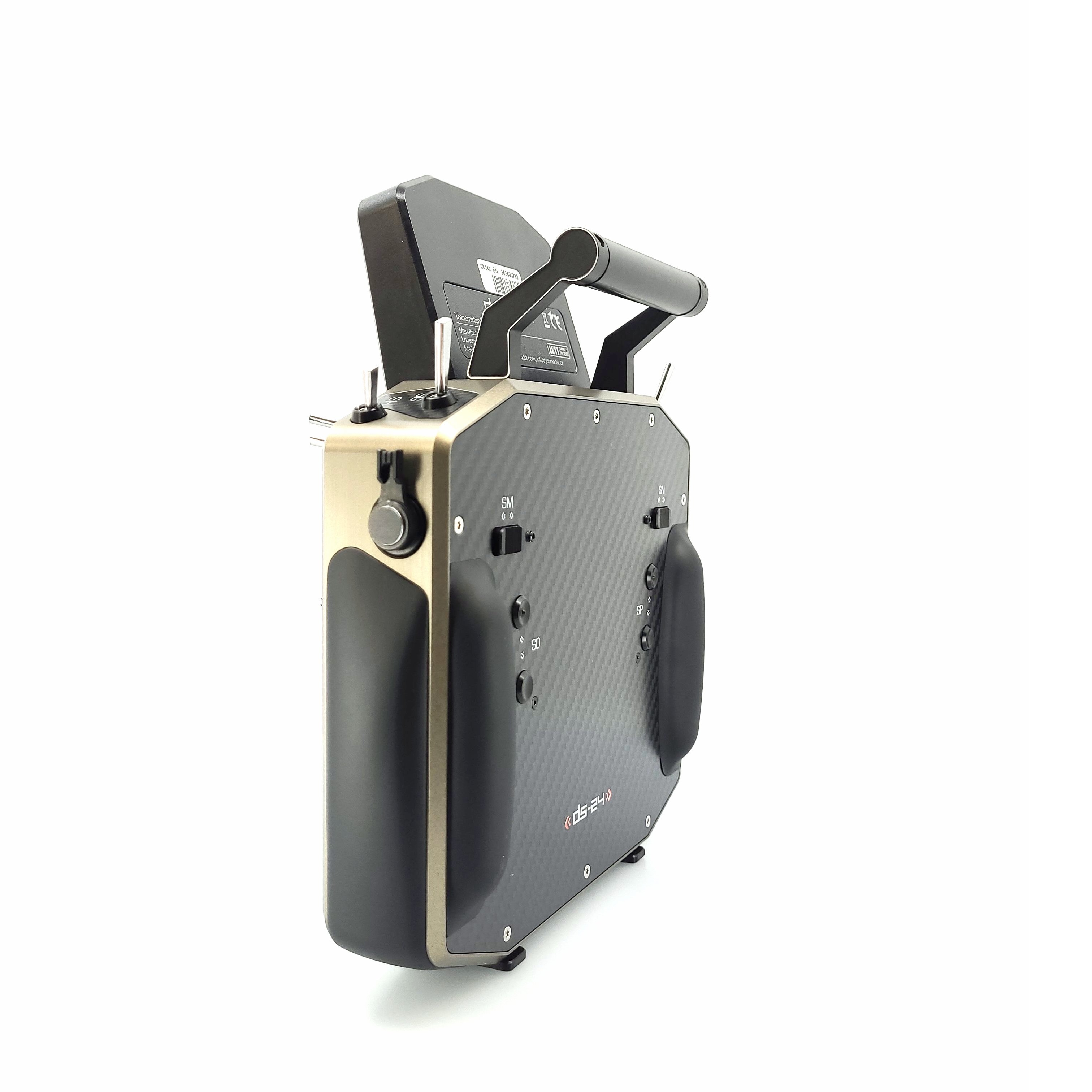

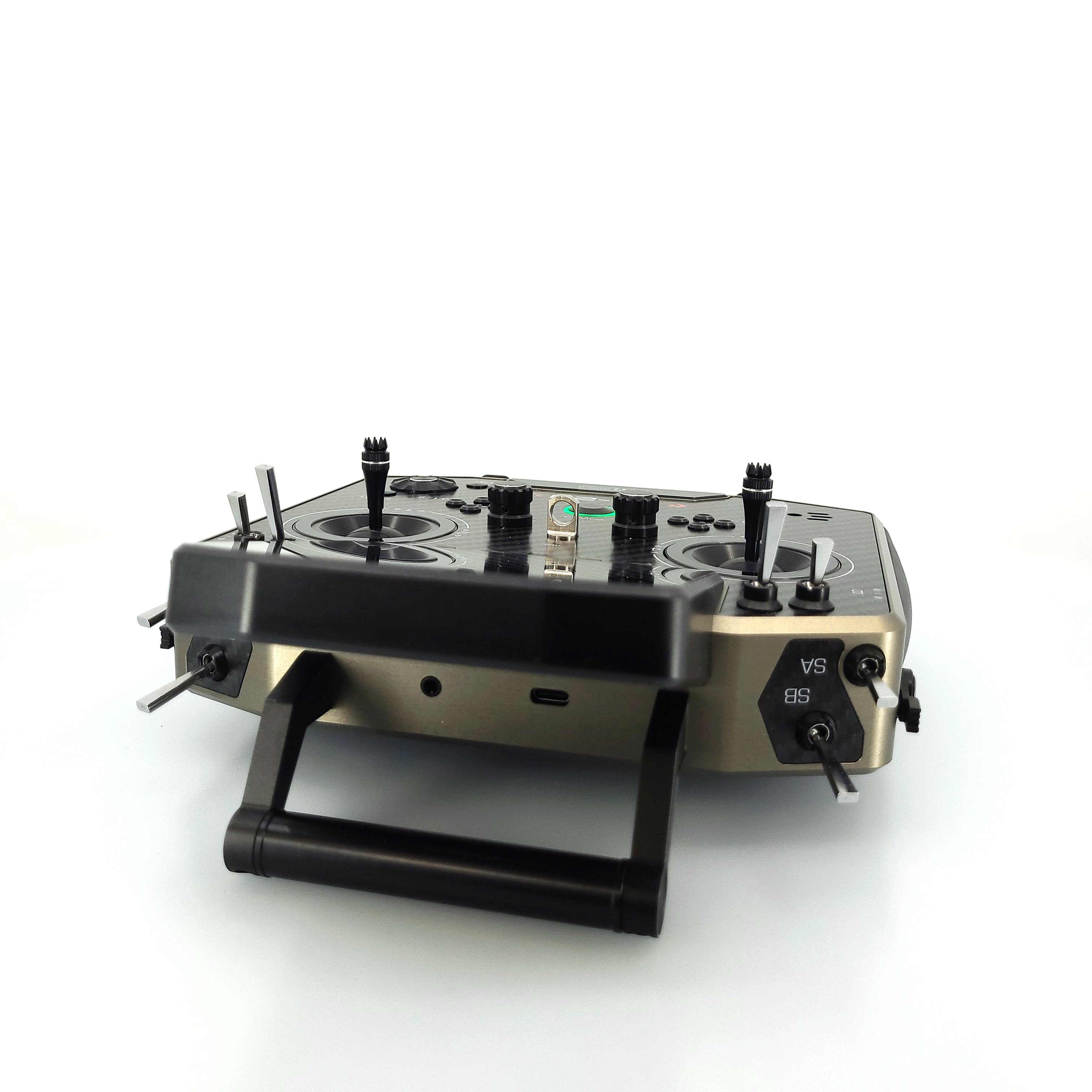

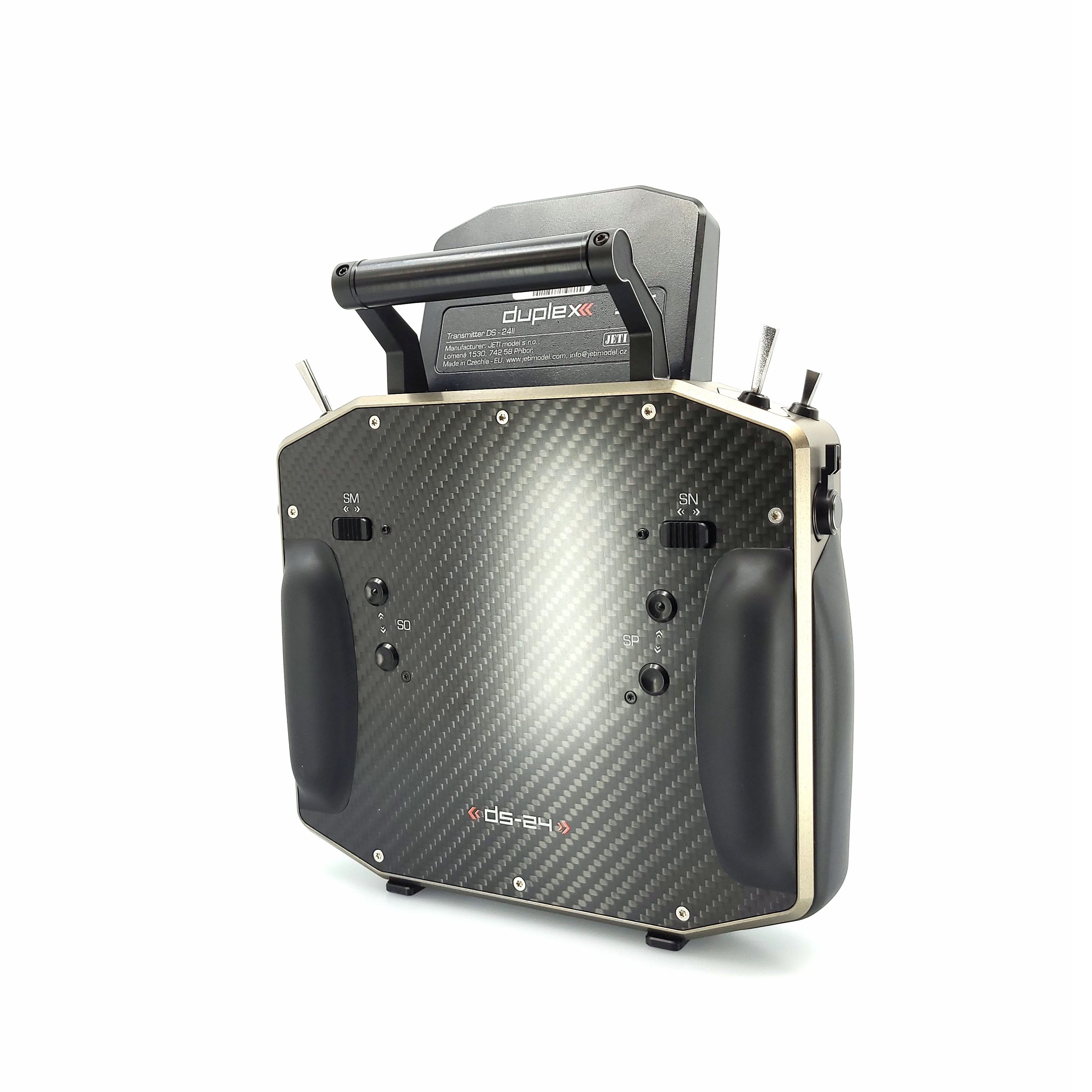

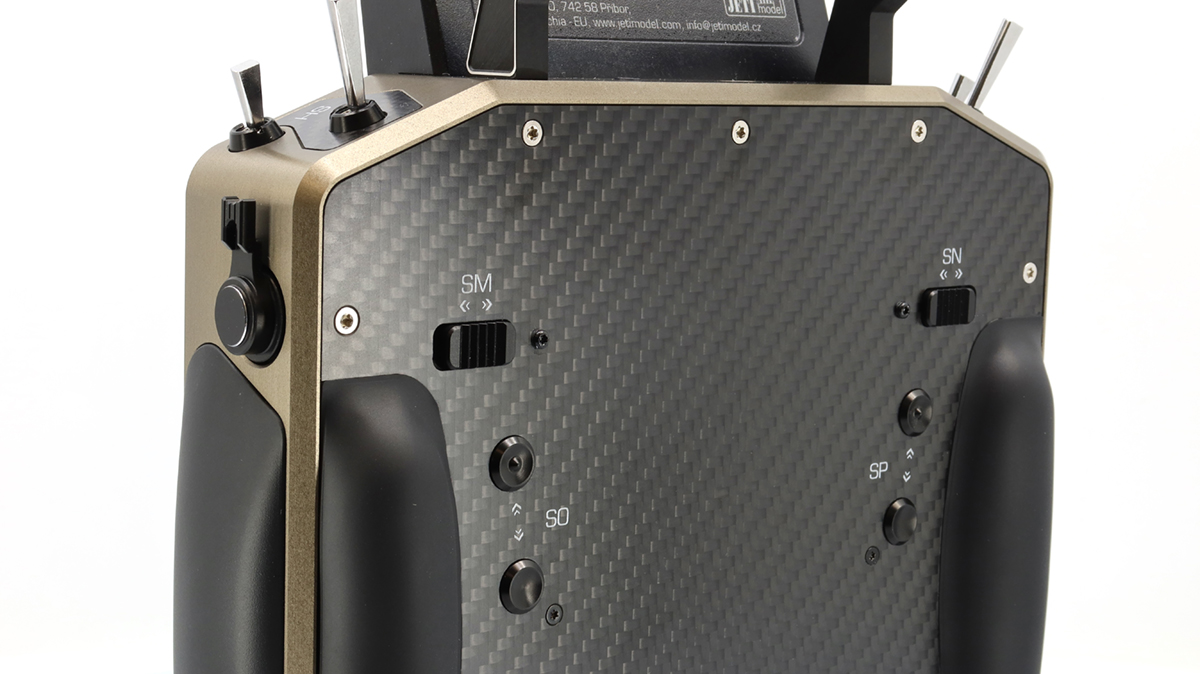

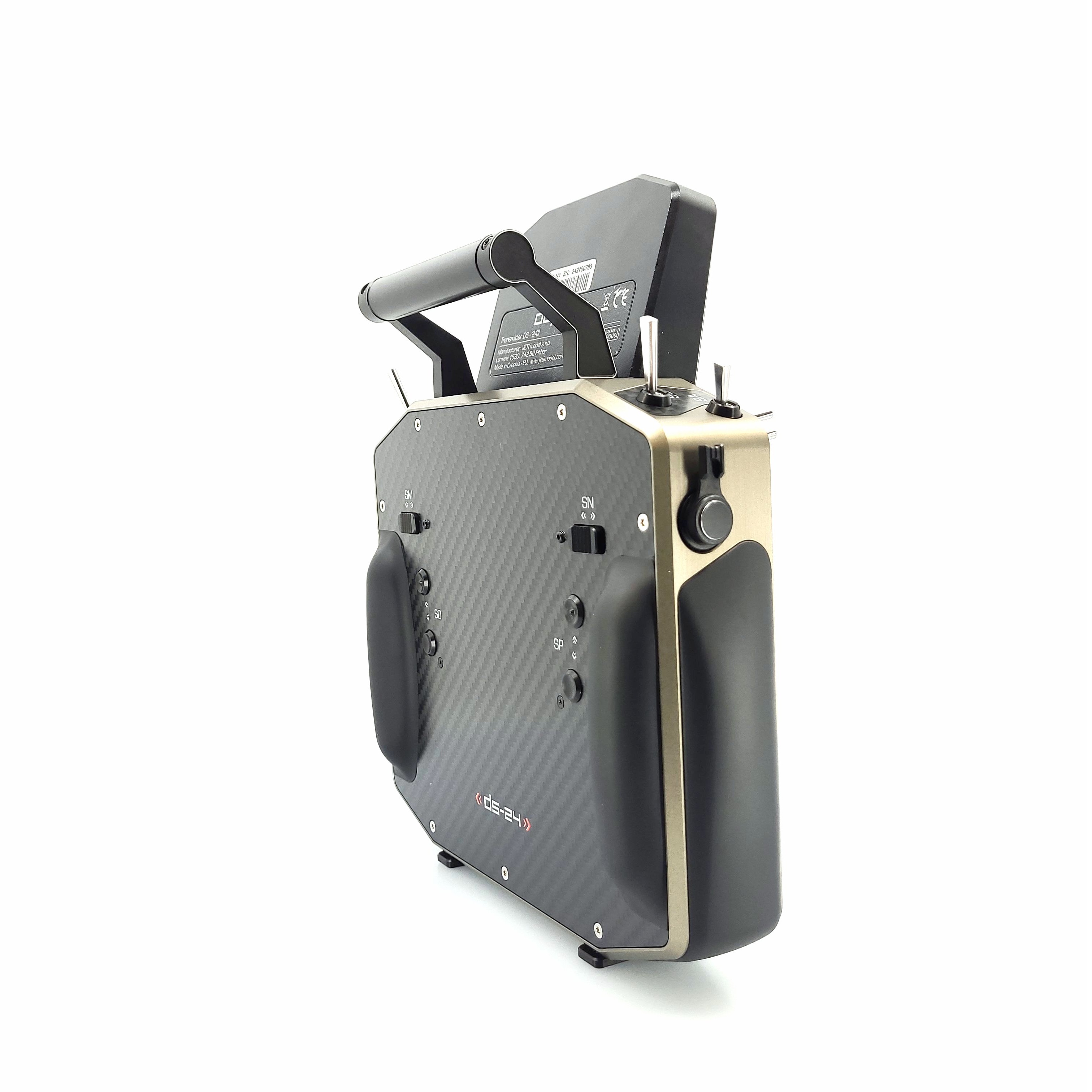

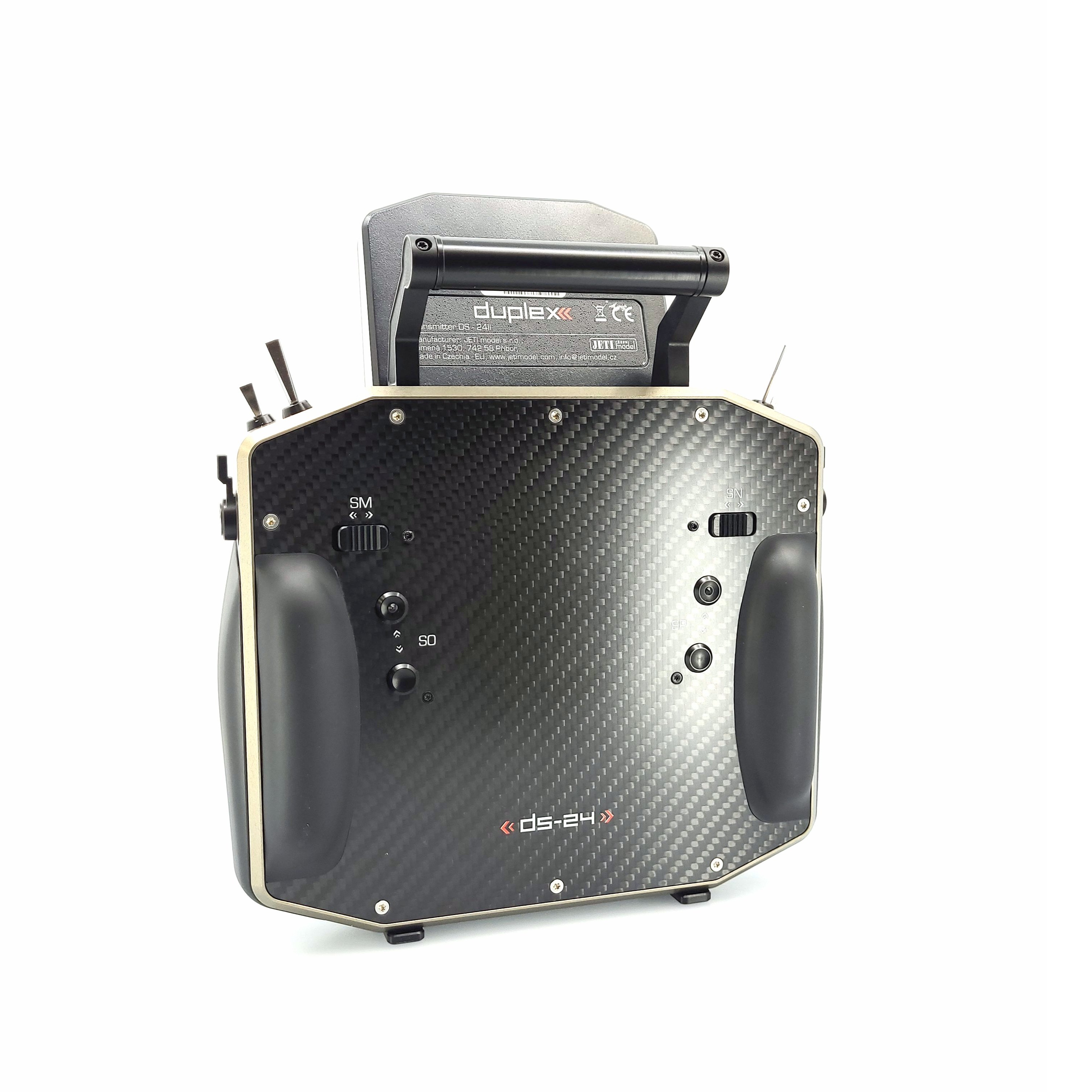

• New back panel ergonomics

Rear

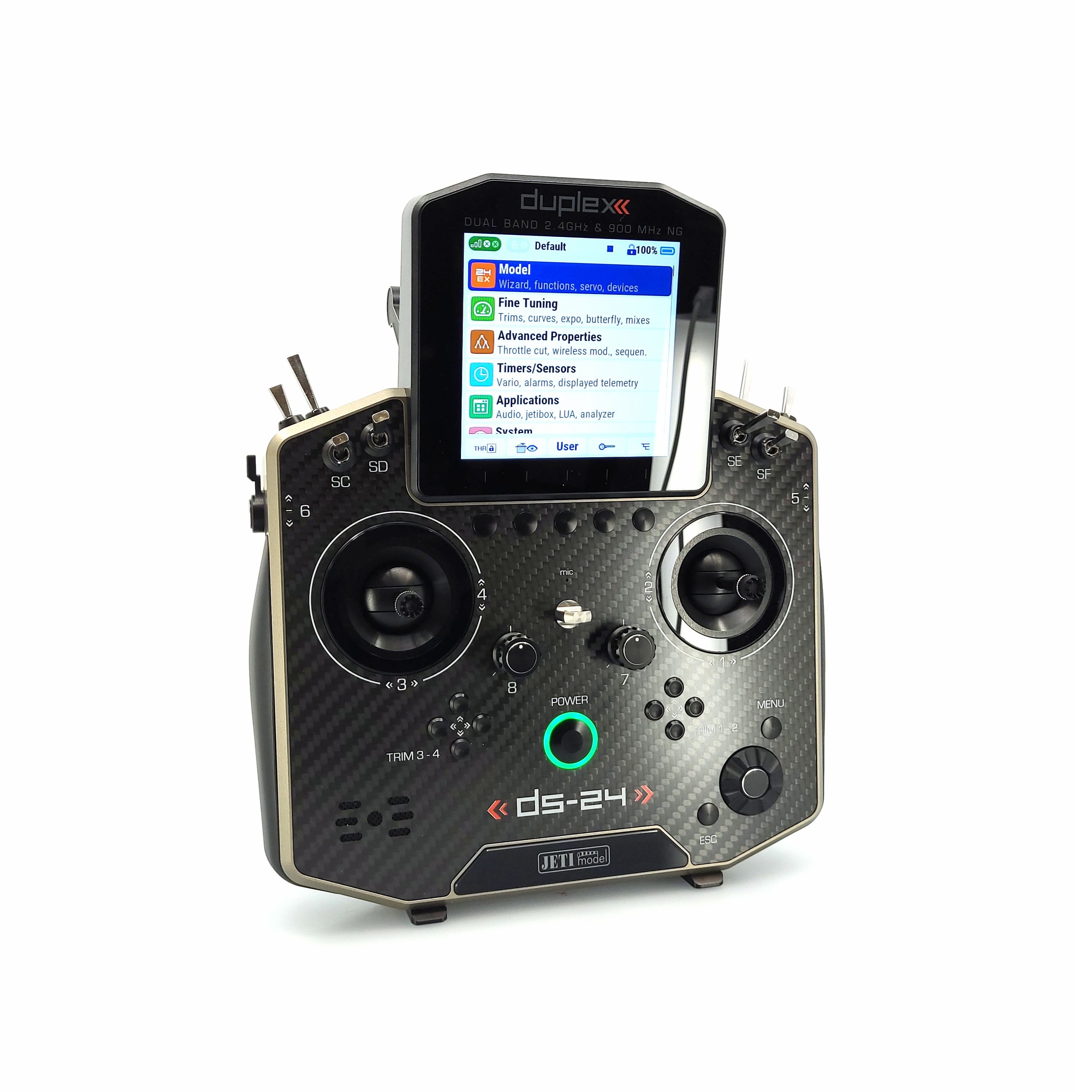

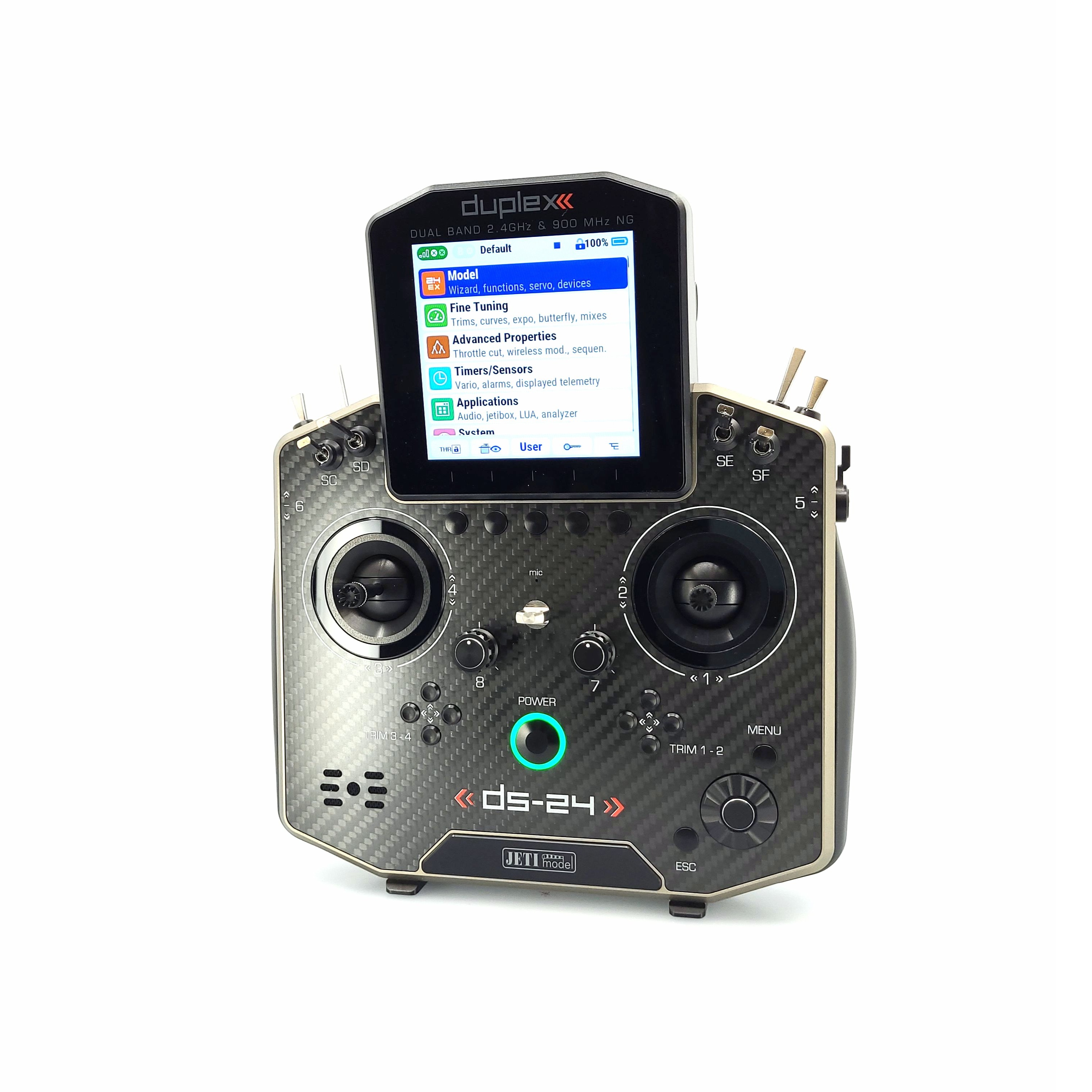

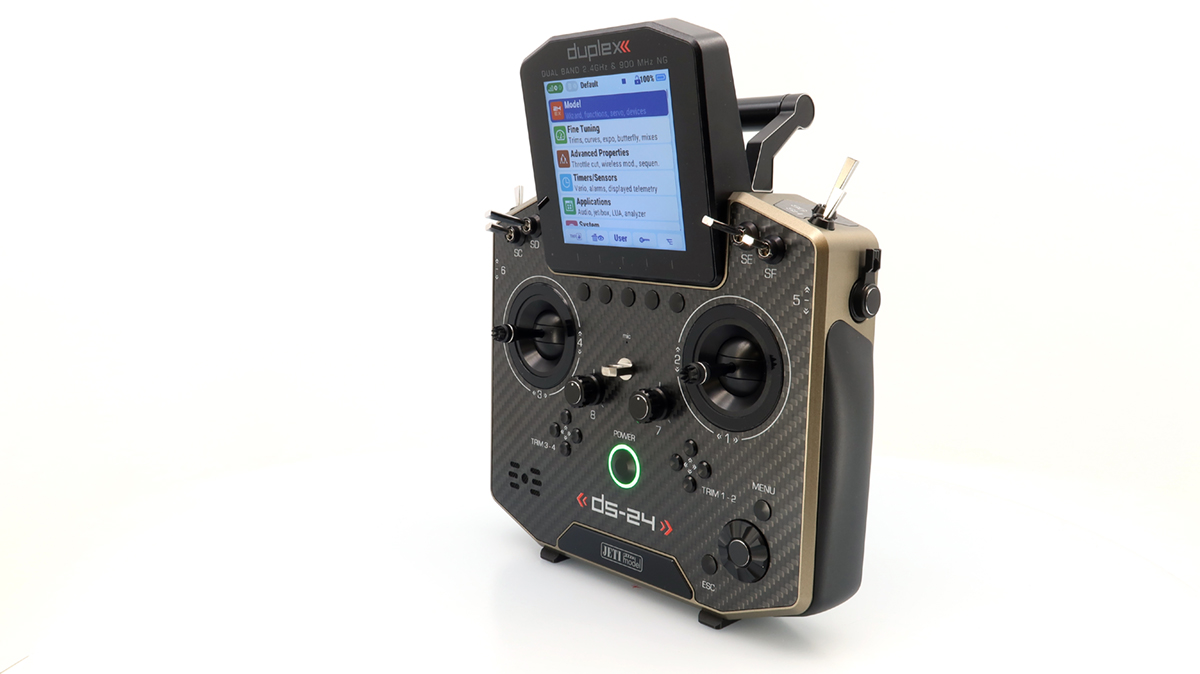

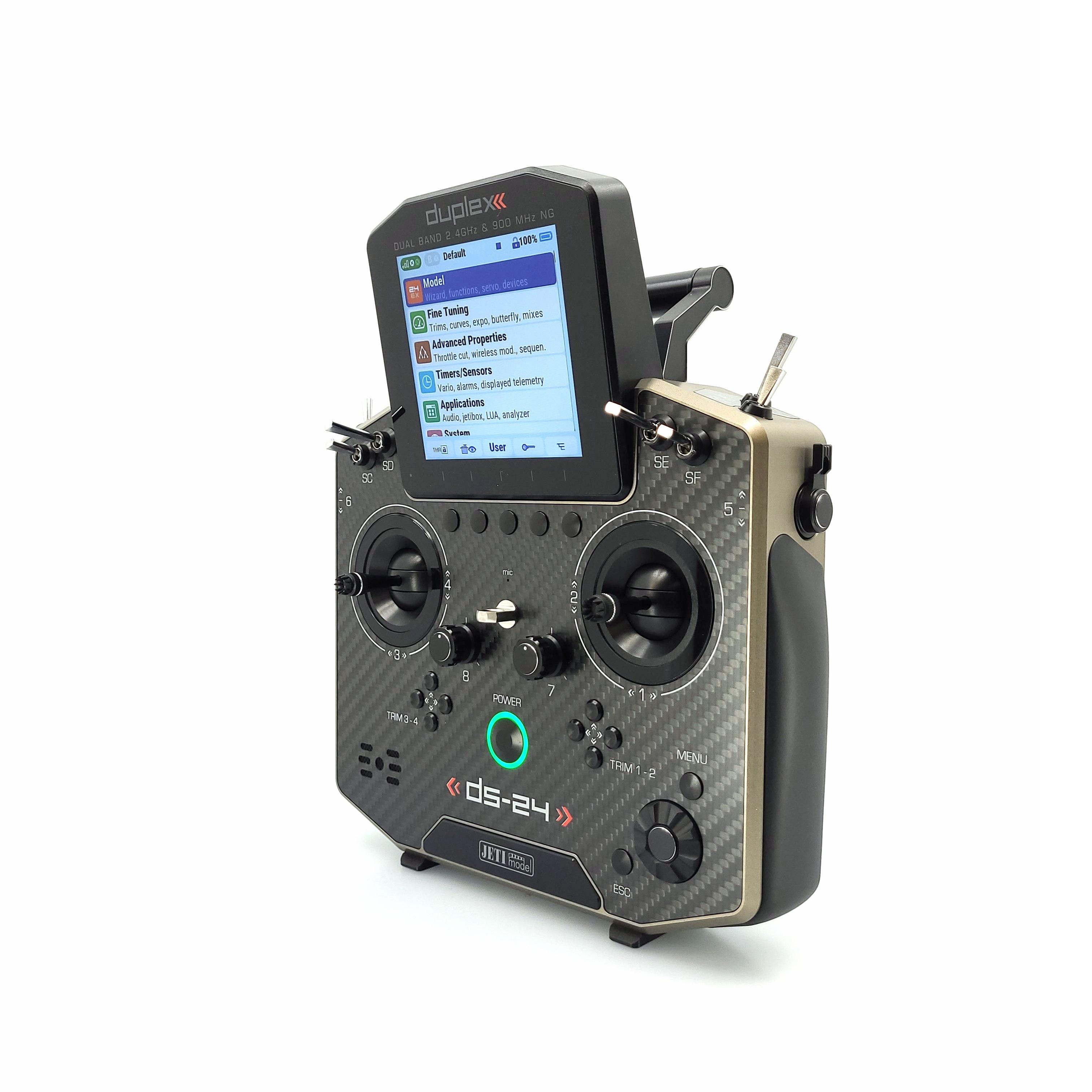

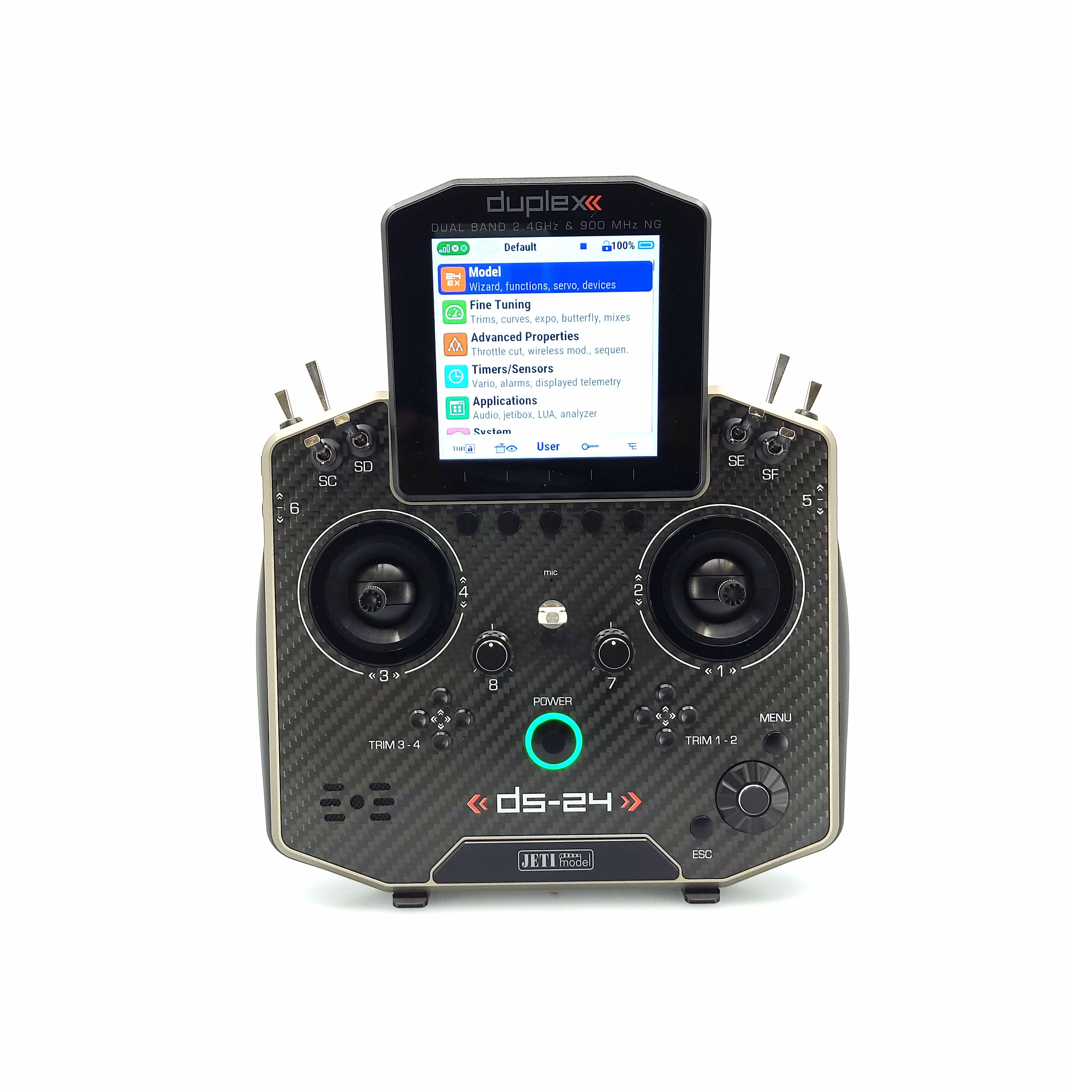

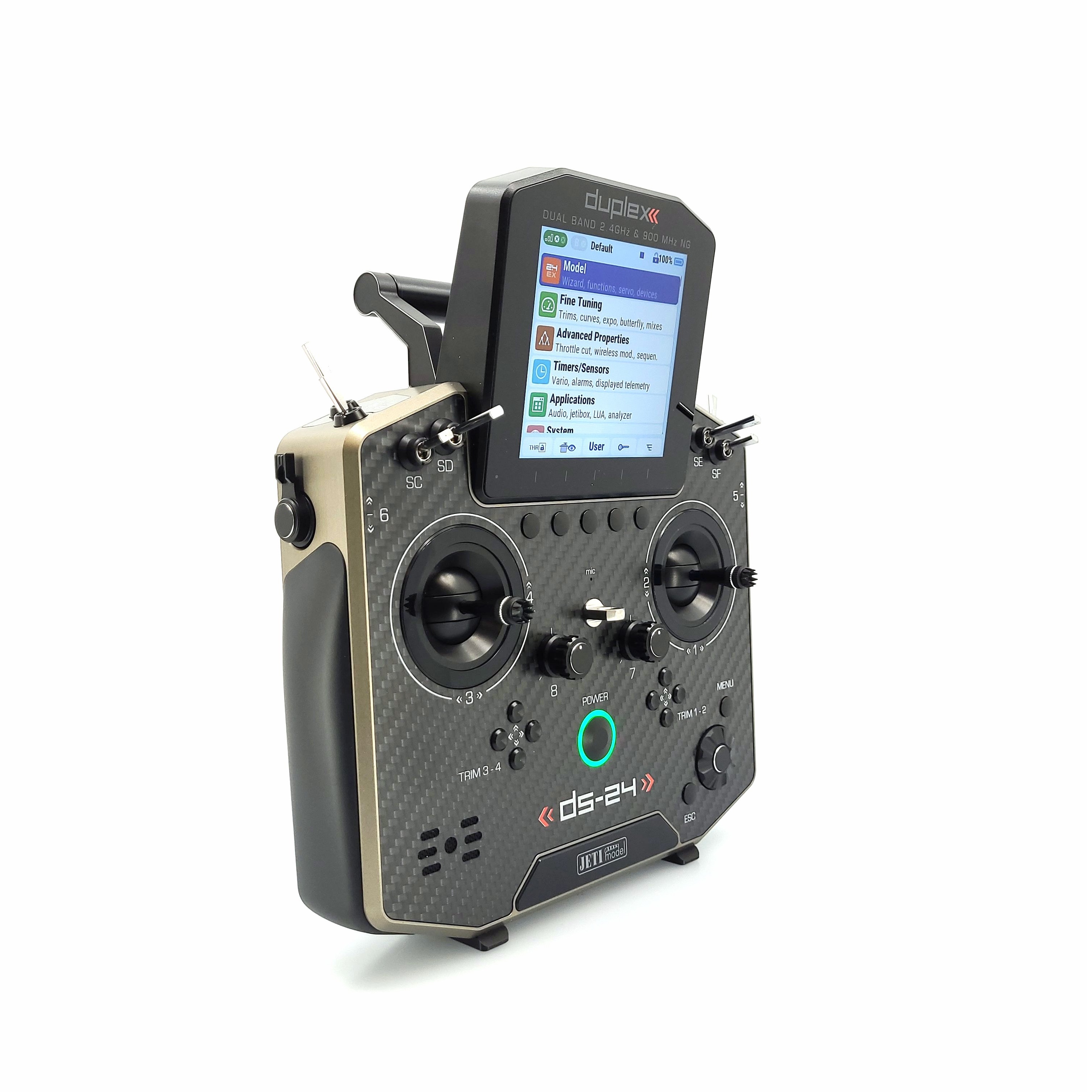

• 4" LCD with high brightness for sunlight readability

Disp4


• Bluetooth connectivity for headphones
• Online telemetry via Bluetooth for smartphones

BT      BT audio


• Wi-Fi module - Online updates (in future updates)
• One connector for both PPM and phone outputs

Wi-Fi


• Application for displaying telemetry on smartphones Android/iOS ("JETI studio M")
• USB-C connector for charging and PC/MAC connection

JETIstudioM      App


• System DUPLEX 2.4GHz (fully compatible with the Duplex system and previous JETI transmitters)
• 900 MHz NG* backup system (* Next Generation)




• Weight reduction

weight


• New color pallet of the frame

  bronze   Gray

 Orange   Ruby


Package contents:

  • Aluminum case
  • Strap
  • REX12 Assist receiver with accessories
  • Charger
  • USB-C cable
  • DUPLEX pad
  • Assembly keys
  • Cleaning cloth
  • Manuals

  • Packing



Parameters

Weight [g] 1300
Transmitter Aluminum Case Yes
Transmitter Battery Pack (mAh) 6200
Backlit LCD 4
Memory, SD Card 8 GB
Gimbal Hall Sensors/Vibration Yes/Yes
Stick Resolution 4096
Transmitter Frame Aluminum
Gimbals & Buttons Aluminum
Dimensions [mm] 230x270x40
Output Power - 2.4GHz [mW] 100
Operational temperature [°C] - 10 to 60
Channels 24
Control Inputs (Stick/Switch/Knob) 22
Backup Module 900MHz Yes
Flight Modes 10
Free Mixes 30
Data Graphs Yes
Audio Player Yes
Logical Switches 24
Number of Remote Commands 24
Servo Sequencer 10
Timers 10
Displayed Telemetry Values 40
Sound on Events 40
Alarms 40
Vibration Alarms Yes
Voice Output Yes
MP3 Yes
Microphone Yes
Gyro Settings 3
Servo Balancer Yes
Function Curves Yes
Throttle Limiter (heli) Yes
Variometer Yes
Flight Mode Trim Yes
Data Stream Logging 80
Telemetry Controls 64
Voice Commands 16
Lua Apps 10
Ditex Servo Telemetry 16
Double Path Yes
Accelerometer Yes
Online telemetry via Bluetooth for smartphones Yes
Bluetooth connectivity for headphones Yes
Wi-Fi module Yes
RF modules 2.4GHz/900MHz 2/1 NG
Control Inputs (Stick/Switch/Knob) 22 (up to 24)

Downloads

Manual for Duplex Transmitters DC/DS-24II - "Basic setting" - Czech

DC-DS-24II-2024-09-01-CZ-web.pdf

Manual for Duplex Transmitters DC/DS-24II - "Basic setting" - Germany

DC-DS-24II-2024-09-01-DE-WEB.pdf

Manual for Duplex Transmitters DC/DS-24II - "Basic setting" - English

DC-DS-24II-2024-09-01-EN-web.pdf

Manual for Duplex Transmitters DC/DS-24II - "Basic setting" - French

DC-DS-24II-2024-10-FR-web.pdf
