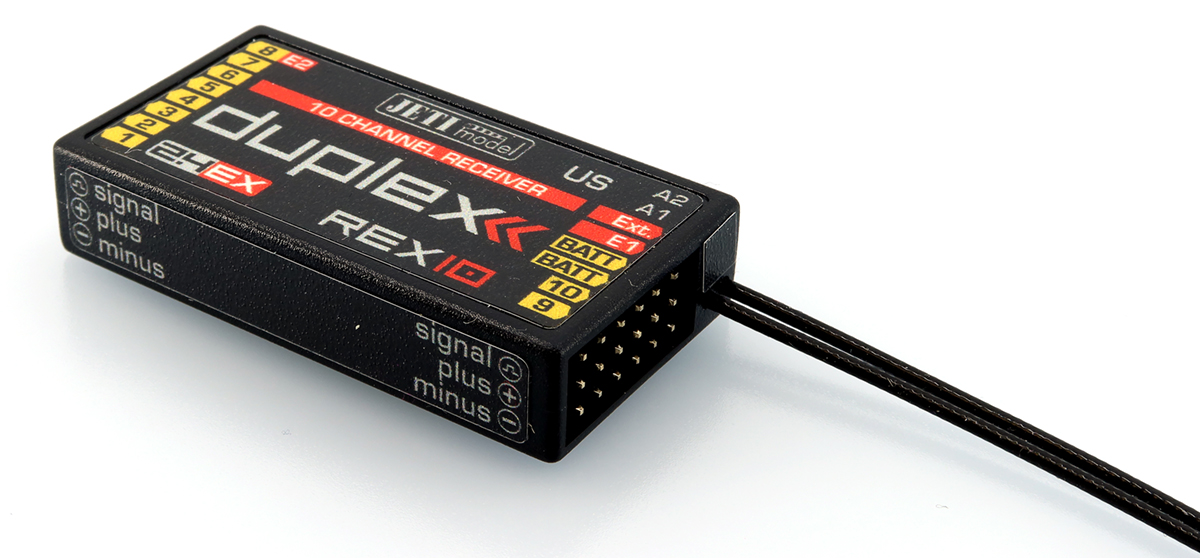

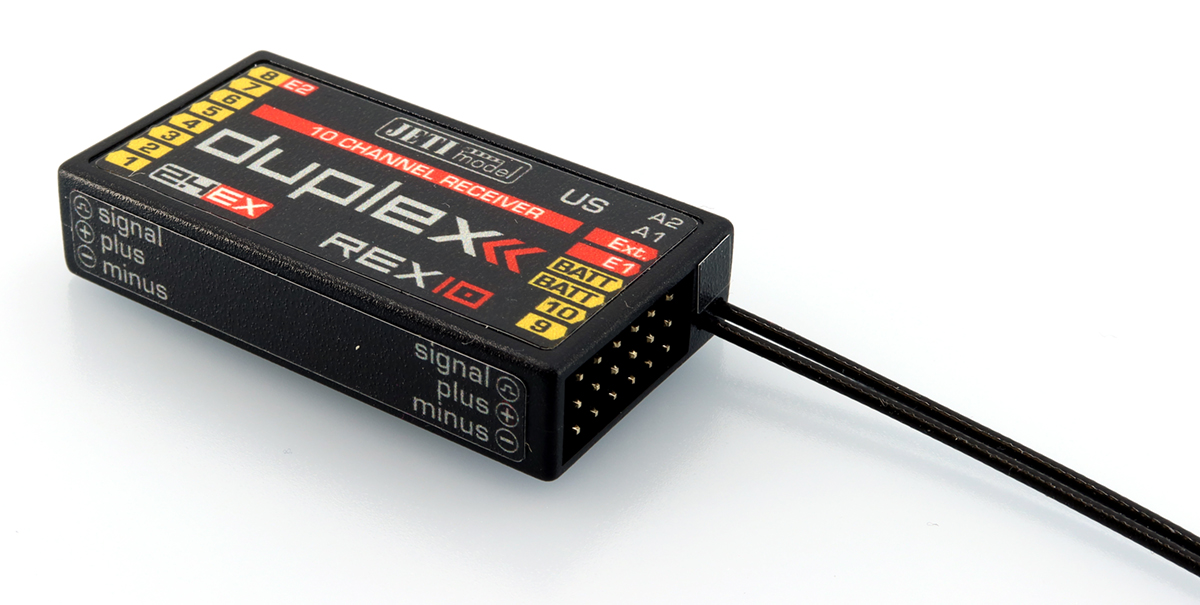

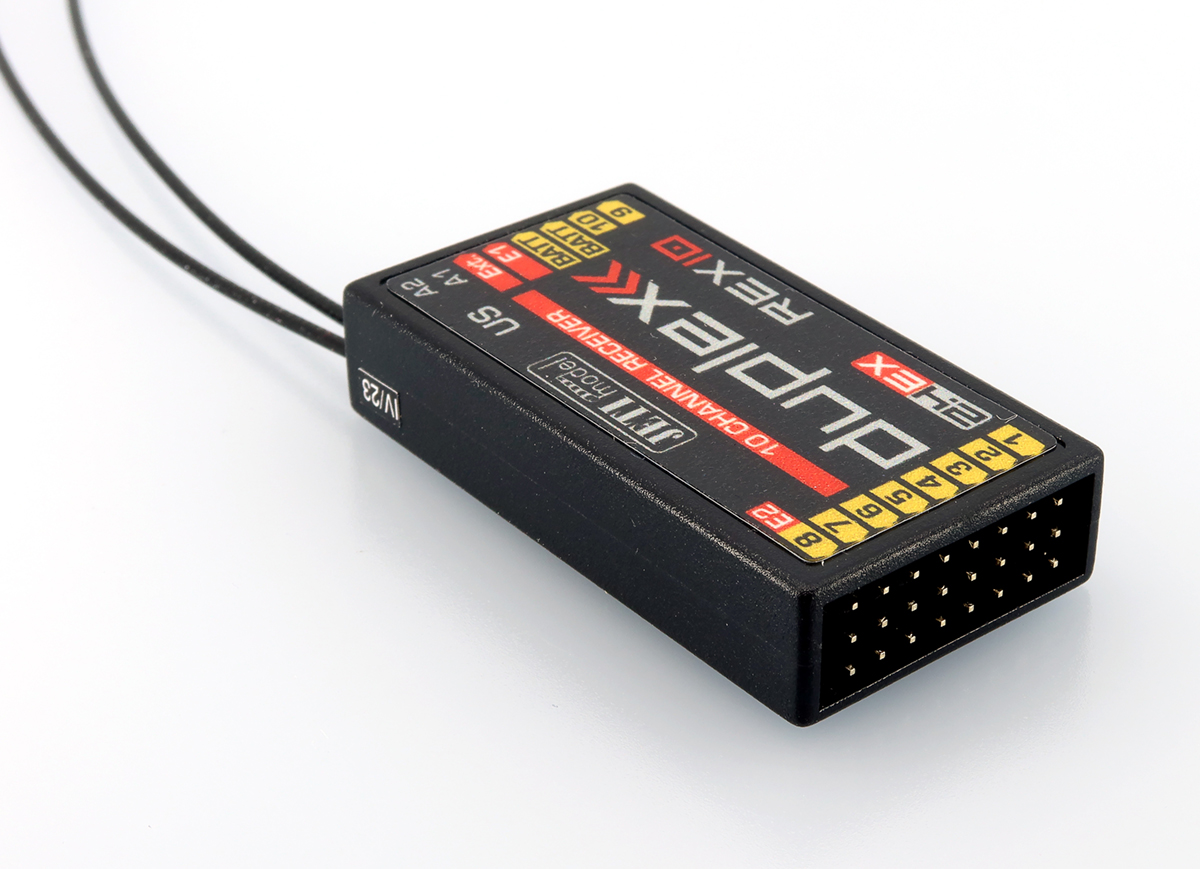

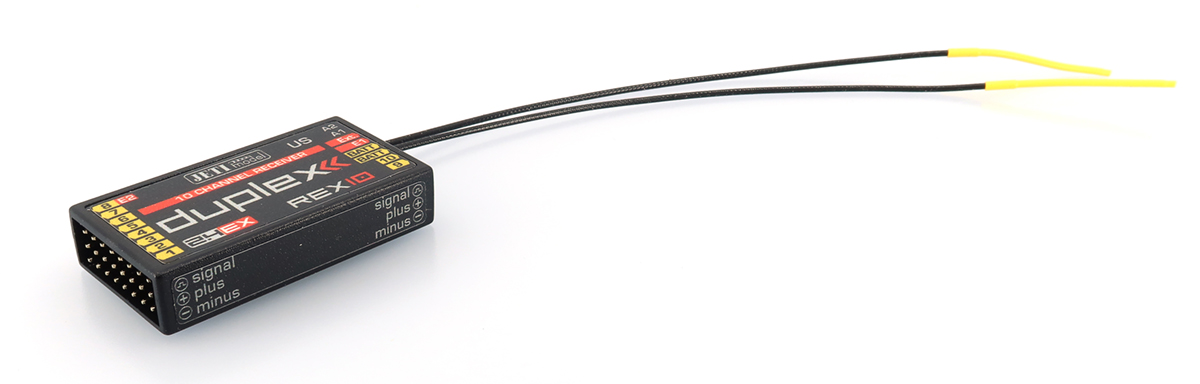

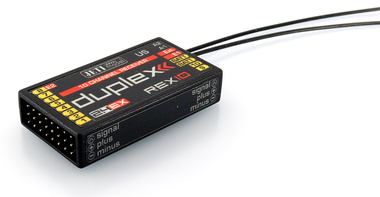

DUPLEX REX 10 US
Art. No.:
JDEX-RR10-US
JDEX-RR10-US
Parameters
| Weight [g] | 16 |
|---|---|
| Dimensions [mm] | 51 x 28 x 11 |
| Number of channels | 10 |
| Telemetry | Yes |
| Operational temperature [°C] | -10 to 85 |
| Compatible protocols | DUPLEX 2.4 GHz EX, EX Bus |
| Antenna Length [mm] | 2x 200 |
| Supply Voltage [V] | 3.5 - 8.4 |
| Average Current [mA] | 75 |
| Satellite receiver support | Yes |
| Output Power [dBm] | 15 |
| Receiver Sensitivity [dBm] | -106 |
| Assist stabilization | No |
| Frequency | 2.4GHZ |
Downloads
|
Manual for Duplex receivers "REX" - Czech/English/Germany Manual Duplex-REX-CZ-EN-DE-2023-05-web.pdf |
