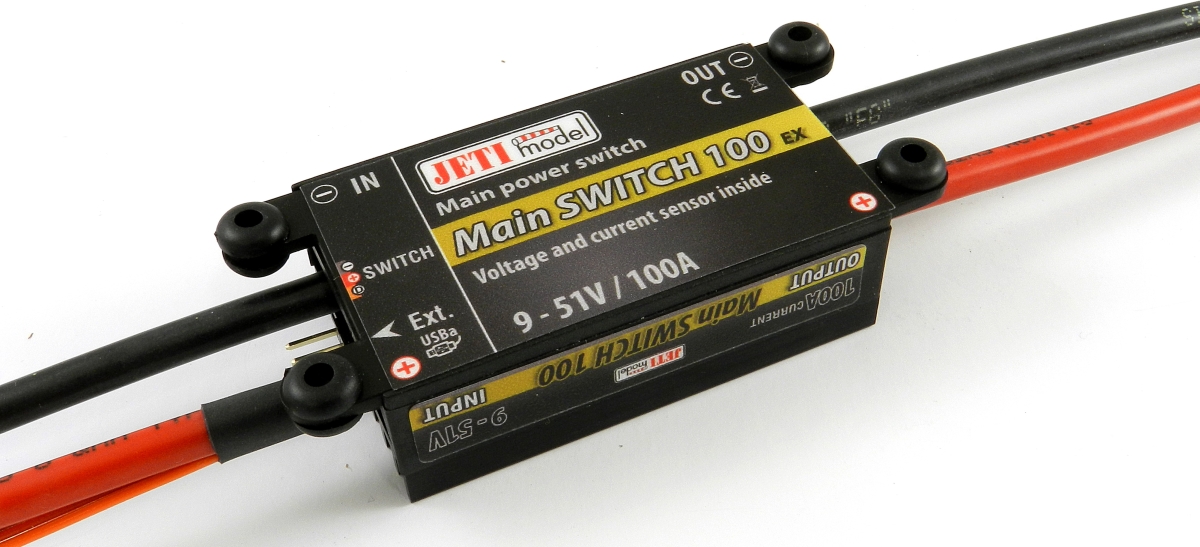

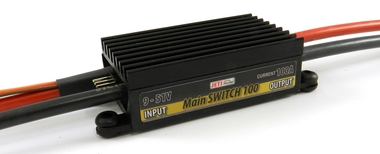

Main Switch 100 + Magnetic Switch
Art. No.:
J-MSW-100-MS
J-MSW-100-MS
Description
Main Switch 100 + Magnetic Switch
Parameters
| Weight [g] | 110 |
|---|---|
| Dimensions [mm] | 80 x 36 x 23 |
| Sustained current [A] | 100 |
| Telemetry | Yes |
| Operational temperature [°C] | -20 to 85 |
| Recommended input voltage [V] | 9 to 51 |
| Idle current [µA] | 110 |
| Number of battery inputs | 1 |
| Input voltage max. [V] | 51 |
| Package contents | Main Switch + Magnetic switch |
Downloads
|
Manual for Main Switch 100/200 - Czech Main Switch CZ.pdf |
|
Manual for Main Switch 100/200 - German Main Switch DE.pdf |
|
Manual for Main Switch 100/200 - English Main Switch EN.pdf |
