Motor Phasor Race 2026/3600
Art. No.:
J-MPR-2026/36
J-MPR-2026/36
Description
Phasor - high power brushless motors that excel in great efficiency and durability.
Phasor motors are designed mainly for race model disciplines, but it can be used also when flying recreationally. They excel at their power, high efficiency at all load levels and they have a very low weight.
Phasor Race 2026 product line is suitable for large scale motor gliders up to 7kg, sport hotliners, FAI F5J and F5F competition models etc.
Parameters
Weight [g] | 298 |
---|---|

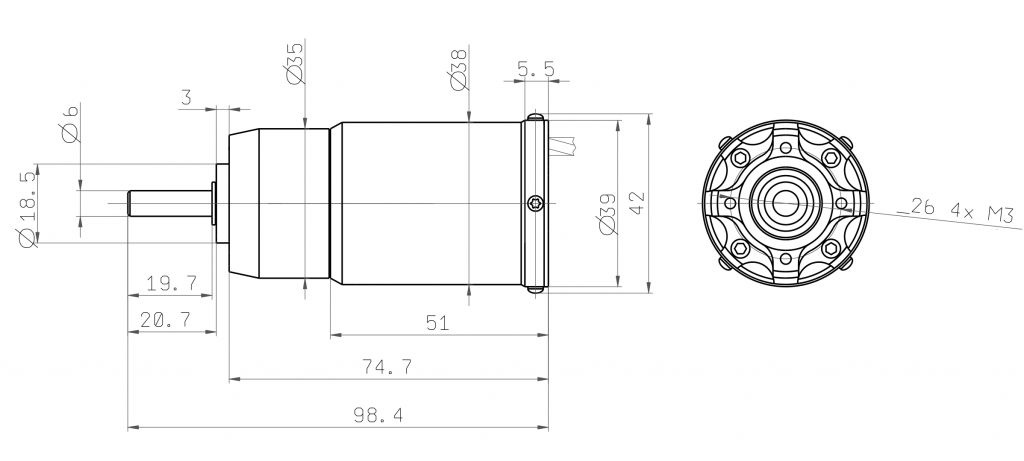

Dimensions [mm] | 38 x 38 x 79 |
Supply Voltage [V] | 11 - 24 |
Batteries NiXX | 9 - 18 |
Batteries LiXX | 3 - 6 |
Peak current (max 5s) [A] | 180 |
Maximum RPM [1/min] | 70000 |
Output shaft diameter [mm] | 6 |
Gear ratio | 6.75:1 |
Timing [°] | 8 - 12 |
Max continous power [W] | 1100 |
Poles | 4 |
RPM/V | 3600 |
Downloads
Manual for Phasor Race - English Phasor Race 20xx EN Manual.pdf |
