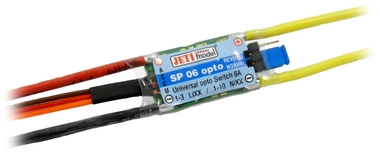

SP 06 OPTO
Art. No.:
J-SP06-O
J-SP06-O
Description
The switch SP 06 opto has been specifically designed for switching purposes of auxiliary functions, such as on board glow plug heating systems and miscellaneous lighting systems etc. in model airplanes, model ships, and model cars. The switched loads can be of ohmic, inductive or capacitive character. The switching moment is signalled by a LED.
Parameters
| Weight [g] | 9 |
|---|---|
| Dimensions [mm] | 27 x 15 x 5 |
| Sustained current [A] | 6 |
| Peak current (max 30s) [A] | 10 |
| Telemetry | No |
| Operational temperature [°C] | -10 to 70 |
| Recommended input voltage [V] | 0 to 16 |
| Input voltage max. [V] | 16 |
Downloads
|
Manual for SP06/SP06opto - Czech Spínač SP06-SP06opto-CZ-web.pdf |
|
Manual for SP06/SP06opto - English Switch SP06-otpto-EN-web.pdf |
