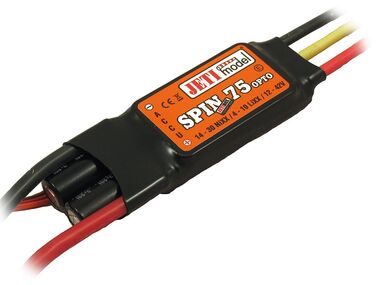

SPIN 75 PRO OPTO

Description

Opto controllers have galvanically separated input (the receiver signal) from power accumulators, therefore it's necessary to use independent power supply for the receiver and servos (4-5 NiXX or 2-3 LiXX with linear voltage regulator, such as MAX BEC).

SPIN opto controllers are provided with two JR connectors. Connector on the longer three-line cable with black ending is to be linked to the receiver. Connector on the shorter three-line cable with red ending is intended for communication with JETIBOX; for programming or data reading connect it into slot marked imp. + - on JETIBOX.

Parameters

Weight [g]	55
Dimensions [mm]	52 x 25 x 15
Sustained current [A]	75
Supply Voltage [V]	12 to 42
Batteries LiXX	4 to 10
Max. Current BEC [A]	-
OPTO (optically separated radio signal from the power management)	Yes
Voltage BEC [V]	-
Telemetry	Yes
Operational temperature [°C]	-10 to 85
Max. number of servos	-
Resistance in conducting state [mΩ]	2 x 1.00
Number of power transistors	72
Cable crossection (input/output) [mm²]	4.0 / 2.5
Input capacitance [µF]	2 x 470
Batteries NiXX	-
