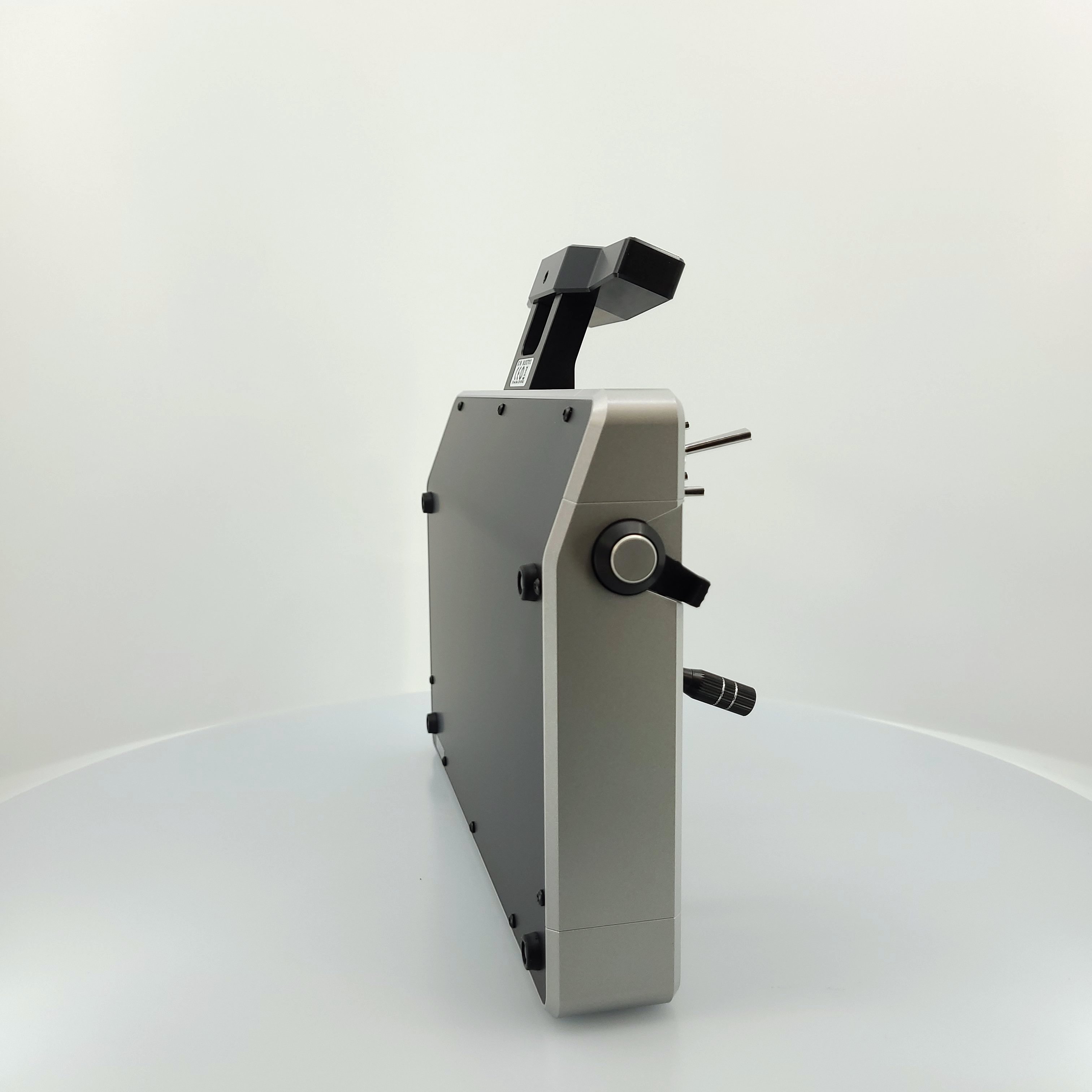

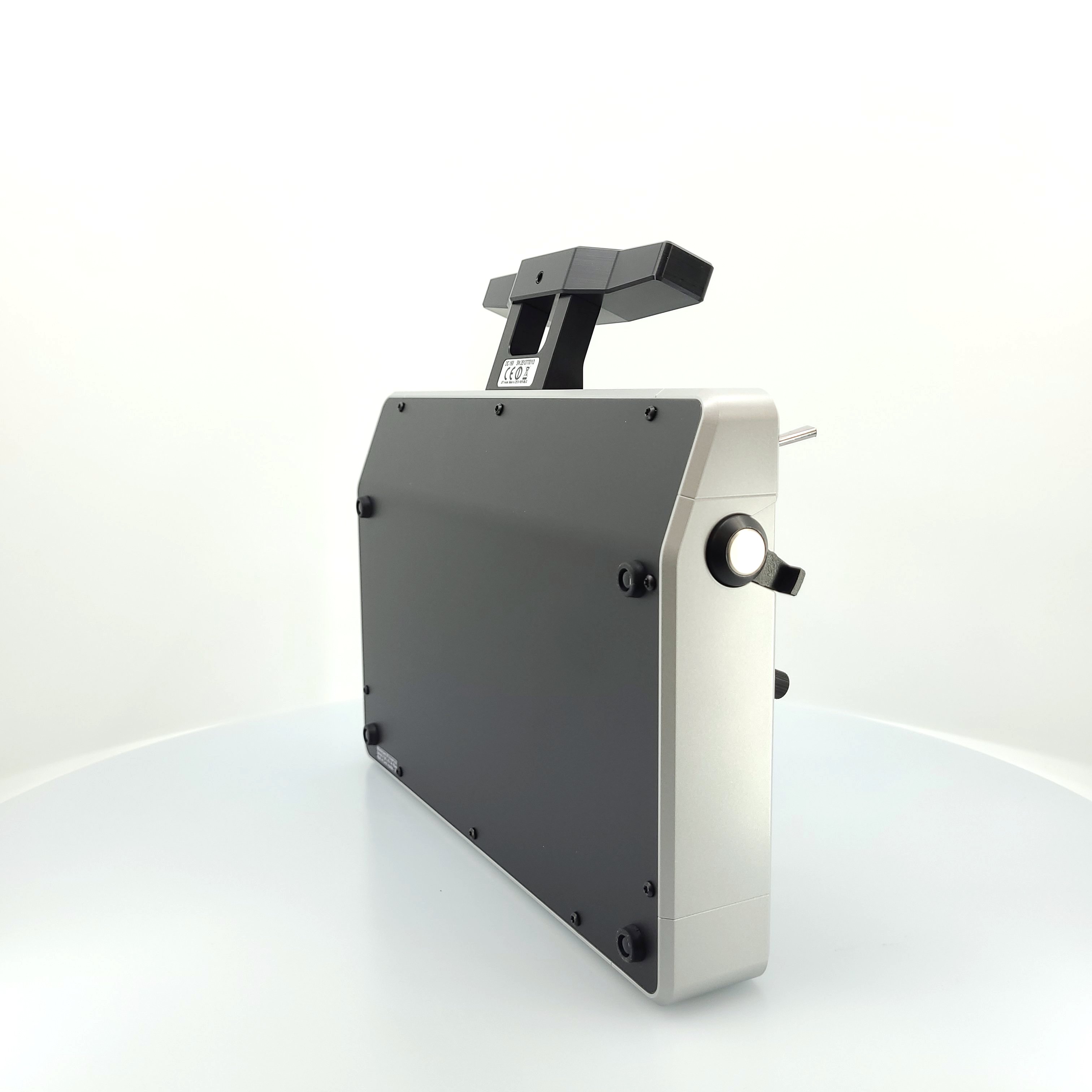

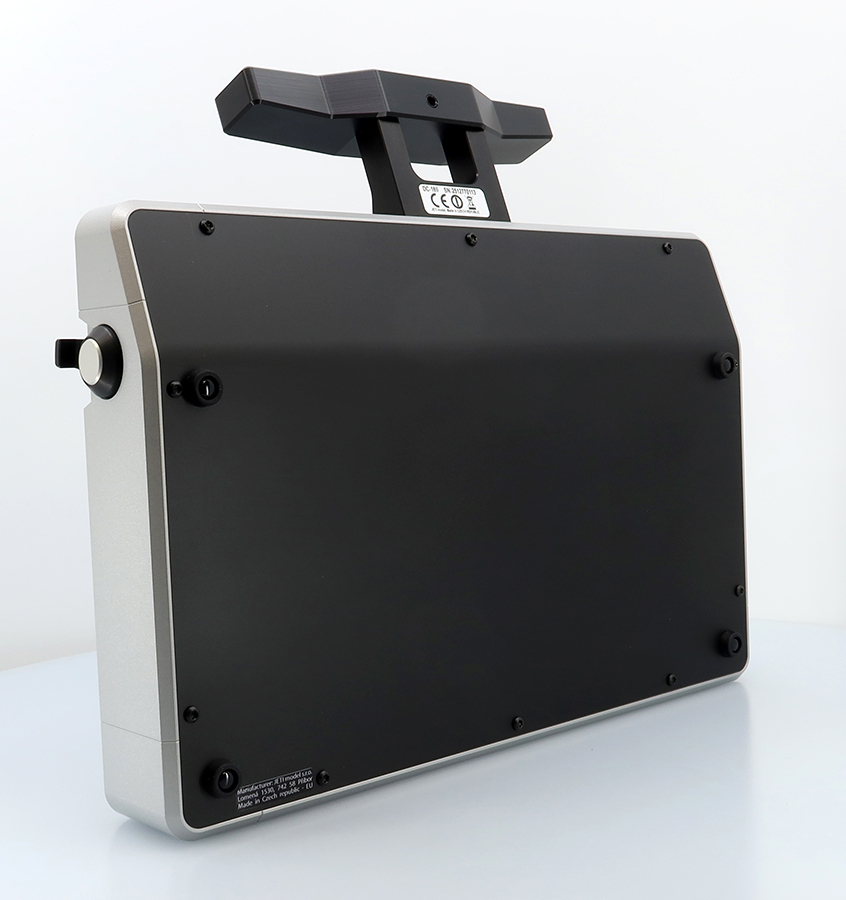

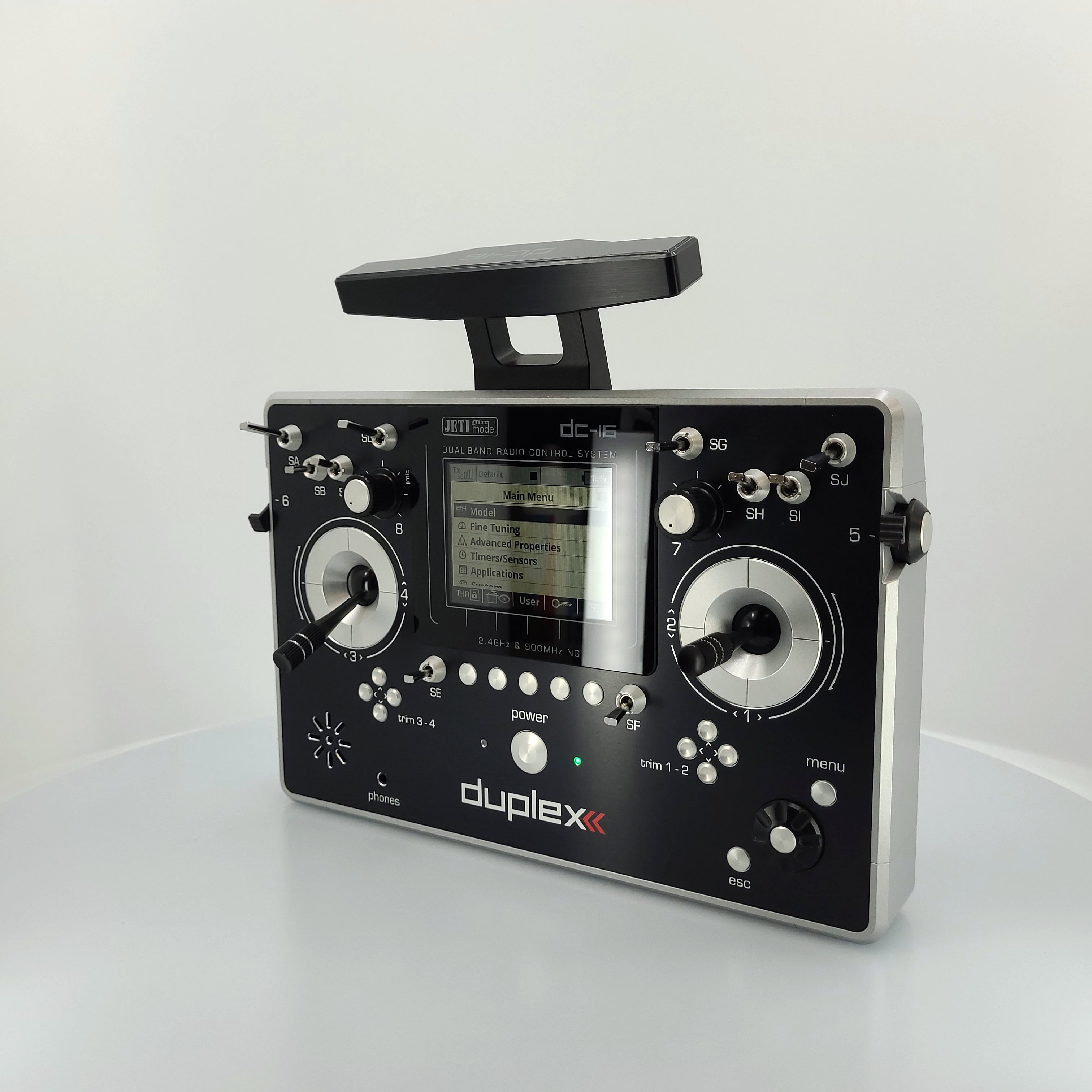

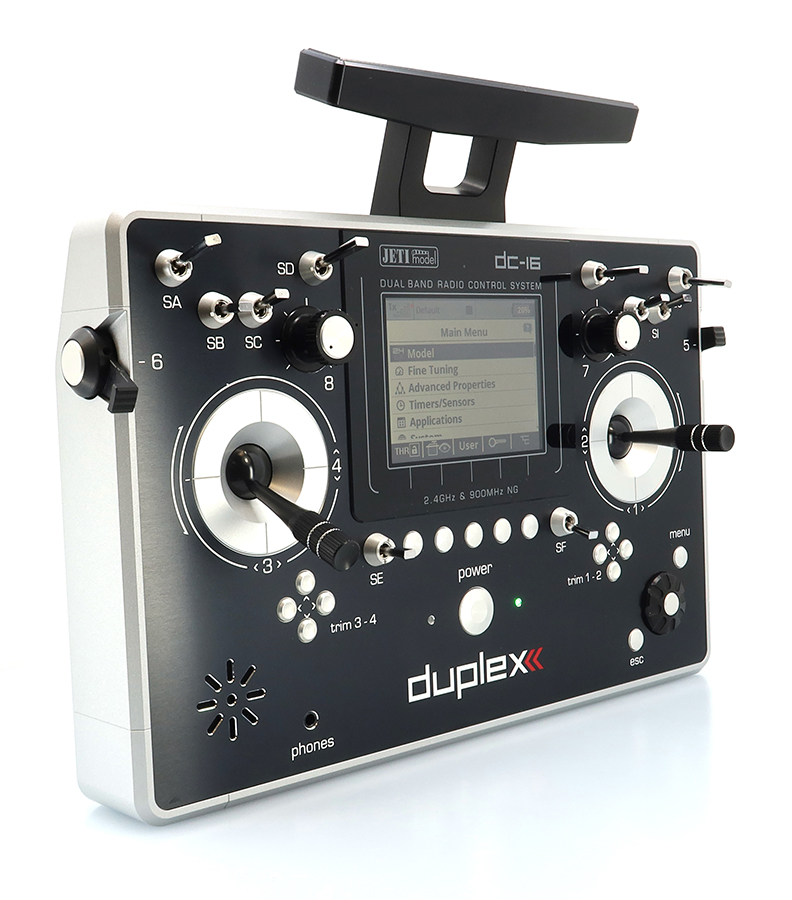

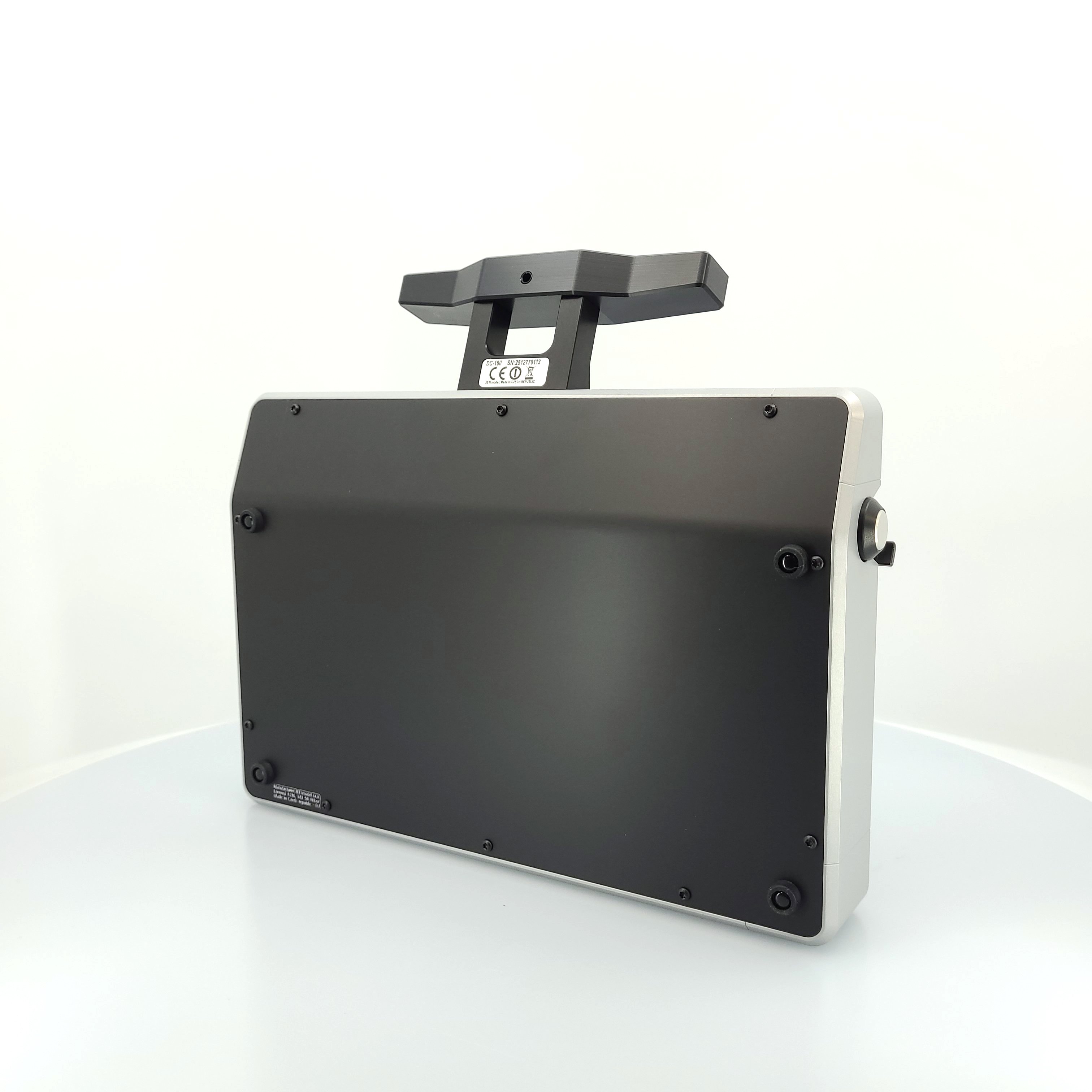

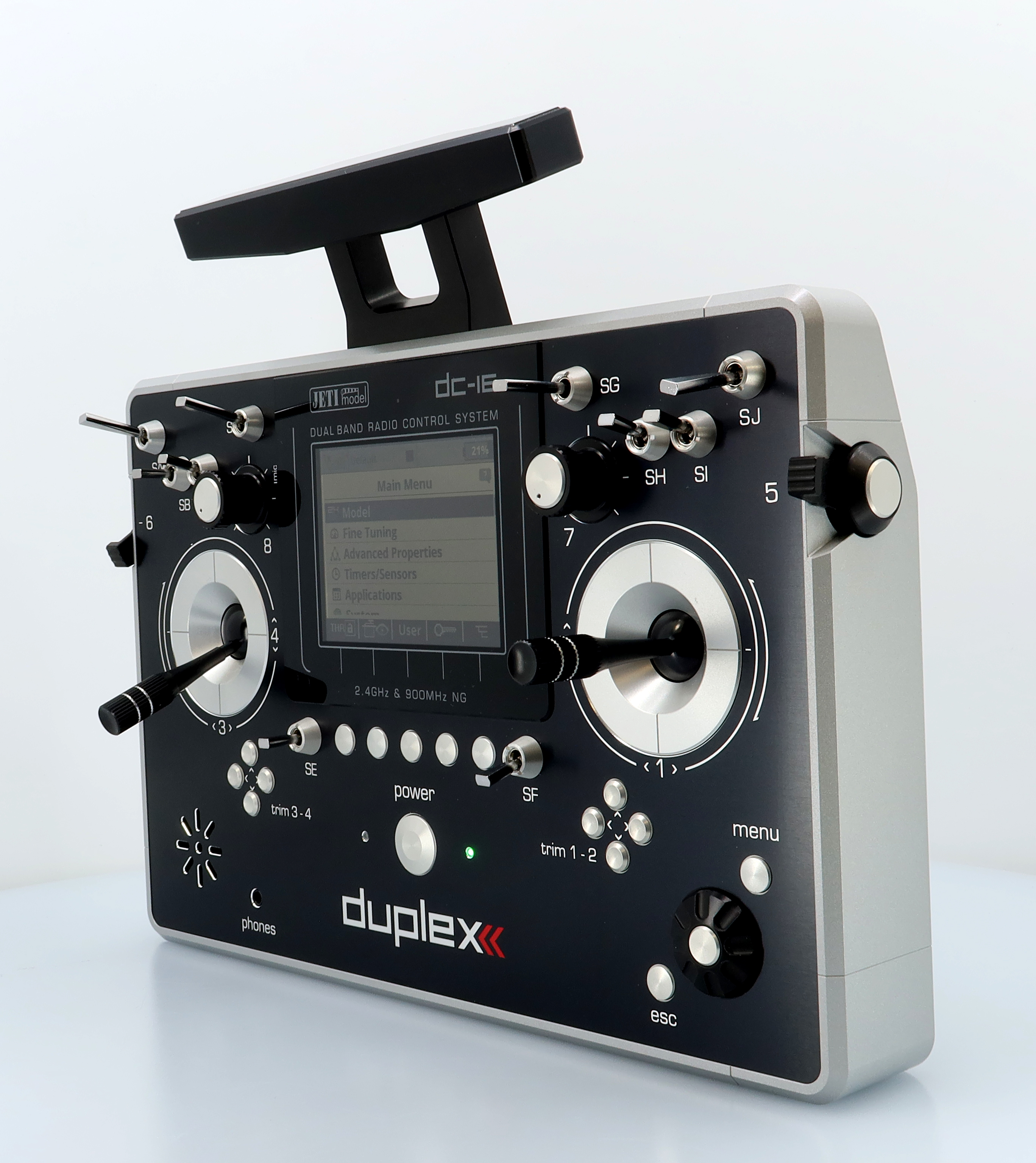

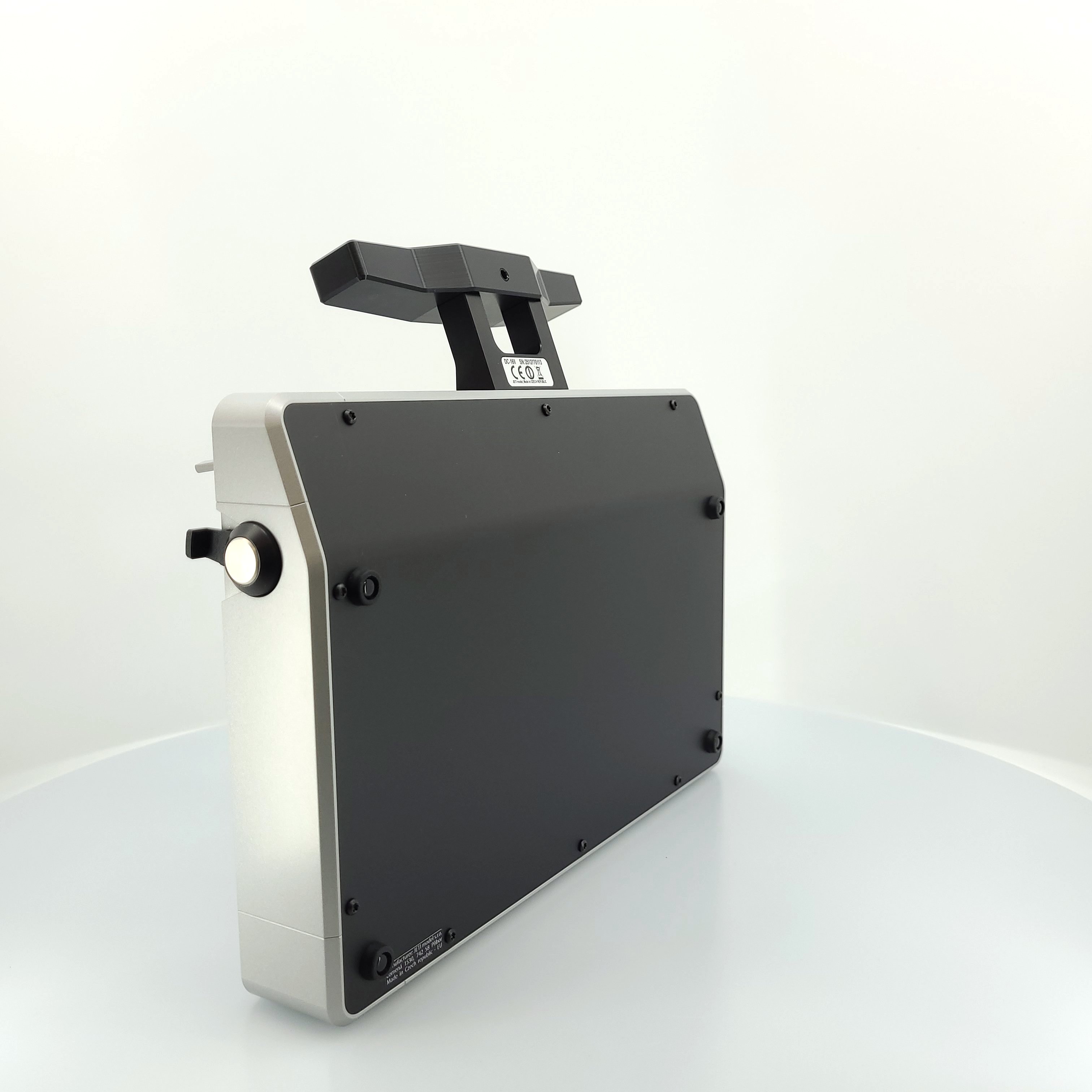

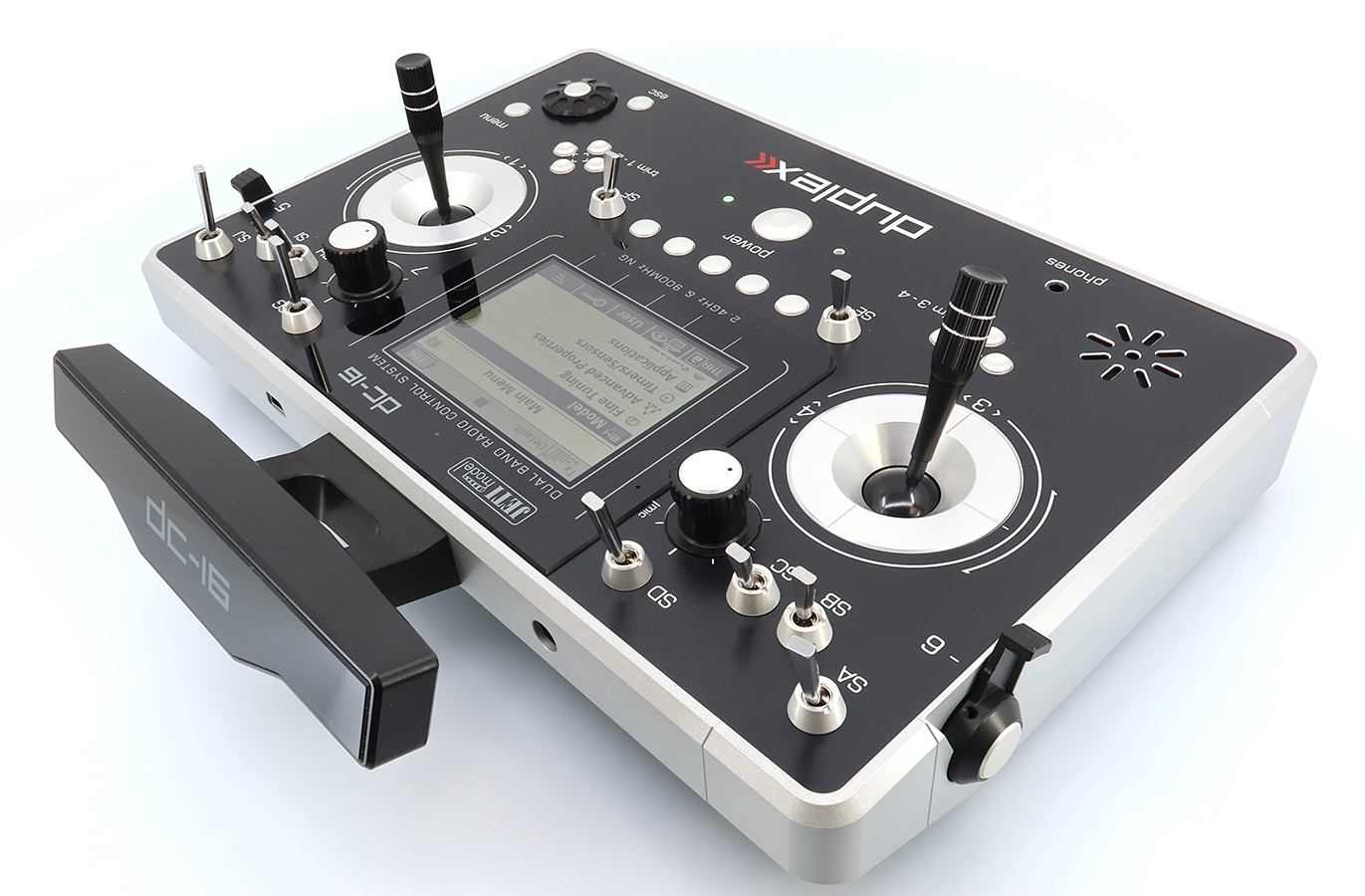

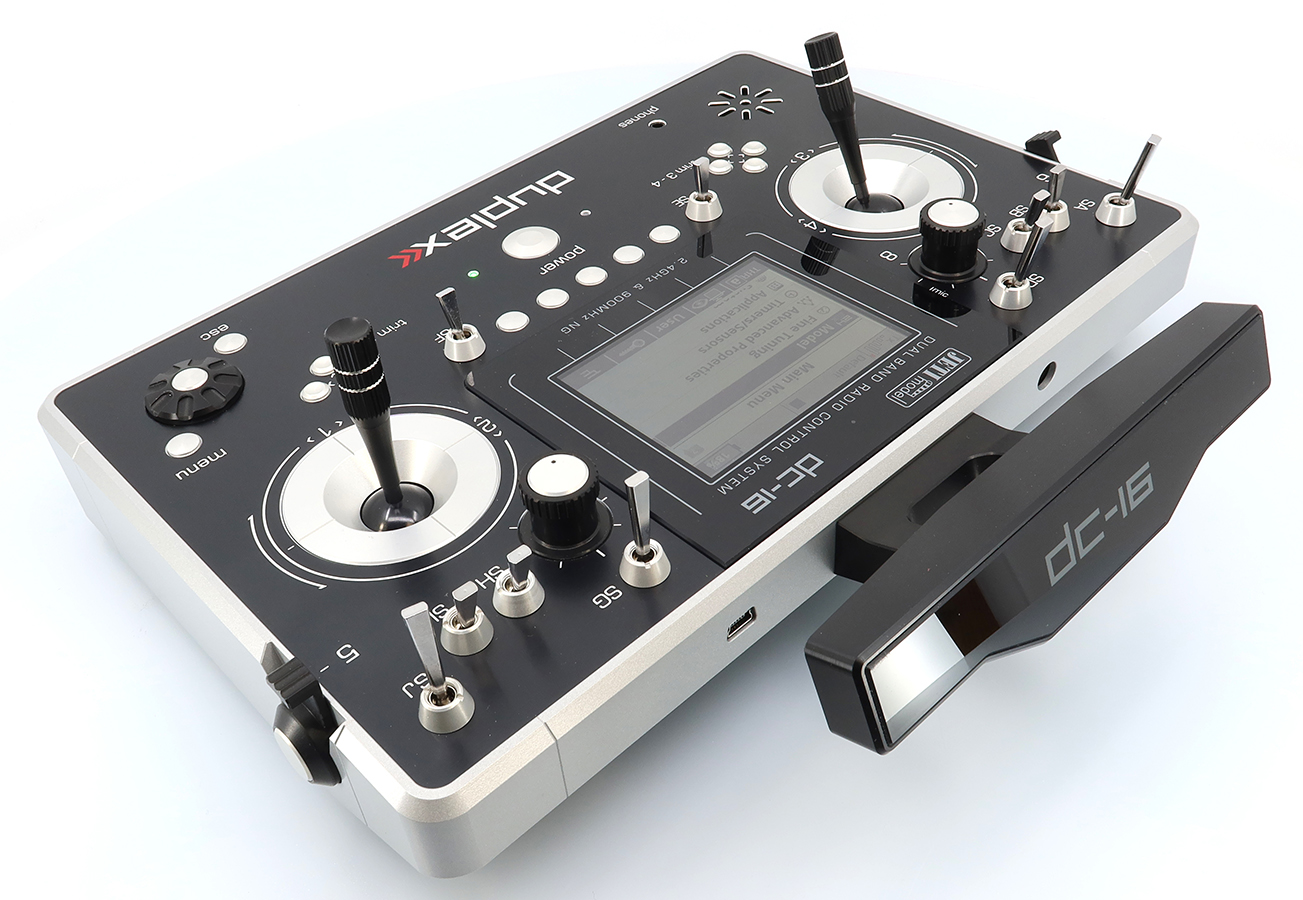

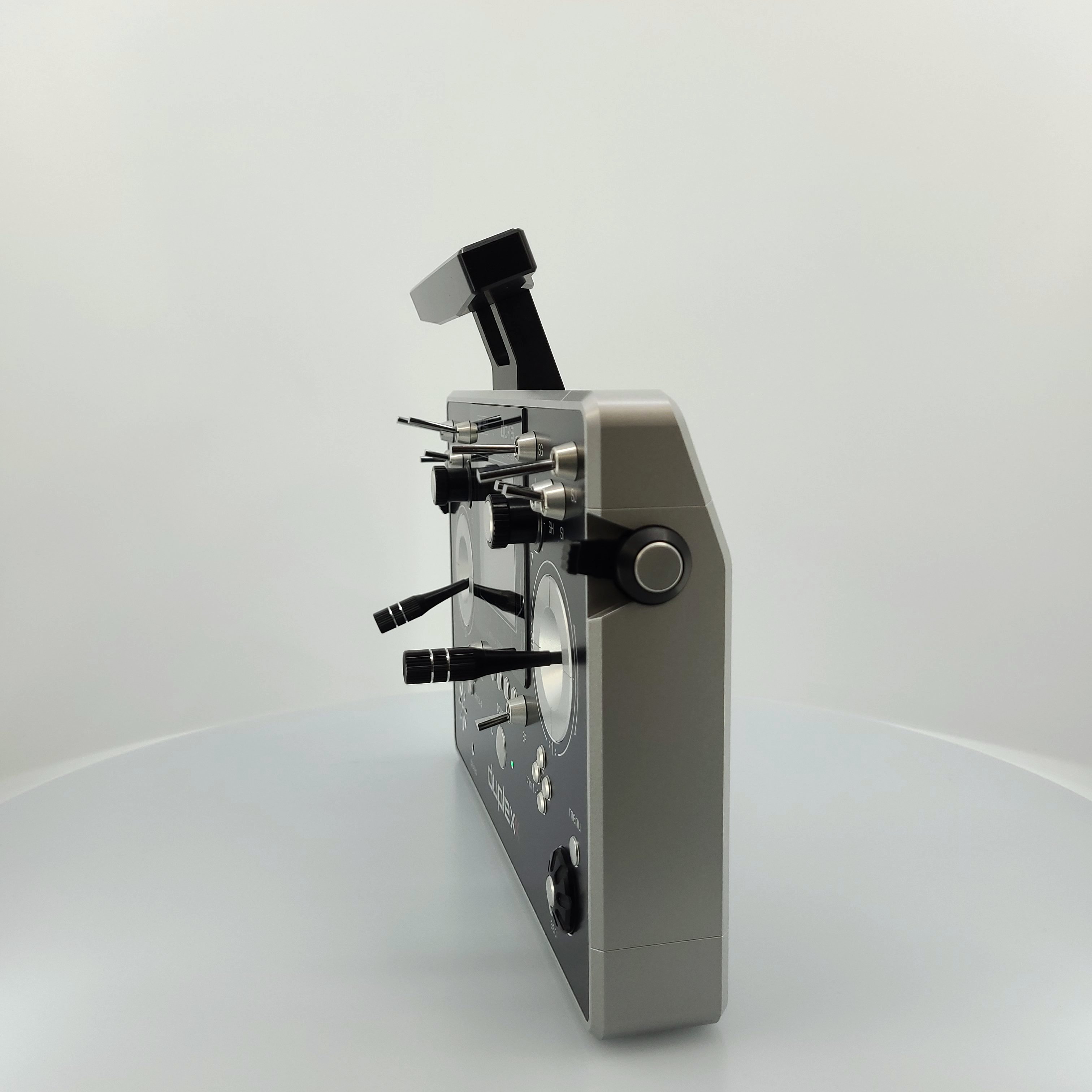

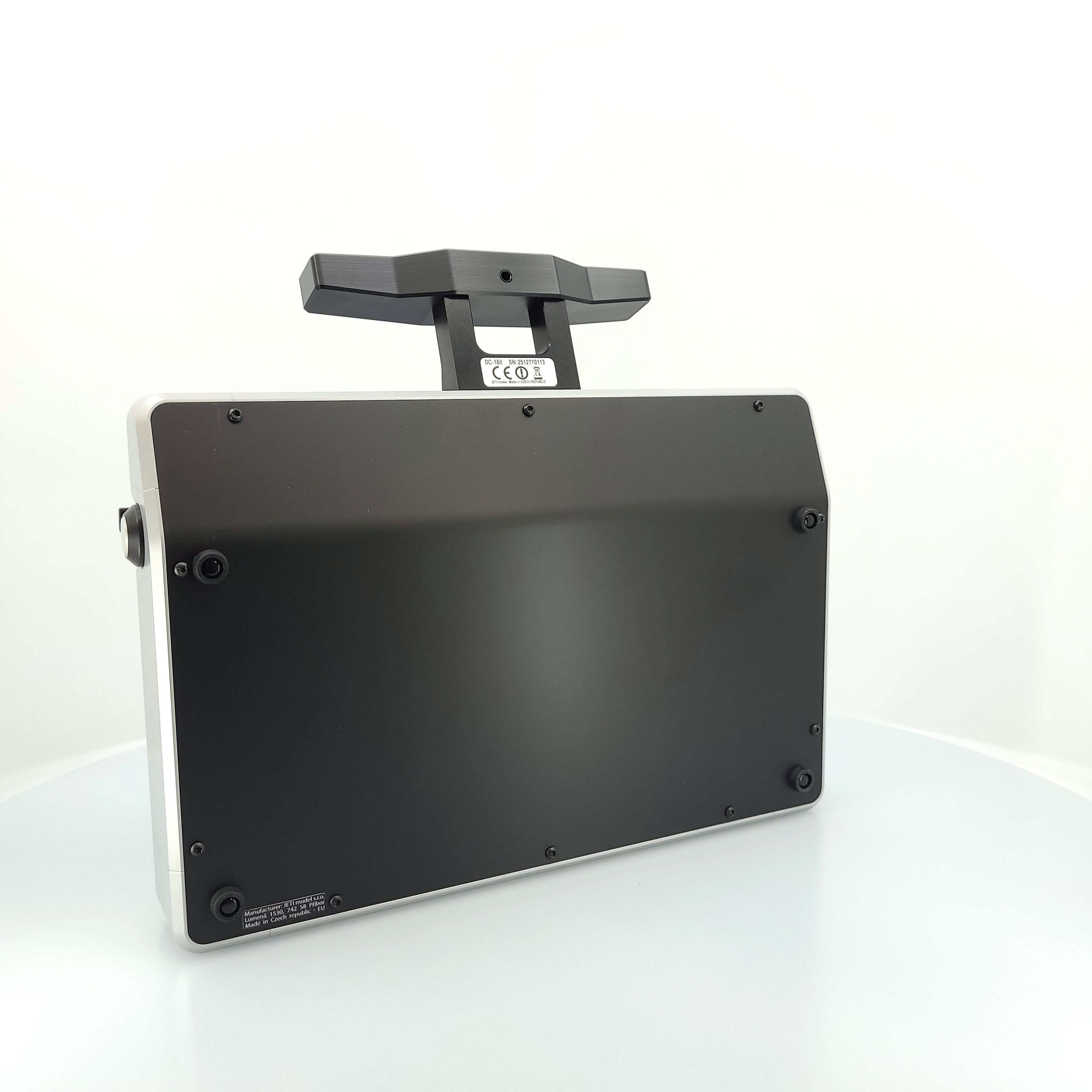

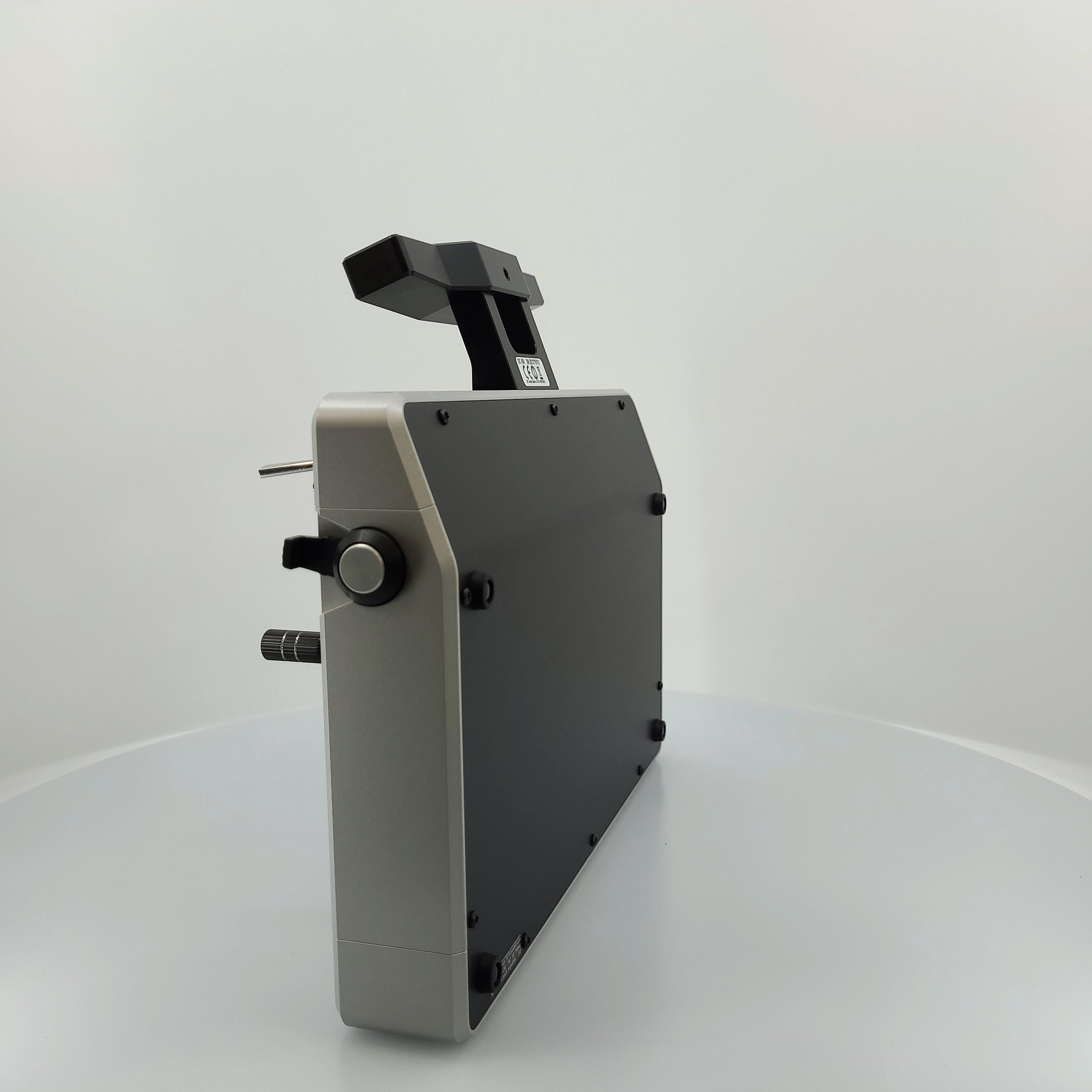

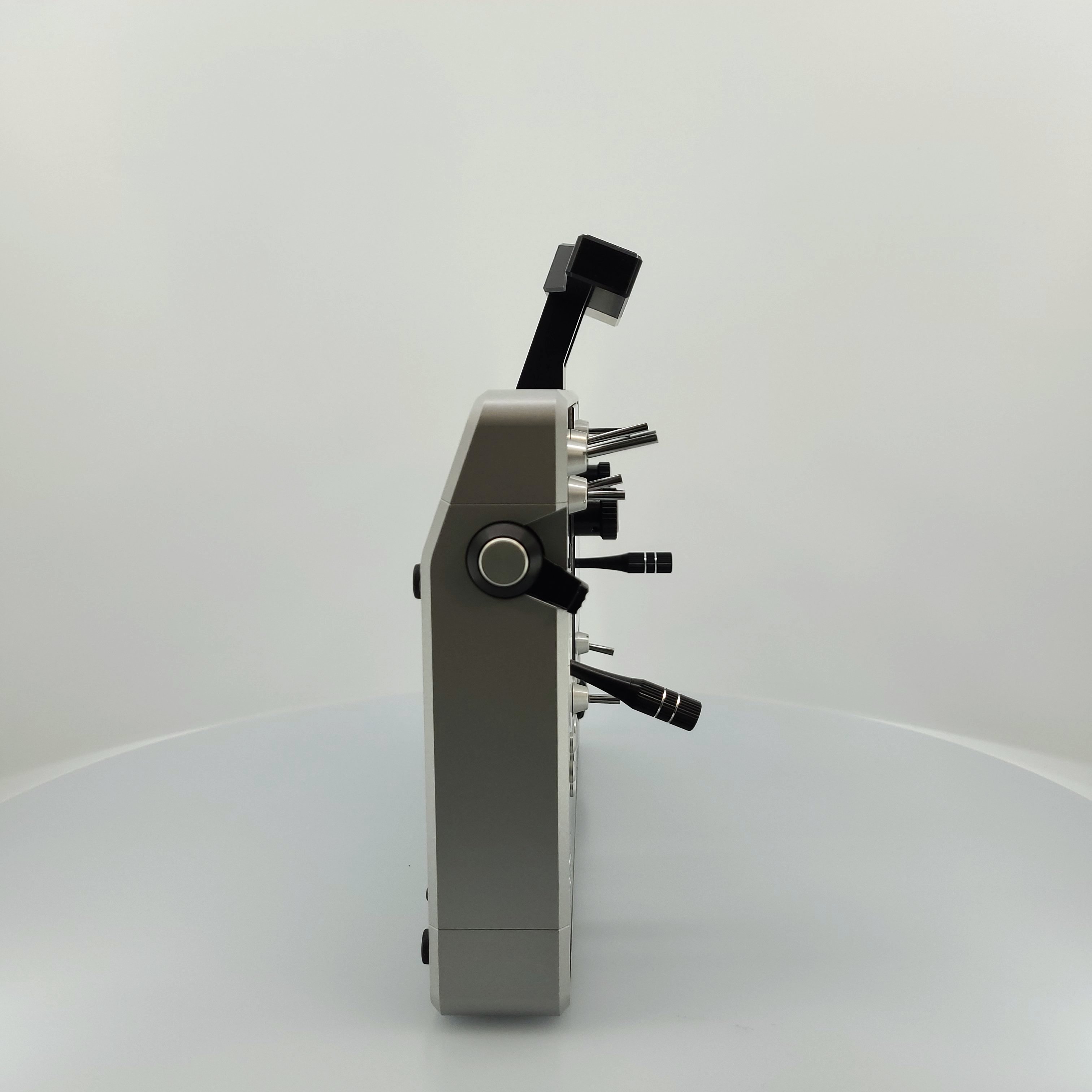

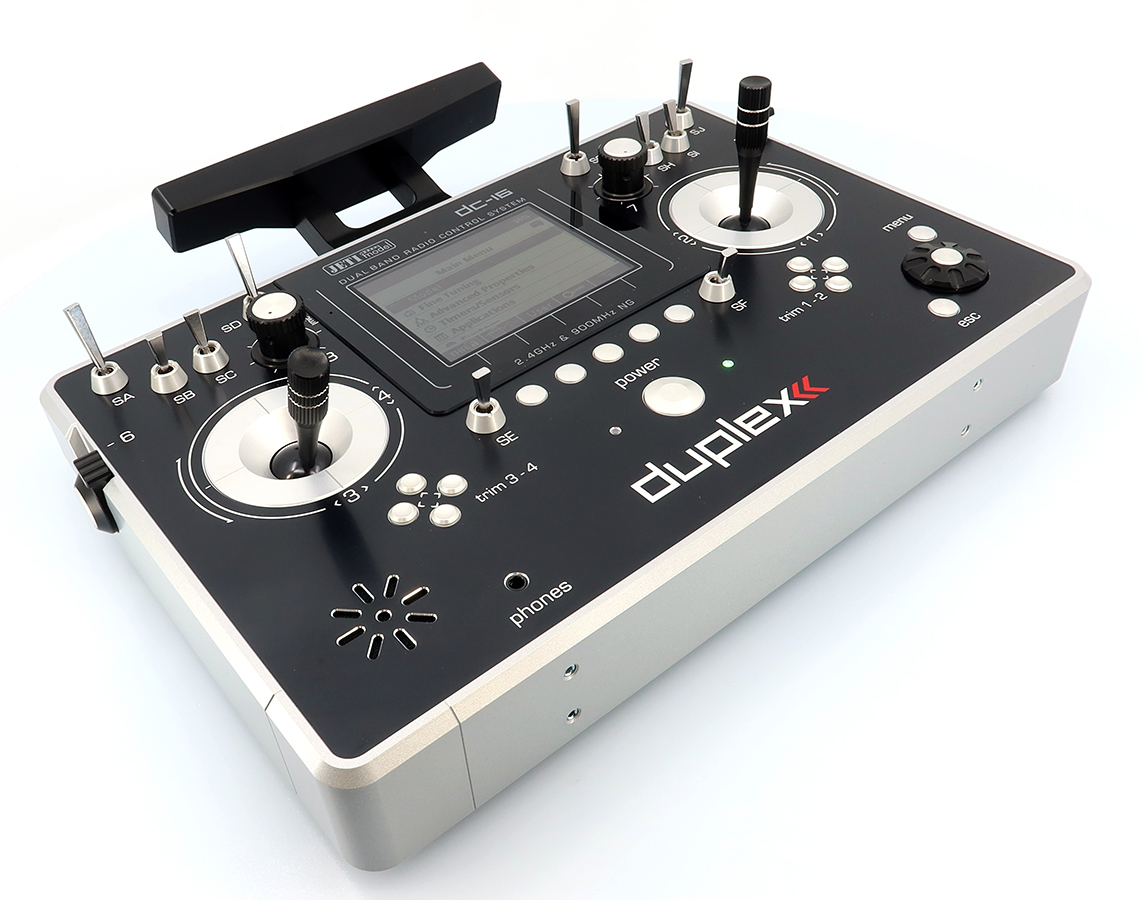

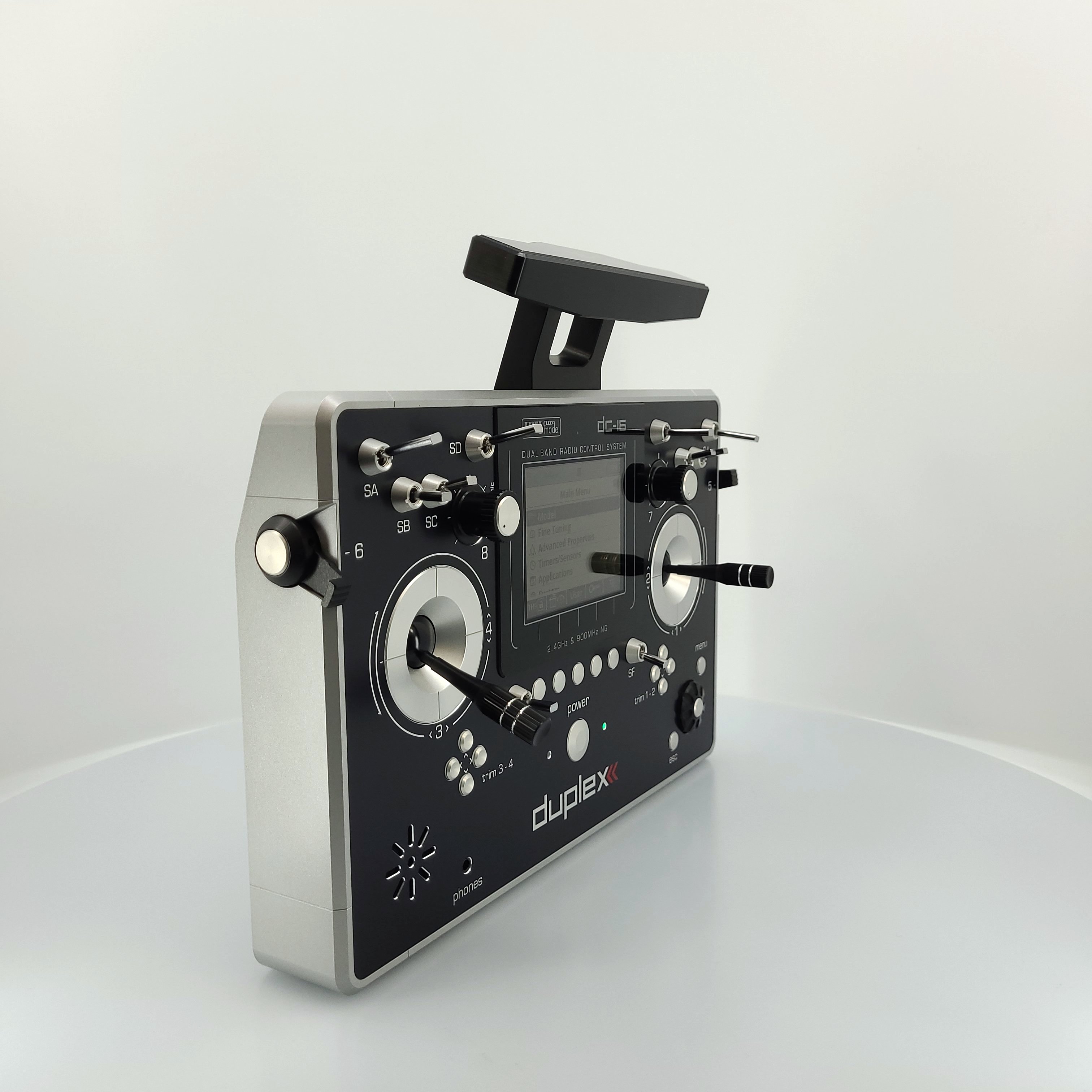

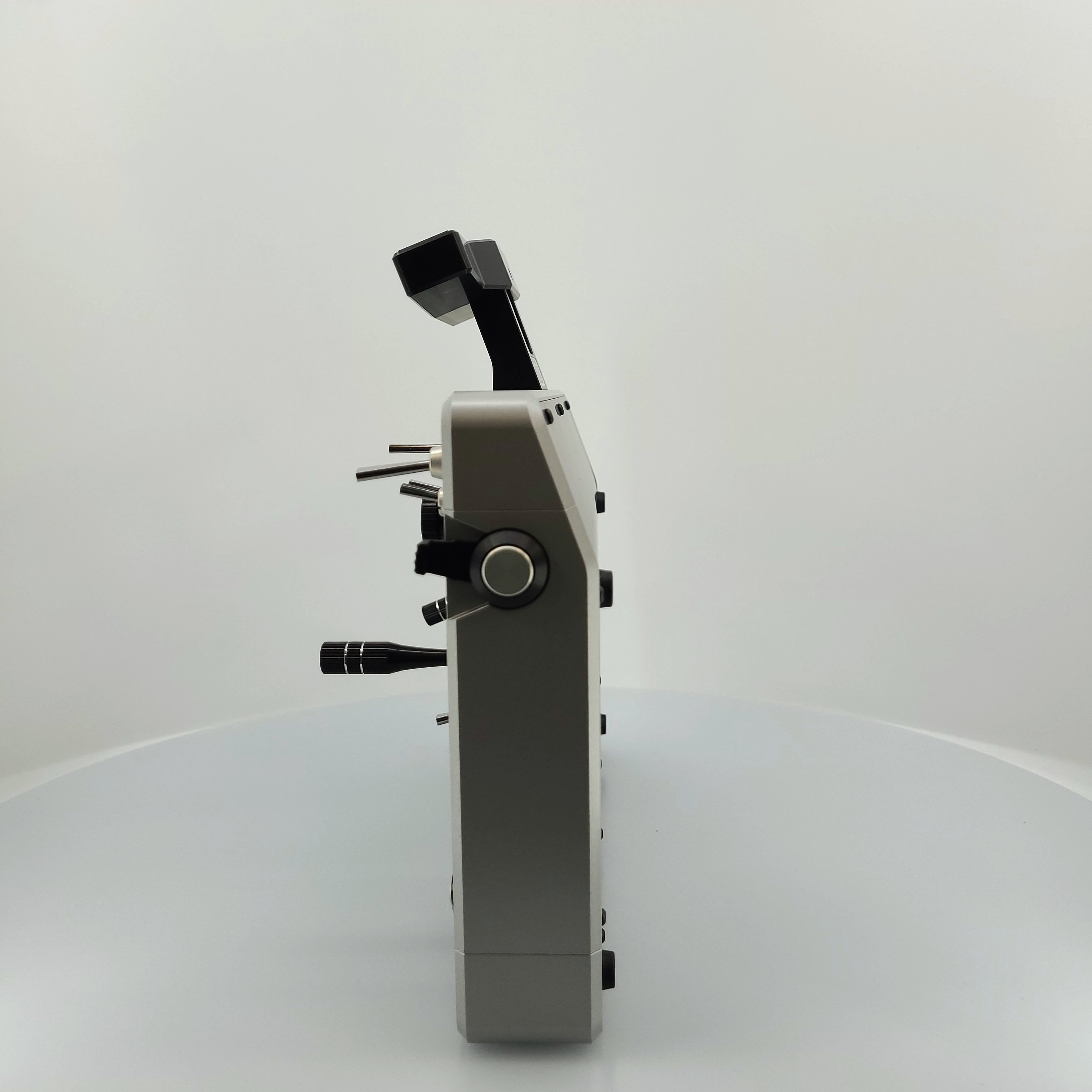

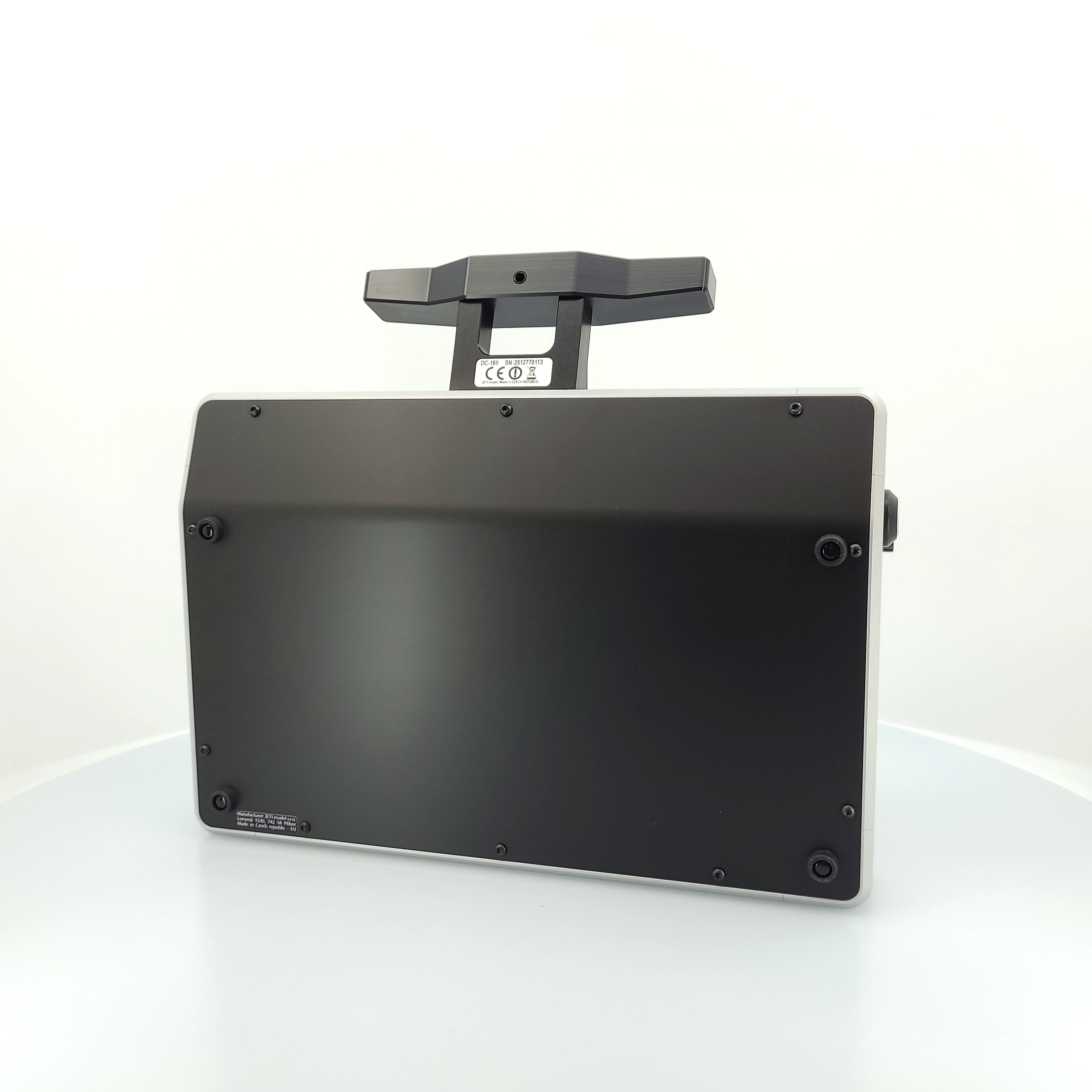

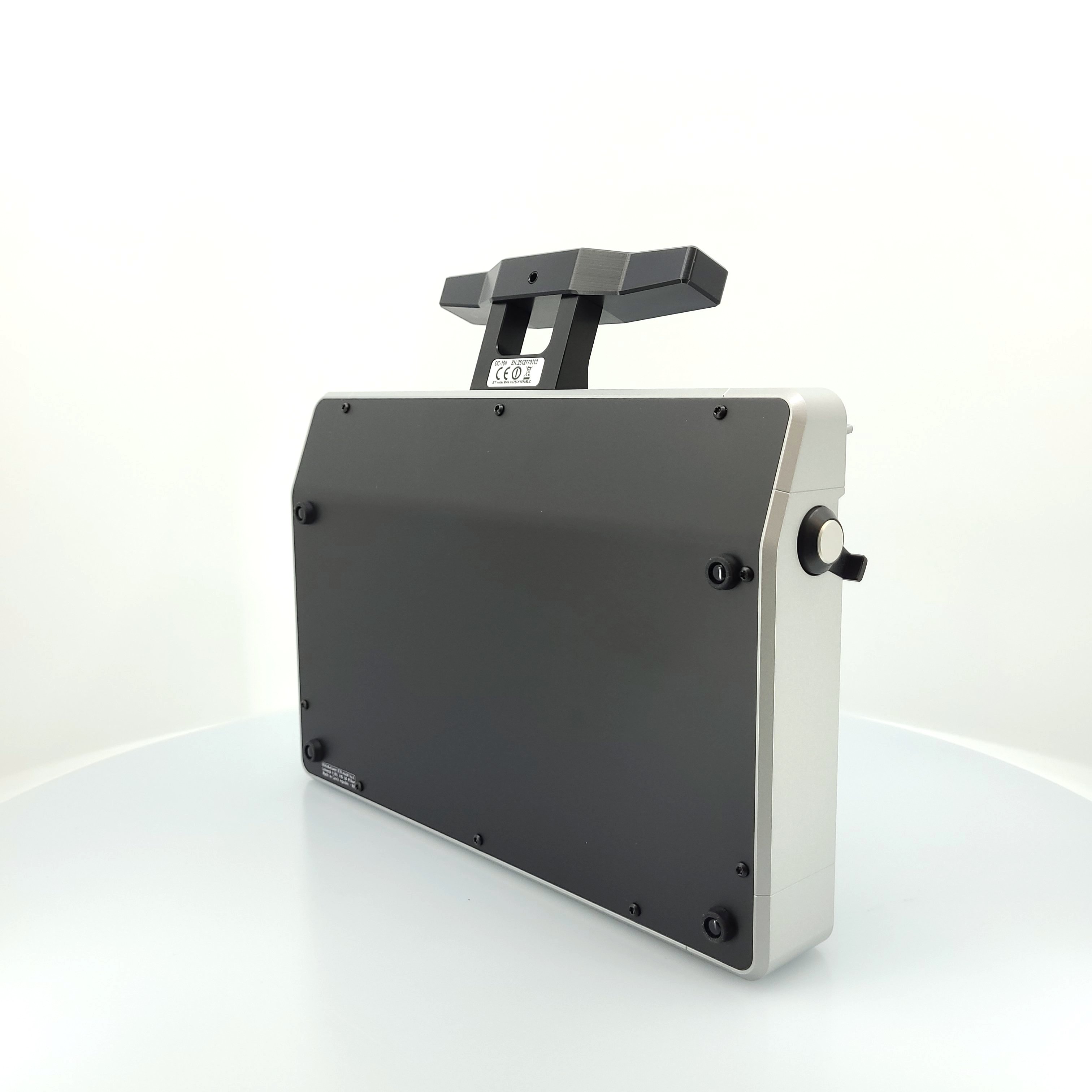

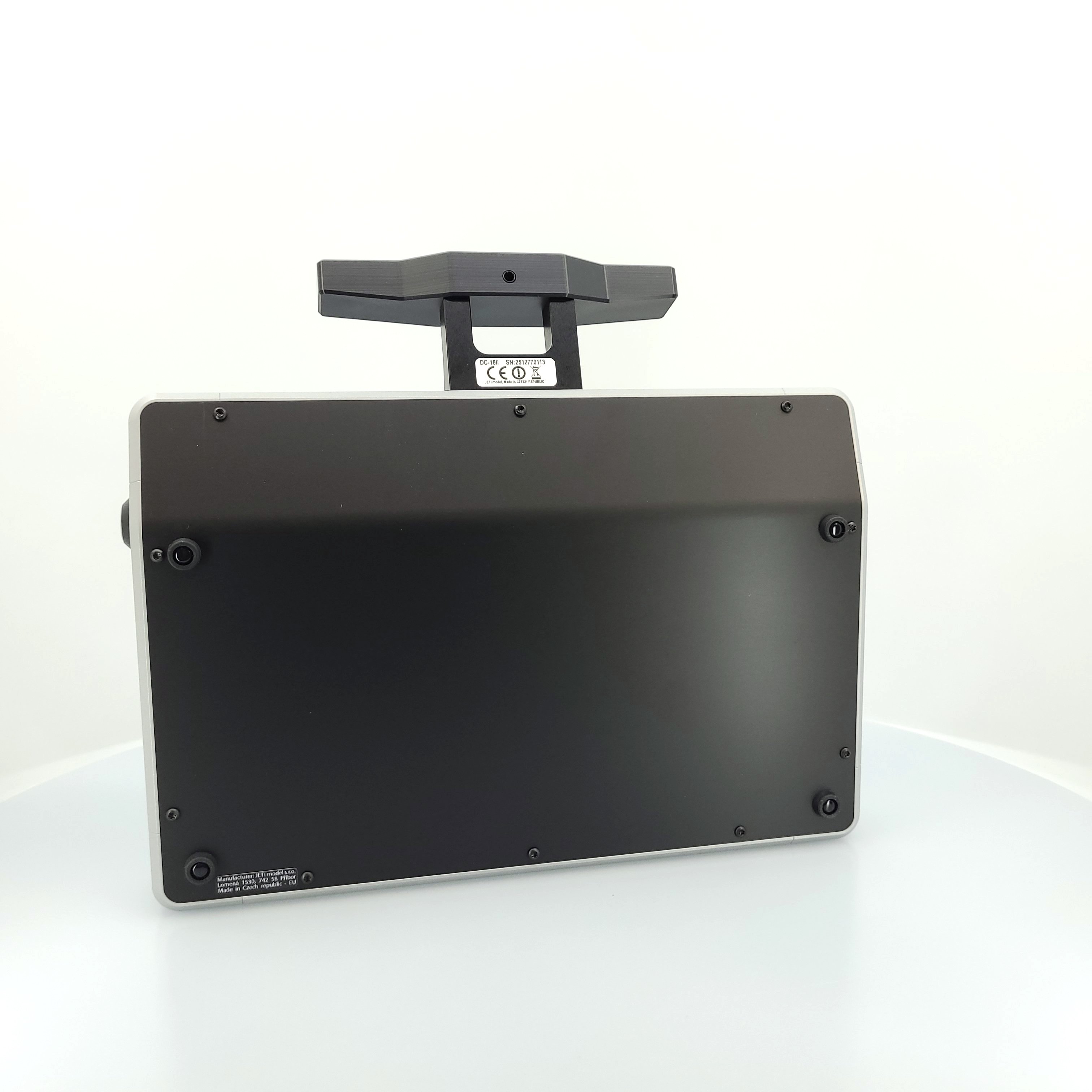

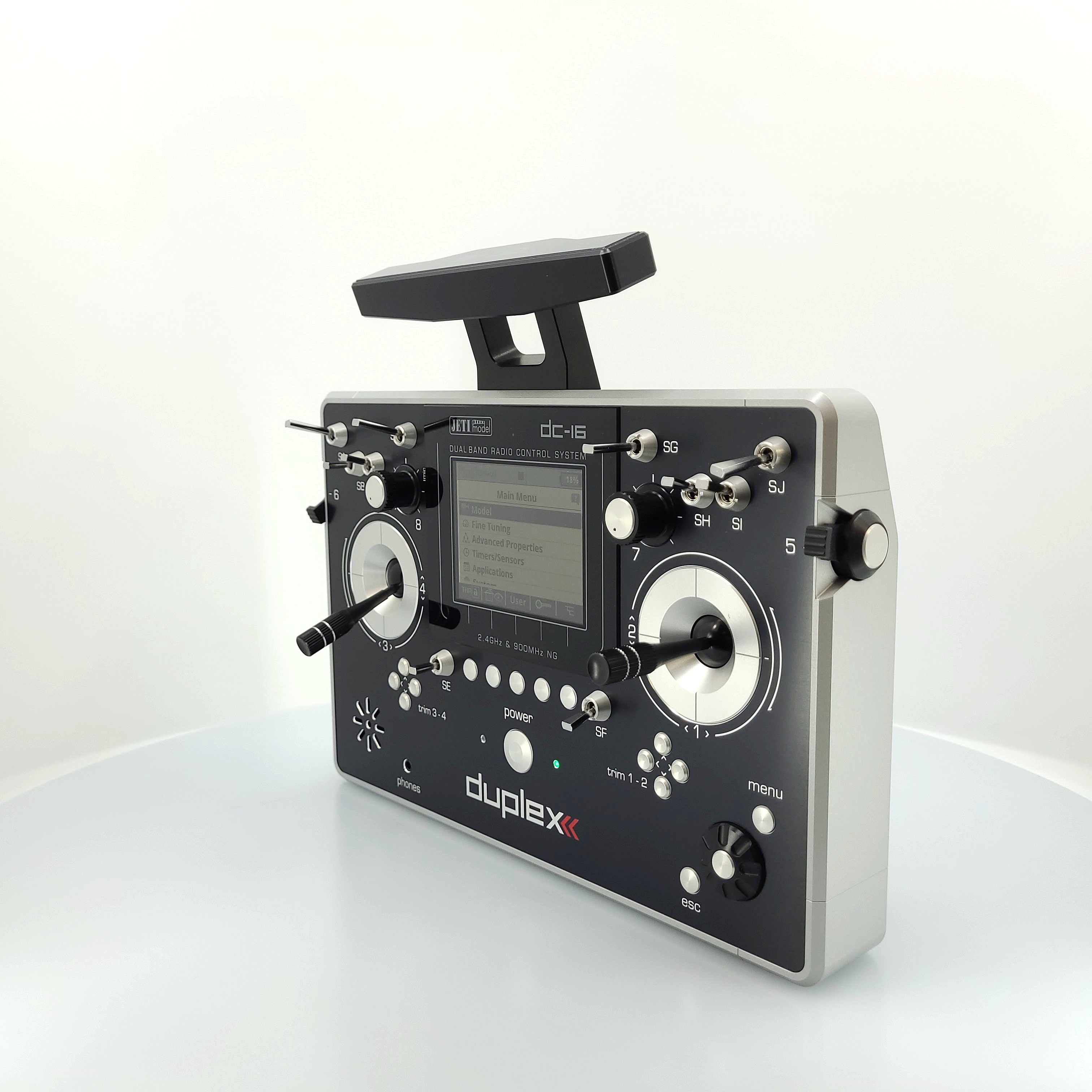

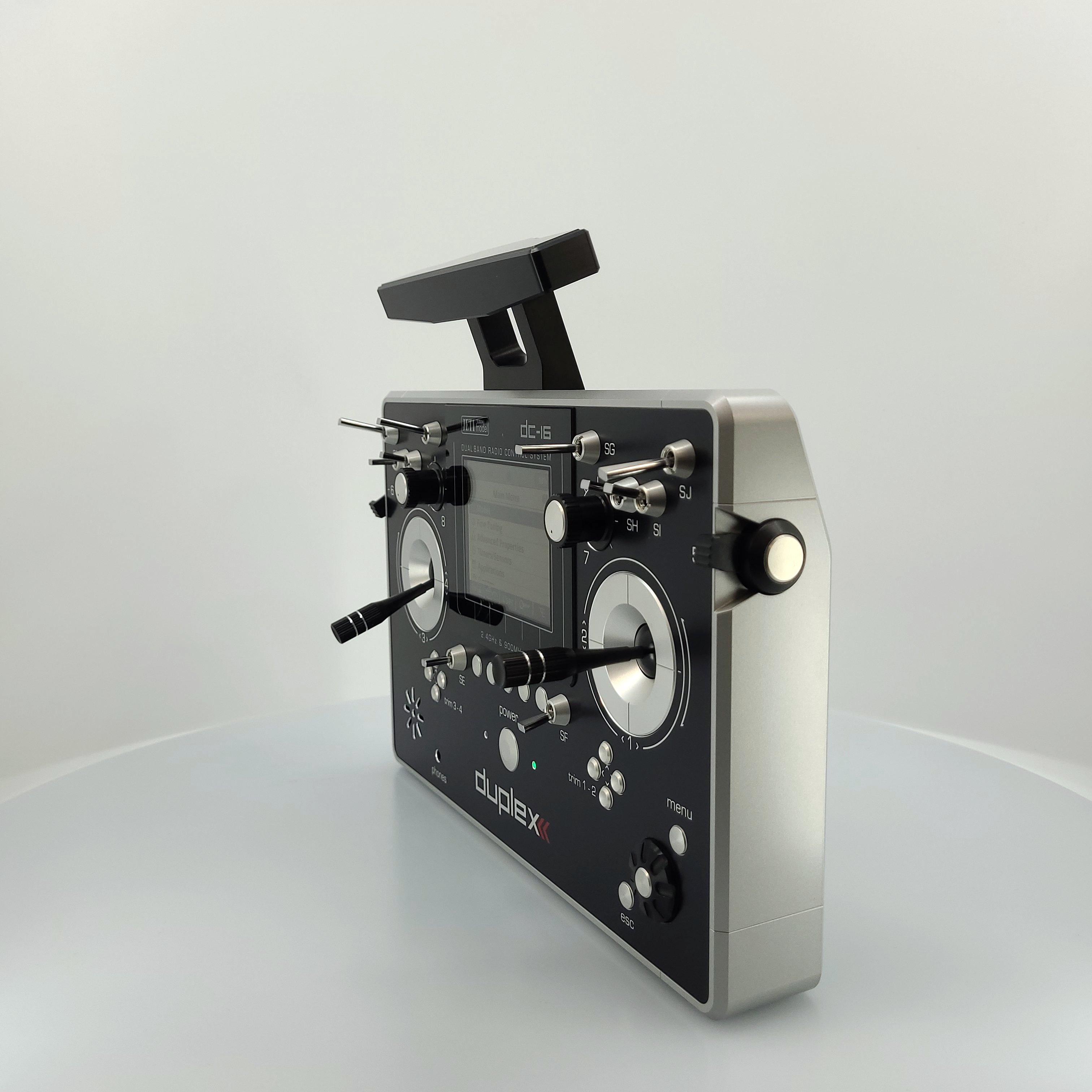

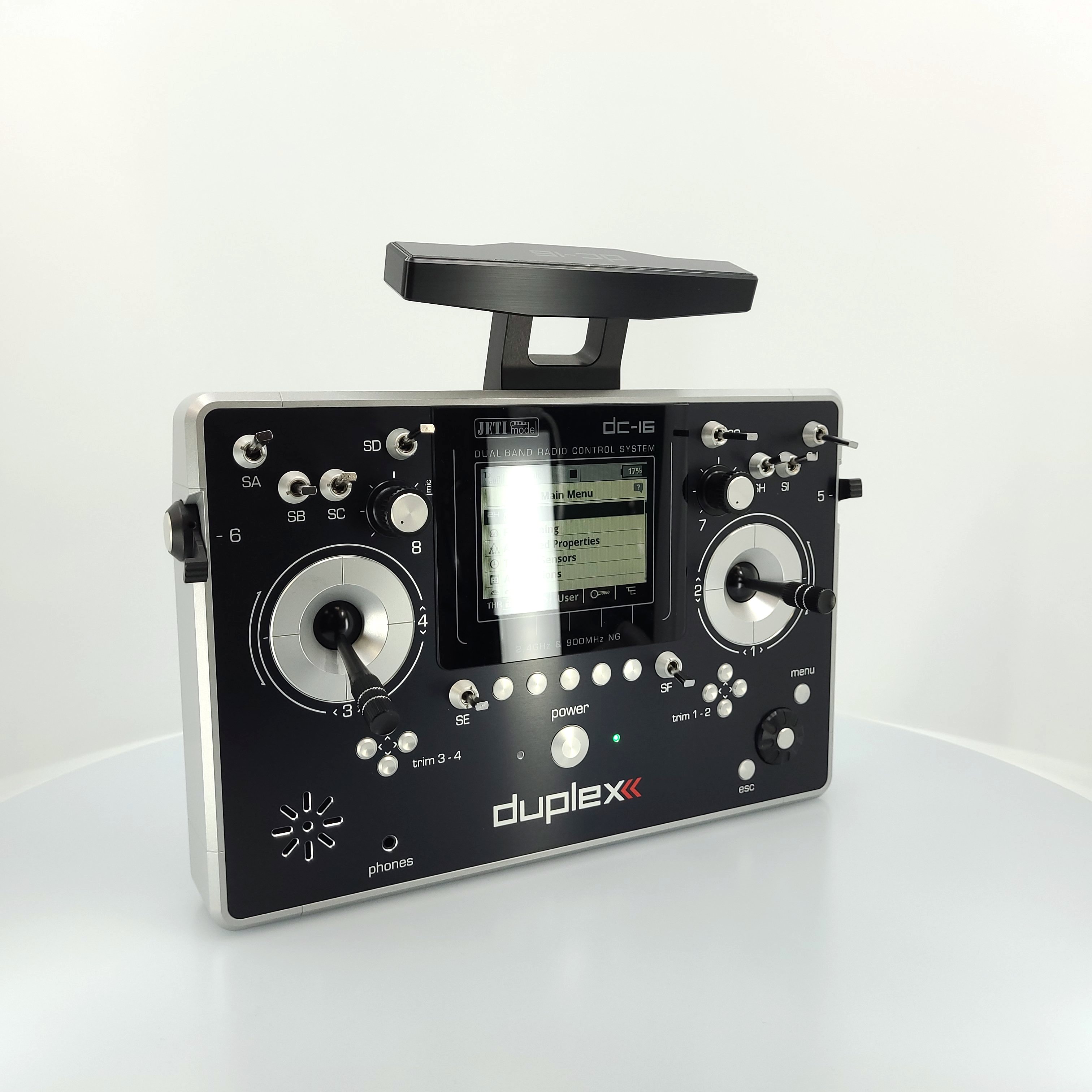

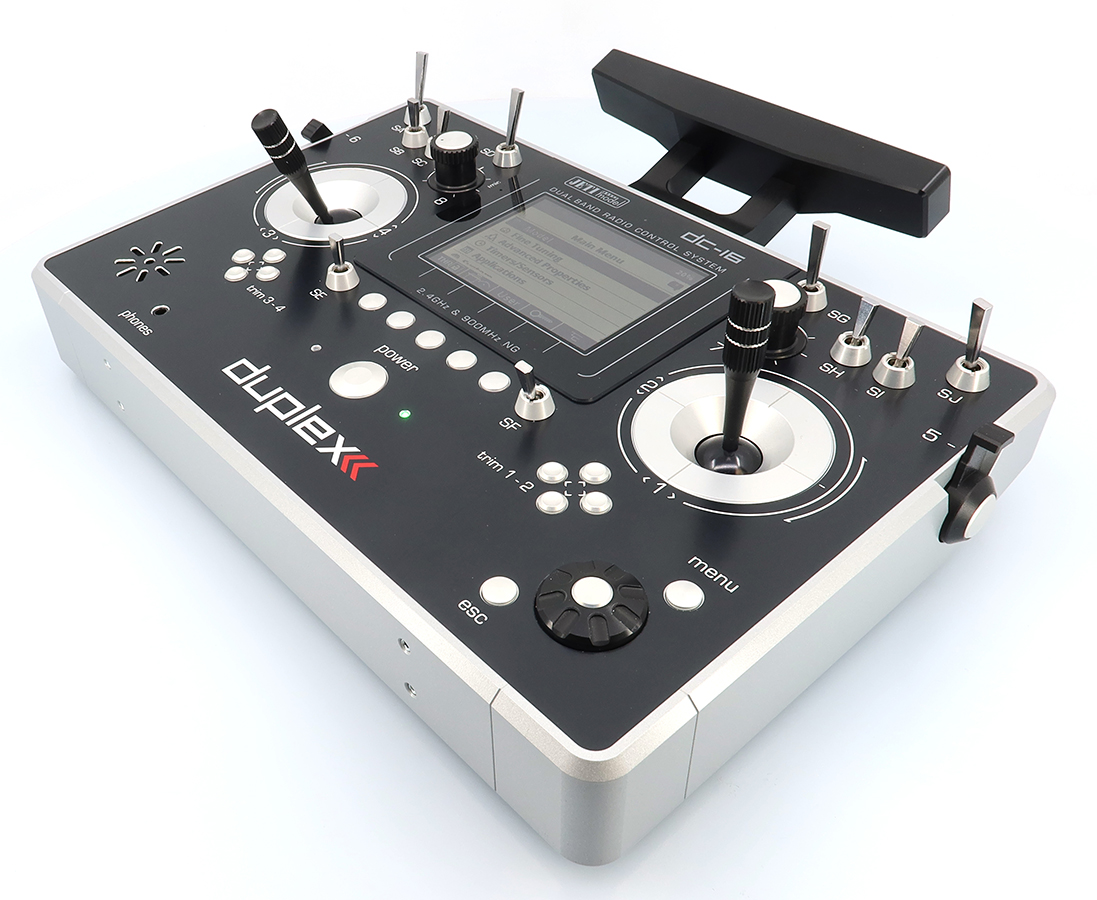

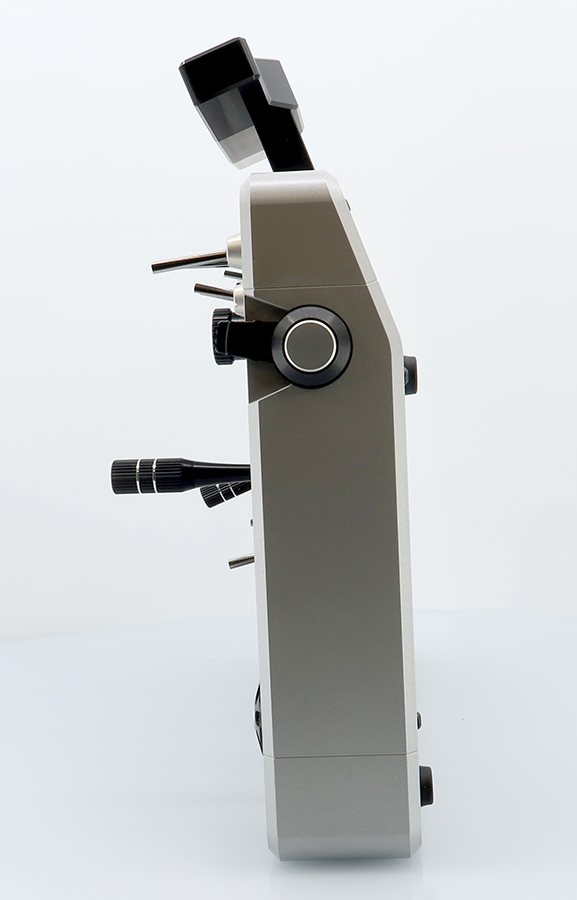

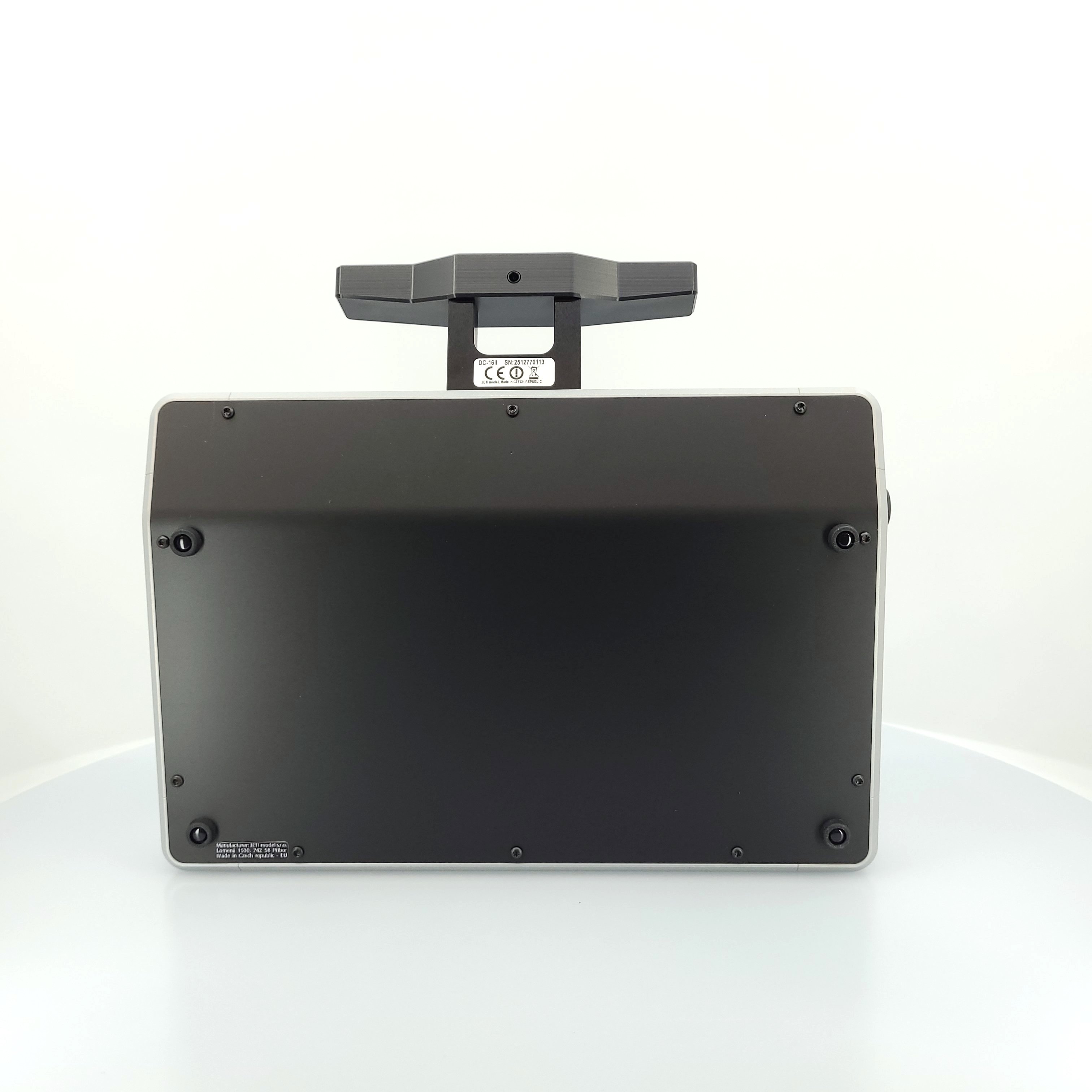

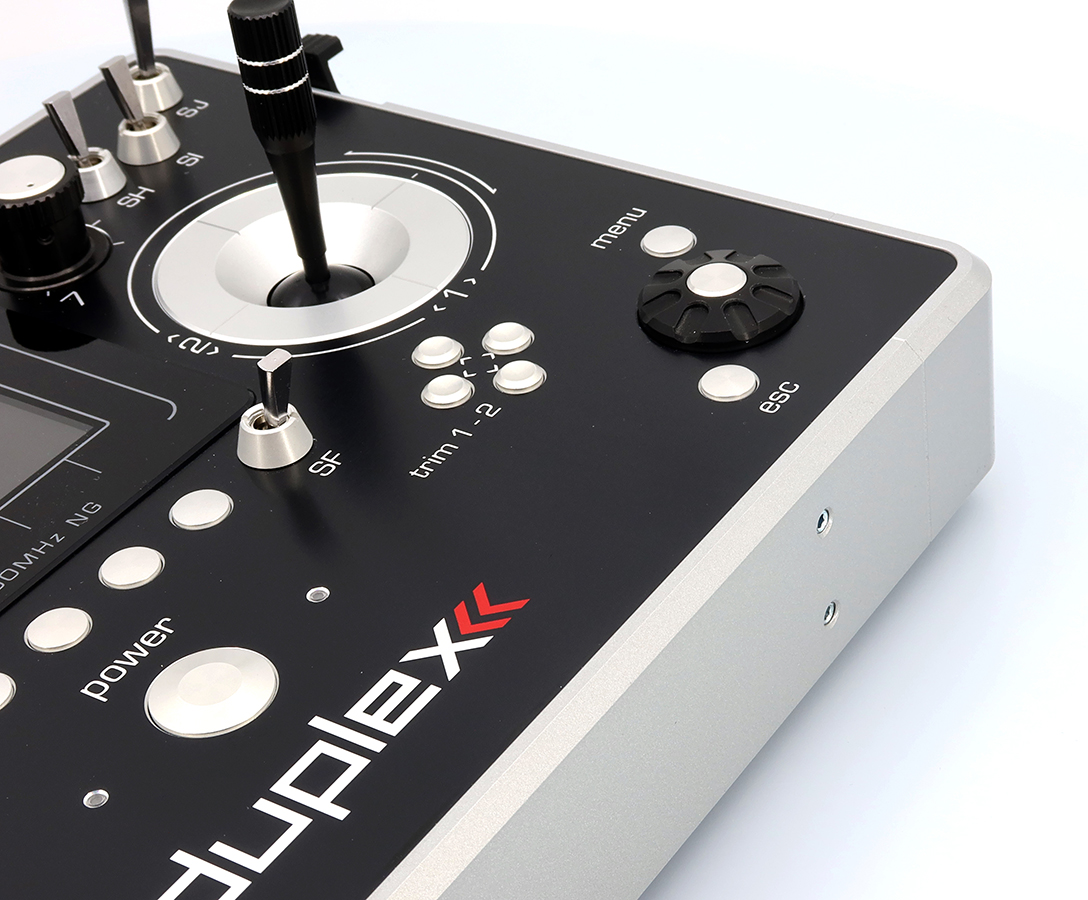

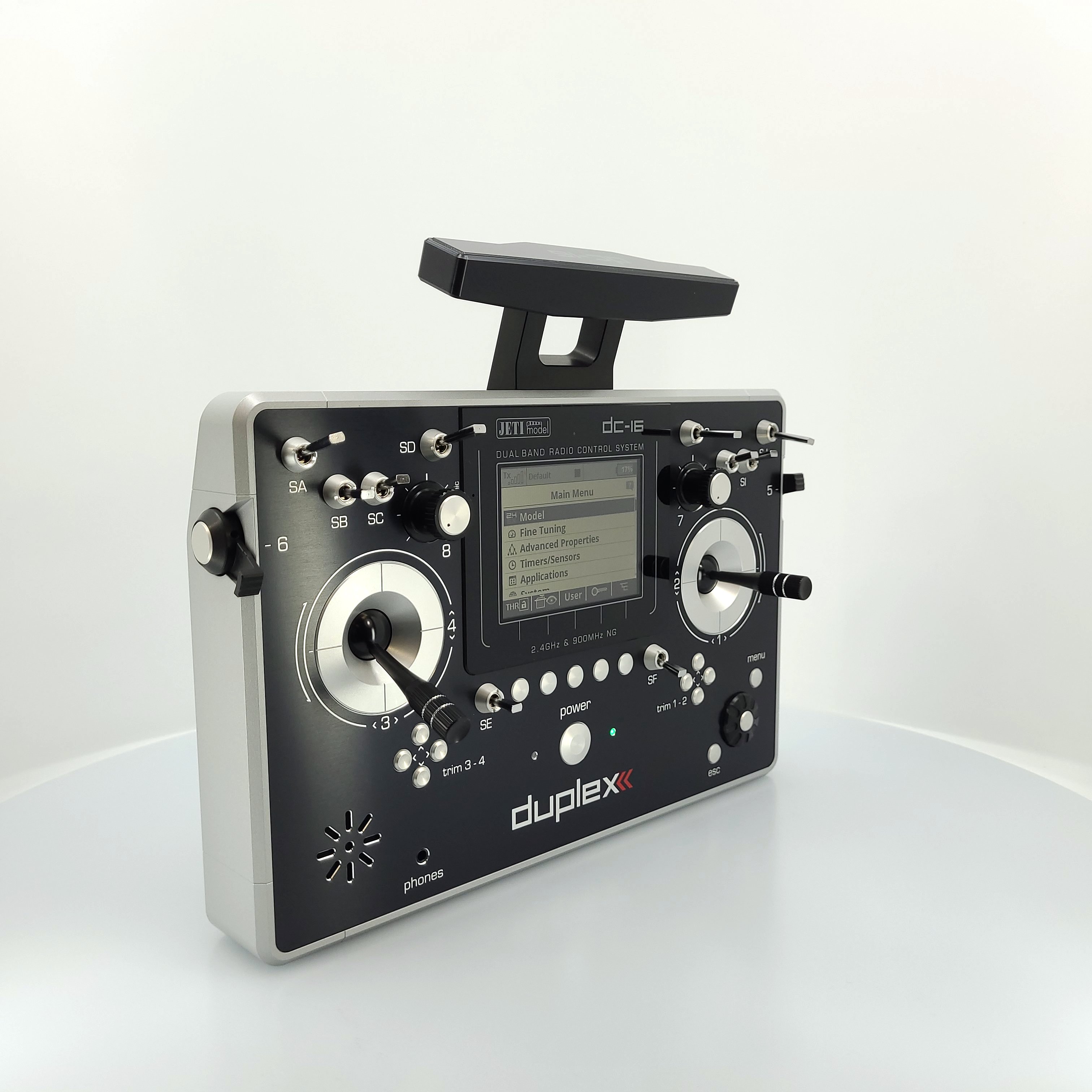

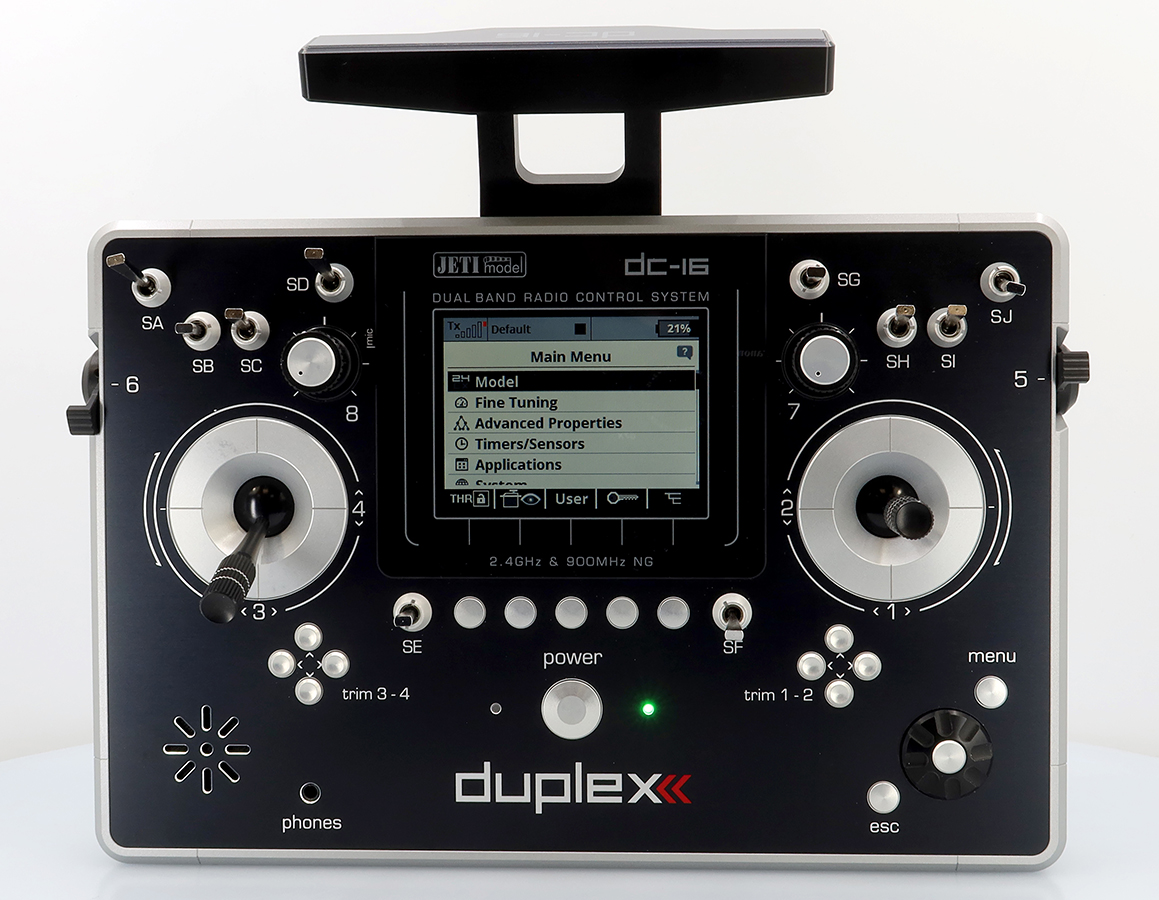

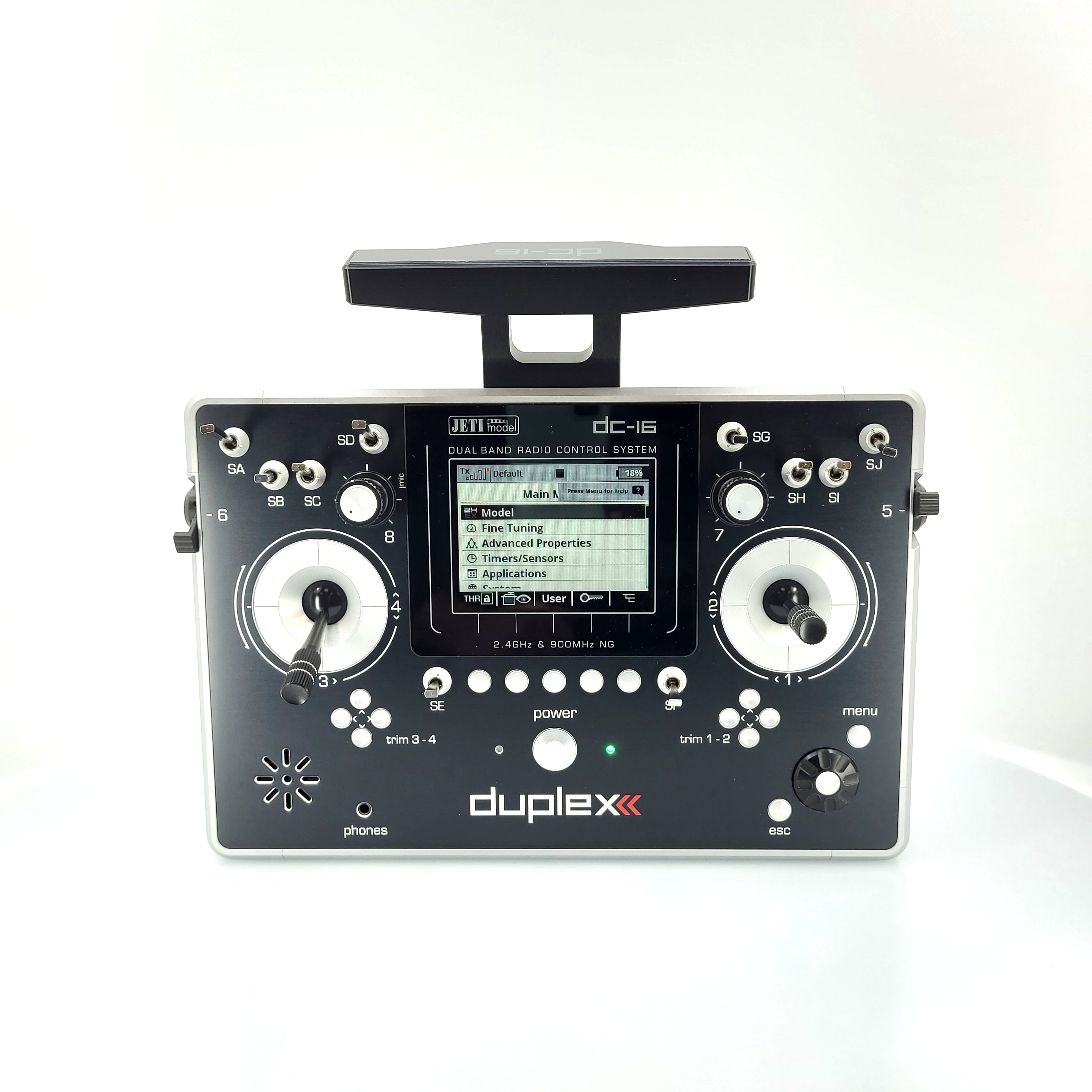

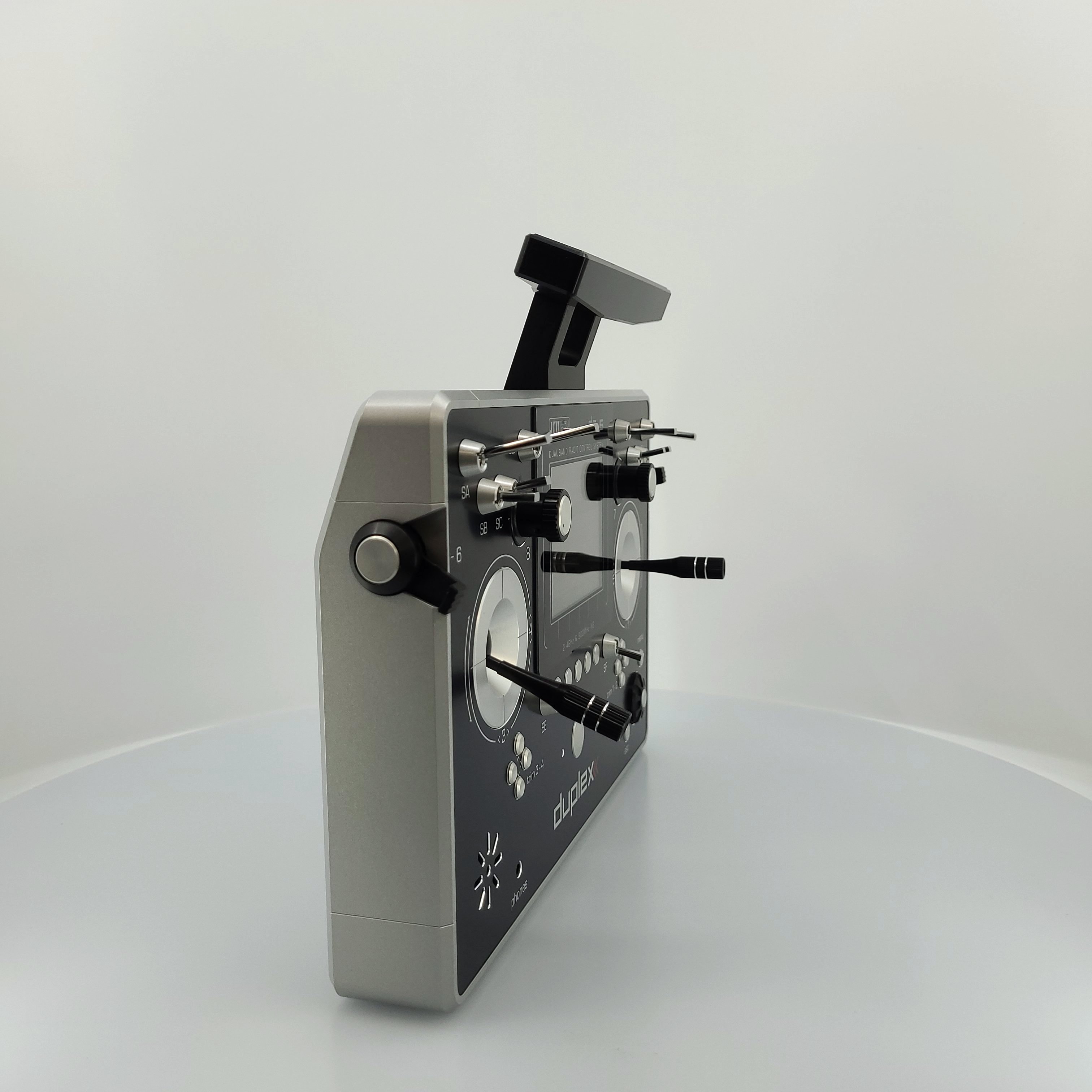

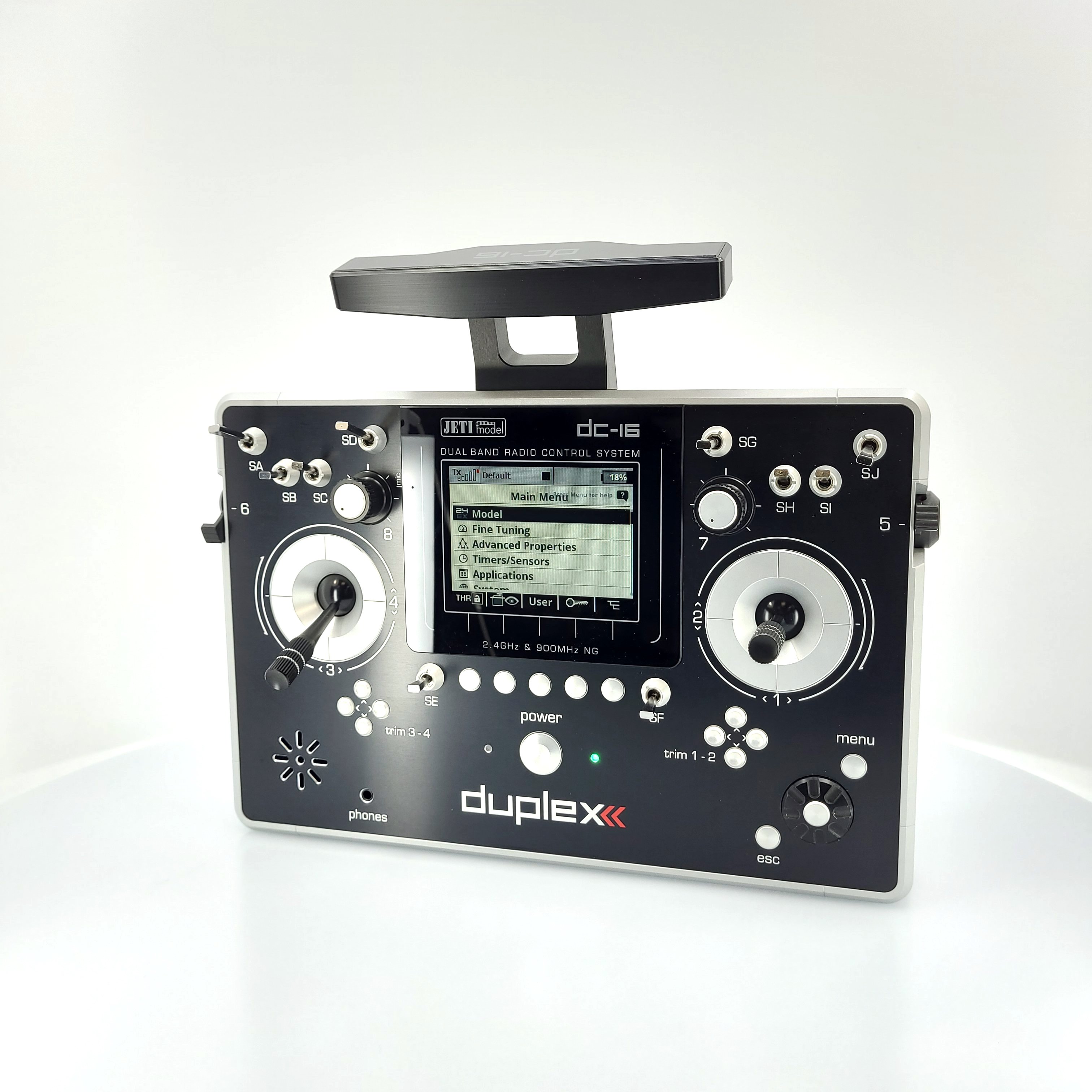

Transmitter Duplex DC-16 II. - Silver
![Transmitter Duplex DC-16 II. - Silver Transmitter Duplex DC-16 II. - Silver](/data/products/4351086_3209__345x345.jpg)
JDEX-TDS16II-S-US
Description
The transmitters of the DS series are designed for thumb control.
These transmitters can be placed in a counter for these transmitters.
They retain all the functionality of the first generation.
In addition, they have:
• color display
• support MP3 files
• internal microphone
• voice commands (as an extension)
• back-up RF 900MHz NG module (as an extension)
• the package includes a REX 10 receiver and a strap
Parameters
Weight [g] | 1200 |
---|---|
Transmitter Aluminum Case | Yes |
Transmitter Battery Pack (mAh) | 6200 |
Backlit LCD | 3.5 |
Memory, SD Card | 8GB |
Gimbal Hall Sensors/Vibration | Yes / No |
Stick Resolution | 4096 |
Transmitter Frame | Aluminum |
Gimbals & Buttons | Aluminum |
Number of antenas 2.4GHz/900MHz | 4 / 1 |
Dimensions [mm] | 194 x 233 x 40 |
Output Power - 2.4GHz [mW] | 100 |
Operational temperature [°C] | - 10 to 60 |
Channels | 24 |
Control Inputs (Stick/Switch/Knob) | 16 |
Backup Module 900MHz | upgradable |
Flight Modes | 10 |
Free Mixes | 20 (to 25) |
Data Graphs | Active |
Audio Player | Active |
Logical Switches | 16 (up to 24) |
Number of Remote Commands | 16 (up to 24) |
Servo Sequencer | 6 (up to 10) |
Timers | 10 |
Displayed Telemetry Values | 40 |
Sound on Events | 20 (up to 30) |
Alarms | 40 |
Vibration Alarms | No |
Voice Output | Active |
MP3 | Active |
Microphone | Active |
Gyro Settings | 3 |
Servo Balancer | Active |
Function Curves | Active |
Throttle Limiter (heli) | Active |
Variometer | Active |
Flight Mode Trim | Active |
Data Stream Logging | 80 |
Telemetry Controls | 8 |
Voice Commands | 0 (up to 15) |
Lua Apps | 10 |
Ditex Servo Telemetry | Active |
Double Path | Active |
Accelerometer | Active |
RF modules 2.4GHz/900MHz | 2 / 1 (next generation) 863 - 870 MHz (EU), 902 - 928 MHz (US) |
Control Inputs (Stick/Switch/Knob) | 16 |
