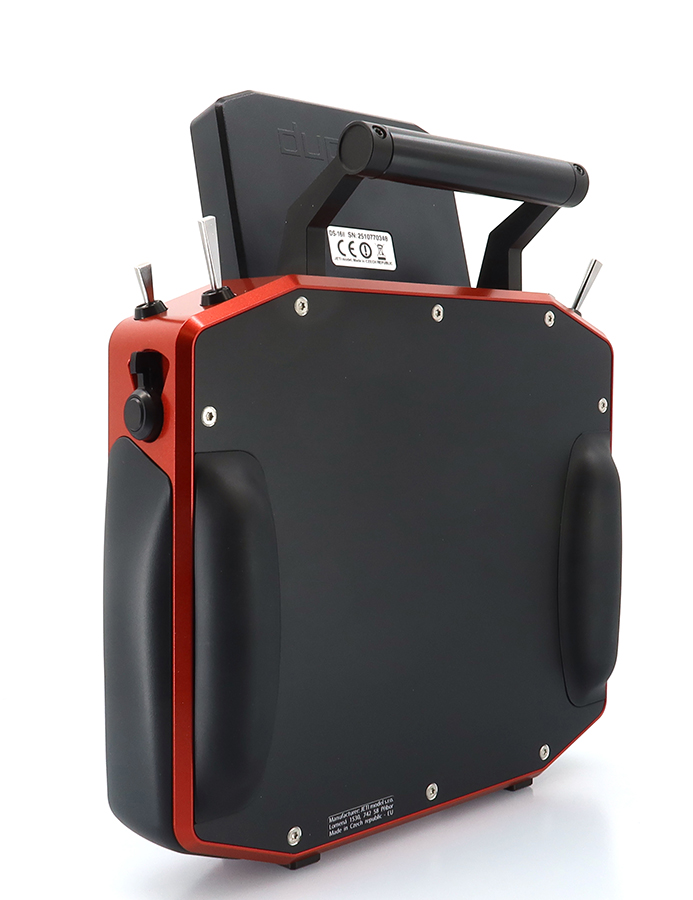

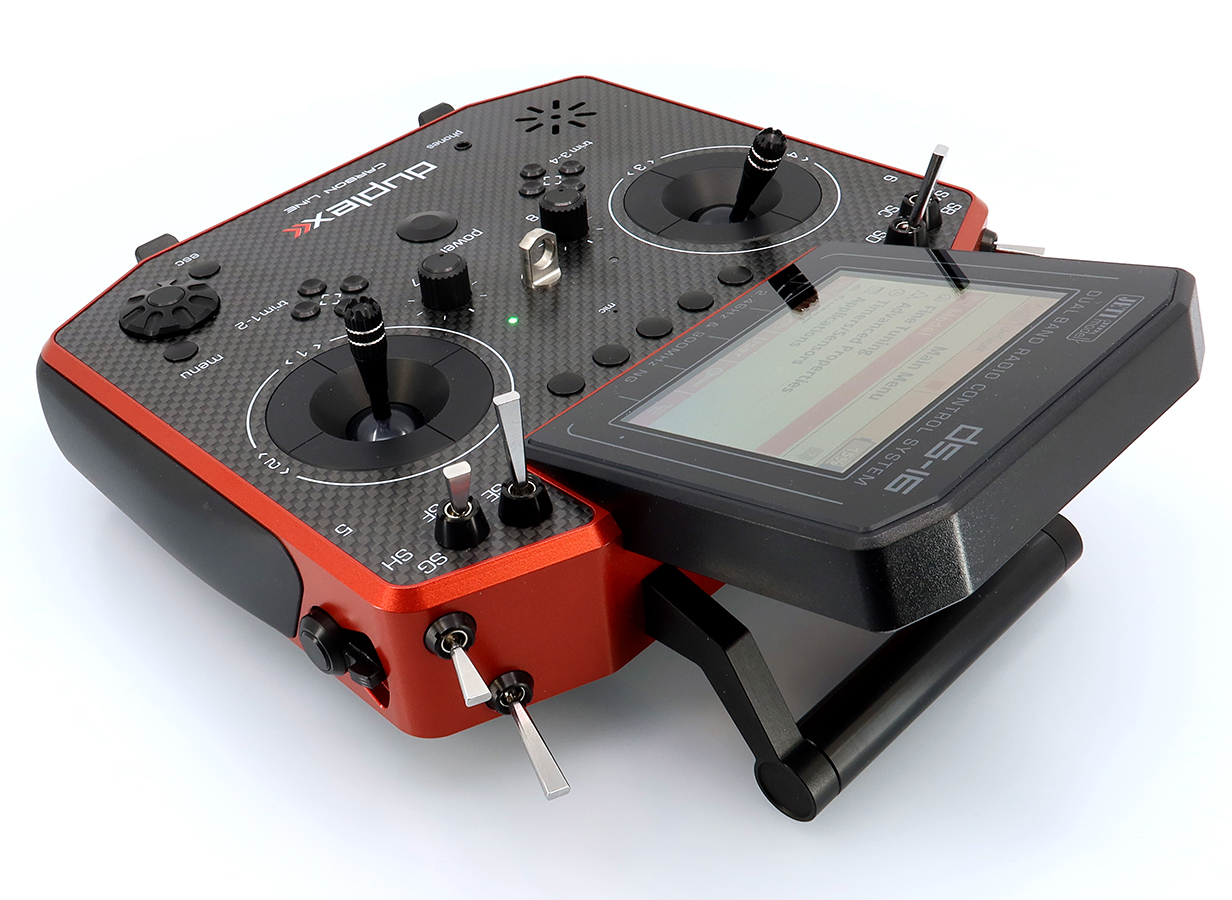

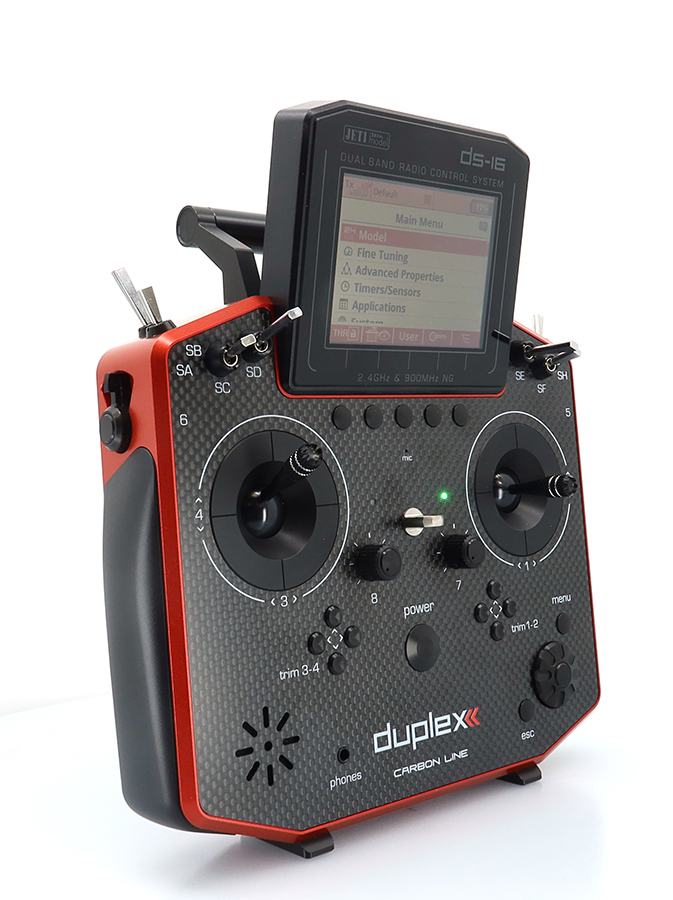

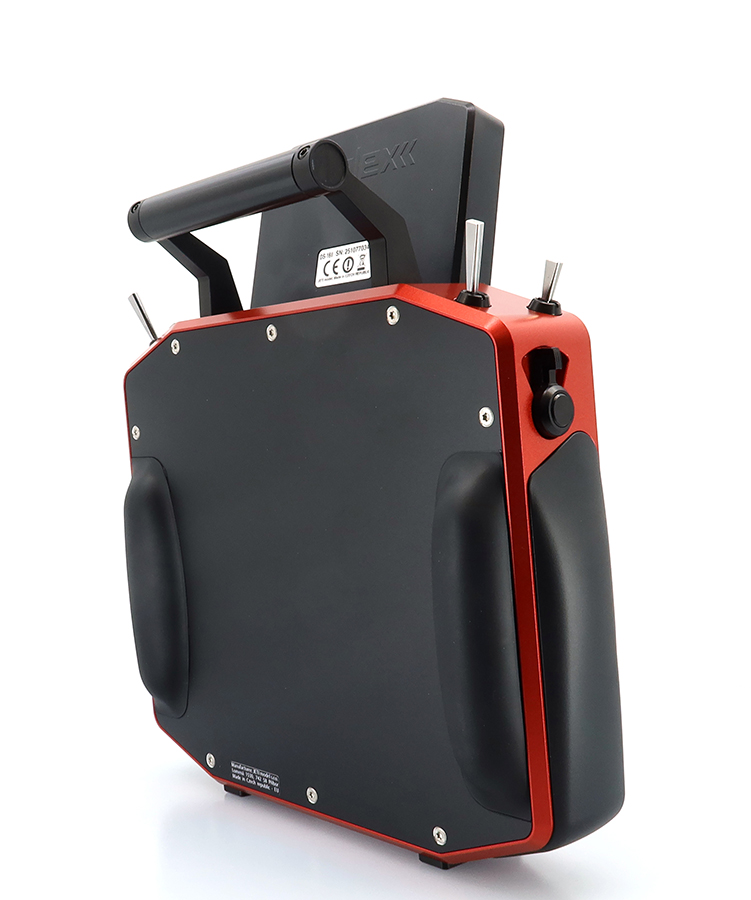

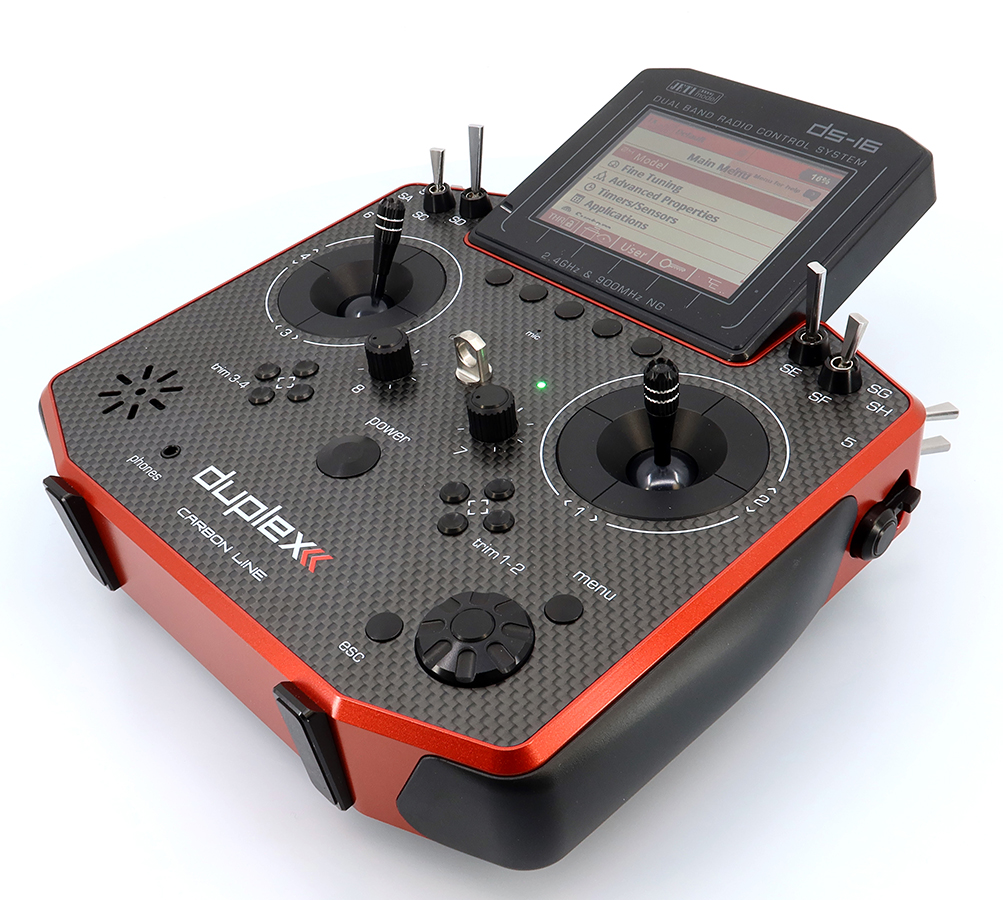

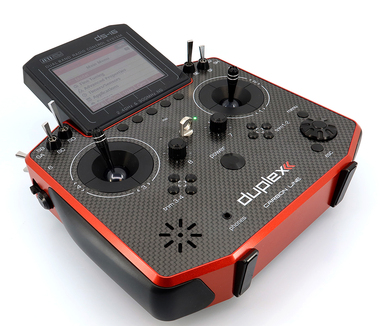

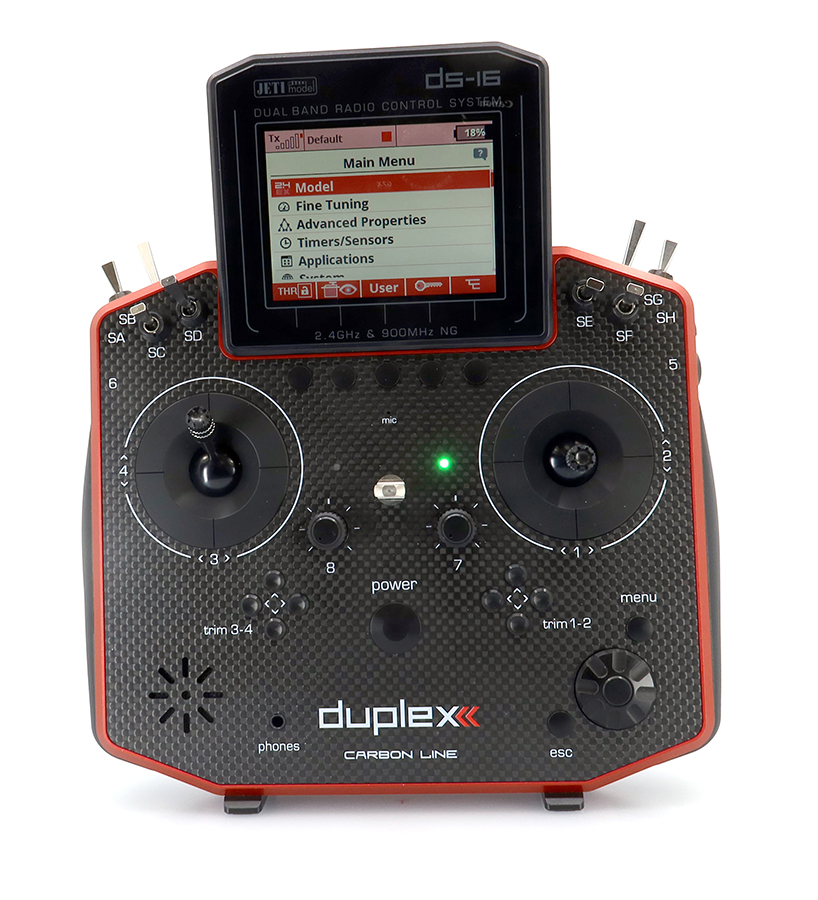

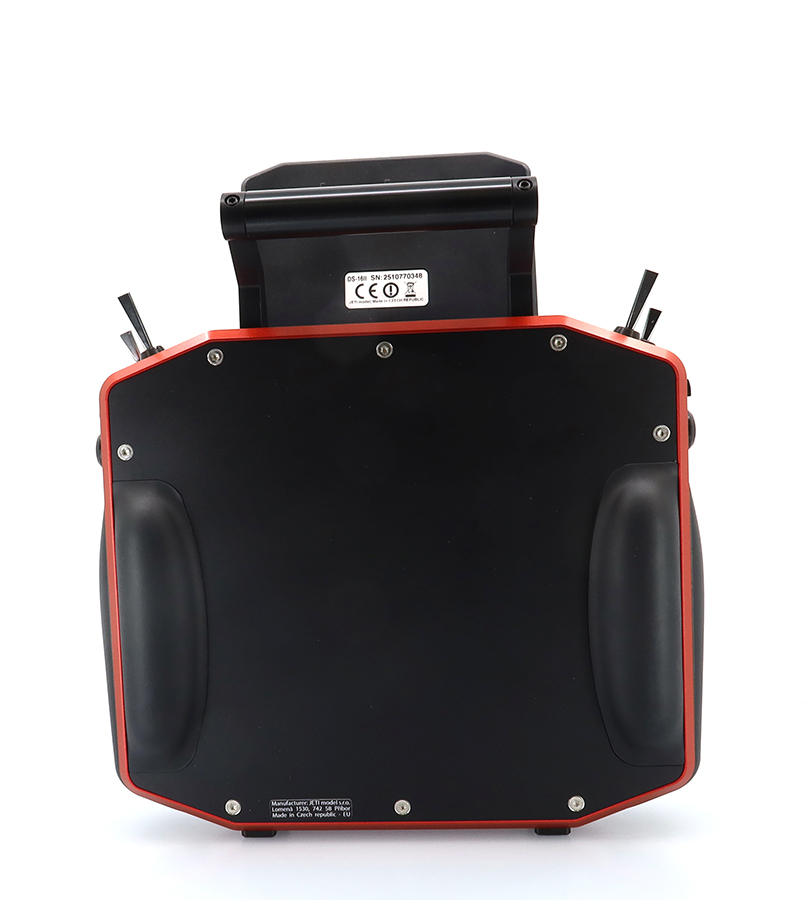

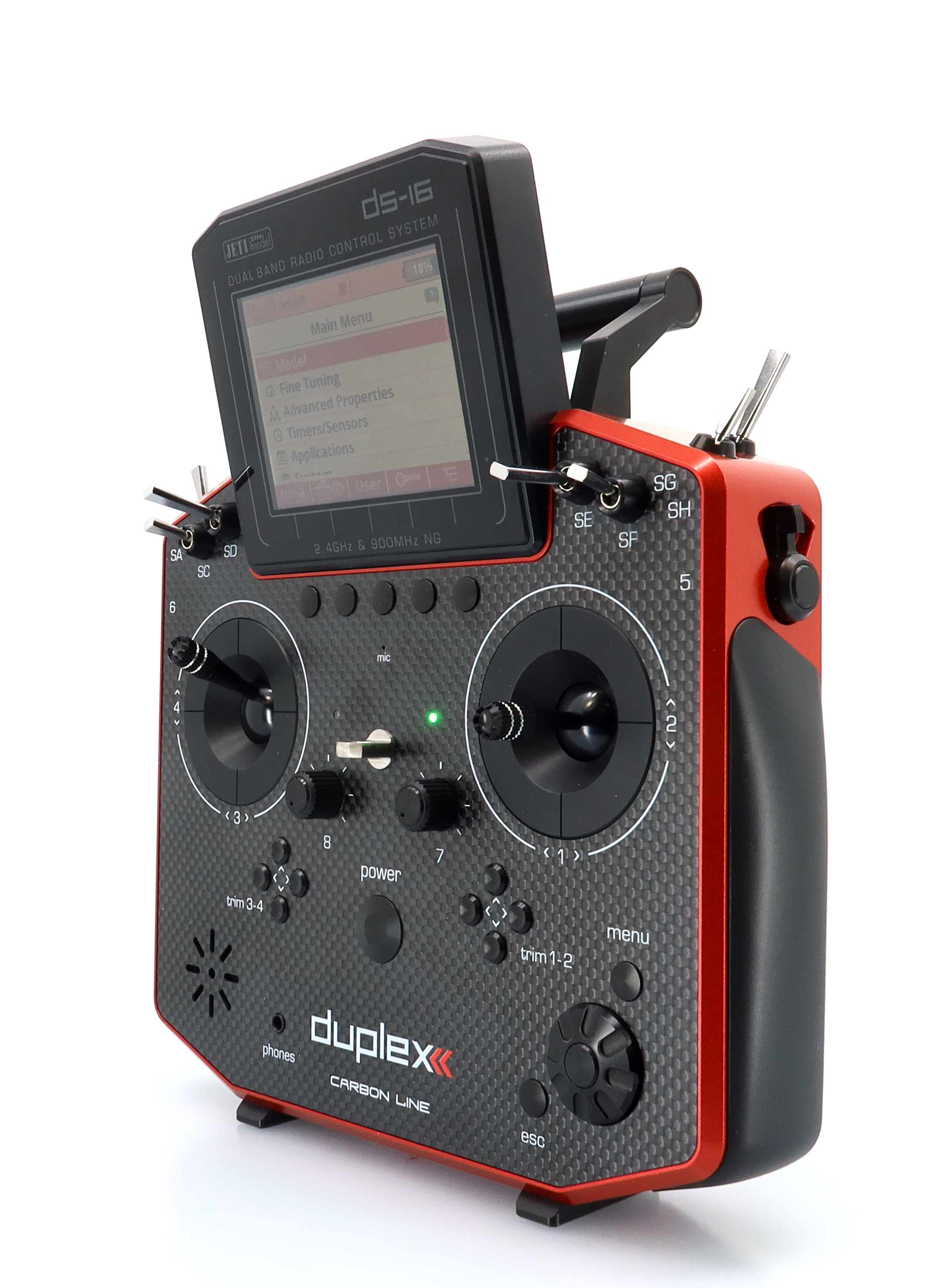

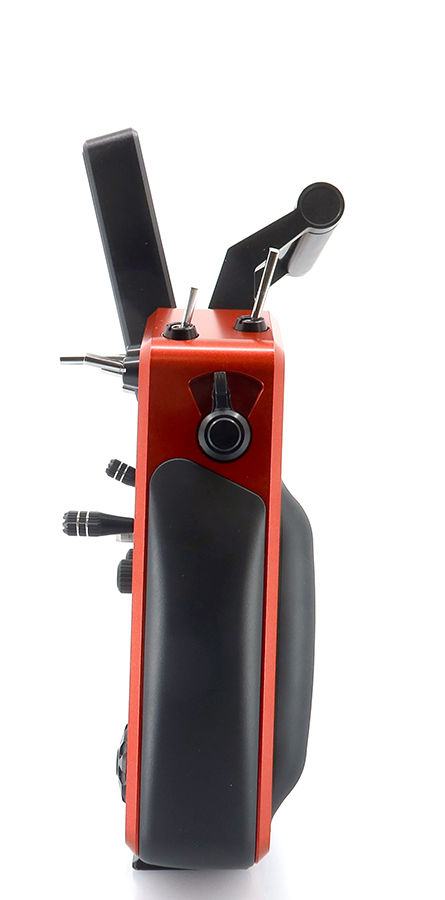

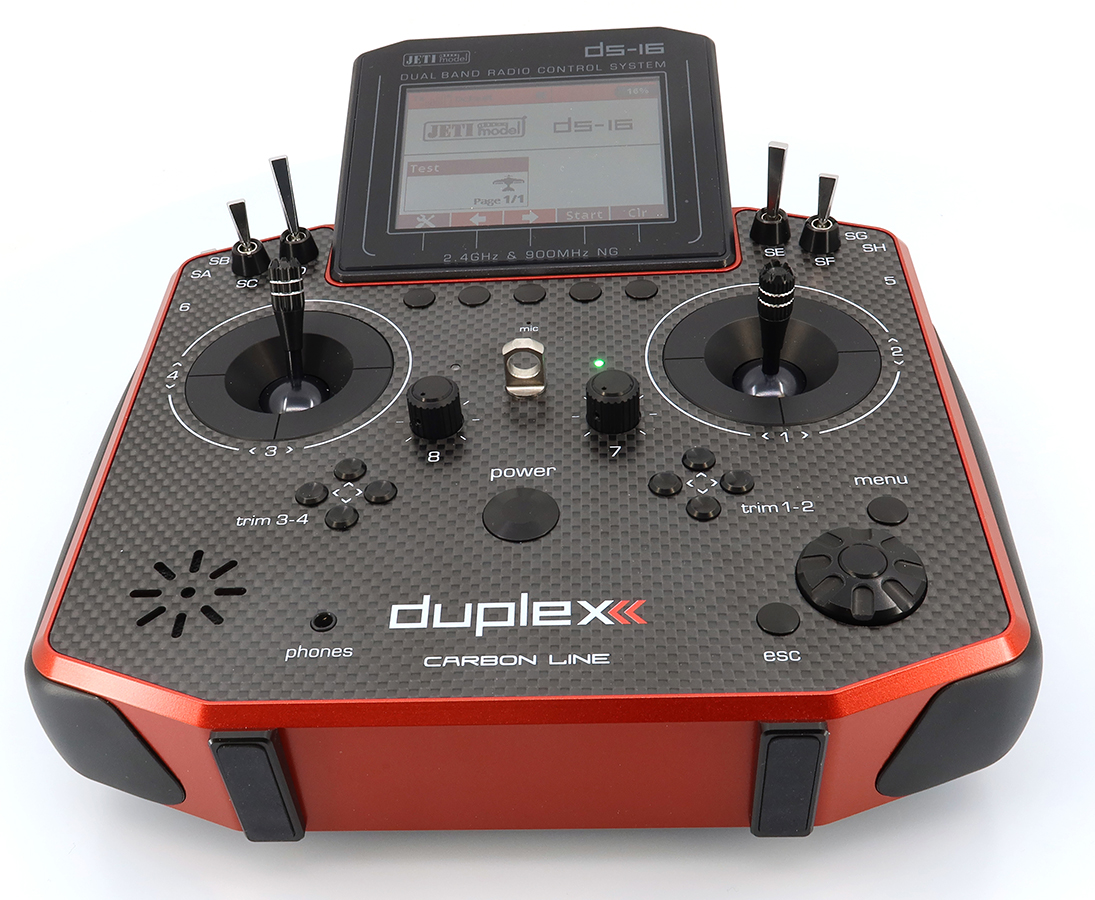

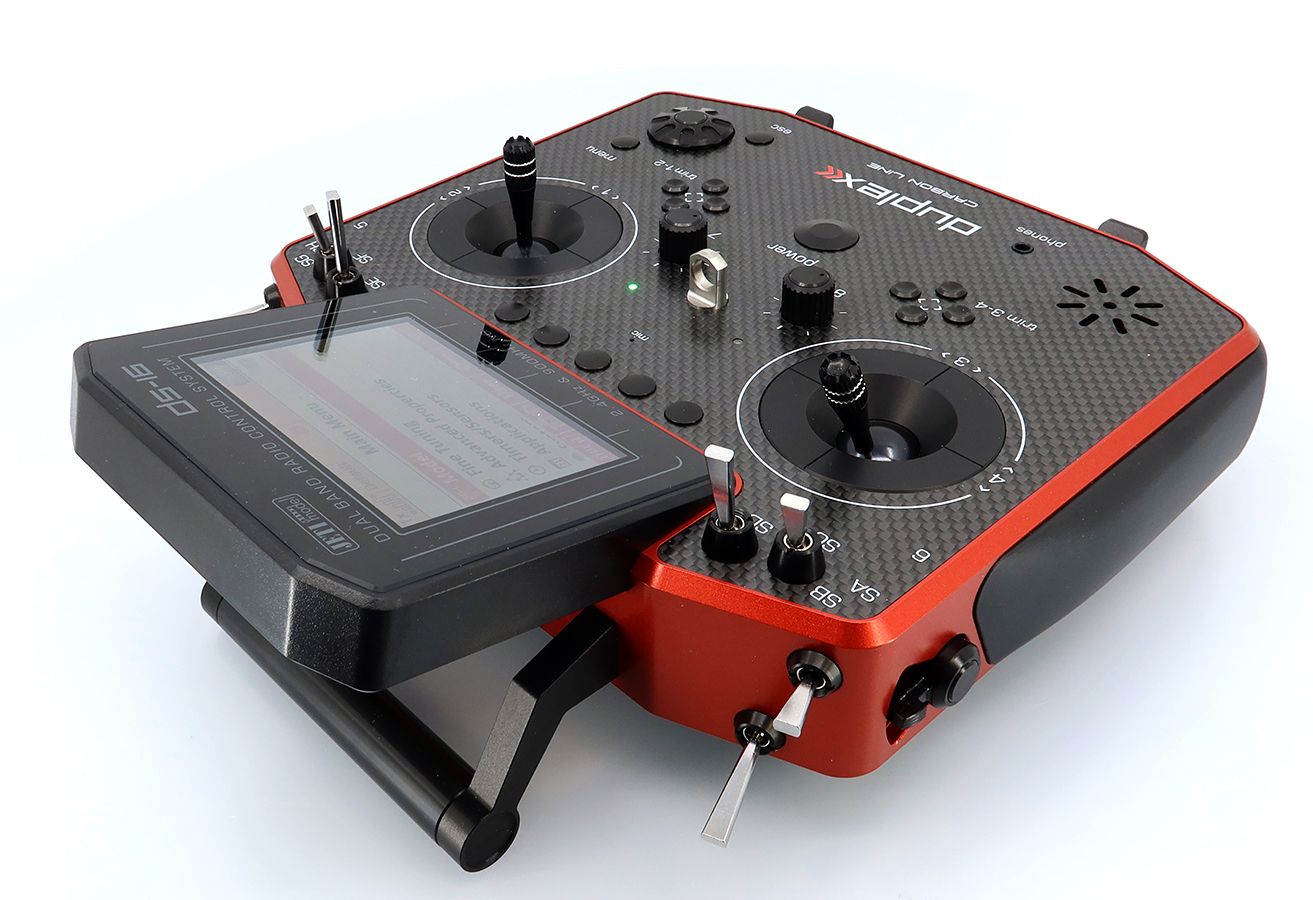

Transmitter Duplex DS-16 II.- Carbon Line Black US

Art. No.:
JDEX-TDS16II-CLK-US

Description

Parameters

Downloads

Modules

Description

Parameters

Downloads

Modules

Description

The transmitters of the DS series are designed for thumb control.
These transmitters can be placed in a counter for these transmitters.

They retain all the functionality of the first generation.

In addition, they have:

• color display
• support MP3 files
• internal microphone
• voice commands (as an extension)
• back-up RF 900MHz NG module (as an extension)
• the package includes a REX 10 receiver and a strap

Parameters

Weight [g]	1200
Transmitter Aluminum Case	Yes
Transmitter Battery Pack (mAh)	6200
Backlit LCD	3.5
Memory, SD Card	8GB
Gimbal Hall Sensors/Vibration	Yes / No
Stick Resolution	4096
Transmitter Frame	Aluminum
Gimbals & Buttons	Aluminum
Number of antenas 2.4GHz/900MHz	4 / 1
Dimensions [mm]	194 x 233 x 40
Output Power - 2.4GHz [mW]	100
Operational temperature [°C]	- 10 to 60
Channels	24
Control Inputs (Stick/Switch/Knob)	16
Backup Module 900MHz	upgradable
Flight Modes	10
Free Mixes	20 (to 25)
Data Graphs	Active
Audio Player	Active
Logical Switches	16 (up to 24)
Number of Remote Commands	16 (up to 24)
Servo Sequencer	6 (up to 10)
Timers	10
Displayed Telemetry Values	40
Sound on Events	20 (up to 30)
Alarms	40
Vibration Alarms	No
Voice Output	Active
MP3	Active
Microphone	Active
Gyro Settings	3
Servo Balancer	Active
Function Curves	Active
Throttle Limiter (heli)	Active
Variometer	Active
Flight Mode Trim	Active
Data Stream Logging	80
Telemetry Controls	8
Voice Commands	0 (up to 15)
Lua Apps	10
Ditex Servo Telemetry	Active
Double Path	Active
Accelerometer	Active
RF modules 2.4GHz/900MHz	2 / 1 (next generation) 863 - 870 MHz (EU), 902 - 928 MHz (US)
Control Inputs (Stick/Switch/Knob)	16

Downloads

Manual for Duplex Transmitters DC/DS-16II - "Basic setting" - English

DC-DS-16II-EN-2023-04-web.pdf

Manual for Duplex Transmitters DC/DS-16II - "Basic setting" - German

DC-DS-16II-DE-2023-04-web.pdf

Manual for Duplex Transmitters DC/DS-16II - "Basic setting" - Czech

DC-DS-16II-CZ-2023-04-web.pdf

Manual for Duplex transmitters - "Main menu" - Czech

DC-DS-CZ-2021-04-MainMenu-web.pdf

Manual for Duplex transmitters - "Main menu" - Germany

DC/DS-DE-2021-04-MainMenu-web.pdf

Manual for transmitter - "Main menu" - English

DC-DS-EN-2021-04-MainMenu-web.pdf

Overview of transmitter accessories and their compatibility - april-2024-CZ

Overview of transmitter accessories and their compatibility - april-2024-DE

Overview of transmitter accessories and their compatibility - april-2024-EN

Modules

Voice Commands up to 16

VF modul 900MHz

Enables the NG back-up transmitter module in the 900MHz band NG (Next Generation). The DS-12 transmitters feature a backup wireless system for high data transmission safety and reliability.

Free Mixes up to 25

Increases the number of free mixes from 5 to 20. Configuration of free mixes is carried out in Fine Tuning › Free Mixes.

Logicswitches up to 24

Enables the function of 16 logical switches that determine their output according to the position of up to two assigned controls. You can also assign the output of each logical switch as the input of any model function. This way it is possible to create several virtual controls very easily that can be used to control the securing of landing gear, start timers or the activation of aerodynamic brakes. The configuration is available in Advanced Properties › Logical Switches.

Number of remote commands up to 24

Activation of 16 control commands for controlling devices connected via EX Bus. By the simple move of a switch on the transmitter it is possible e.g. to delete maximums and minimums recorded in the Central Box after each flight. The control commands can be understood as extra channels for additional functions of the model. The summary of active commands is to be found in Model › Device Explorer.

Sequencer up to 10

Activation of up to 6 user adjustable sequences. The start is carried out via an assigned control. Using the sequencer, you can easily achieve realistic landing gear retraction in scale models, in addition it is possible to control periodic events, such as position lights blinking. Setting the sequences is possible in Advanced Properties › Sequencer.

Event sounds up to 30

Increases the number of programmable sounds on events from 5 to 20. The sound file can start playing according to the condition of the assigned driver. Suitable as notification if extra functions of the model are active, such as landing gear retraction or flaps activation. The configuration of sounds on events is available in Advanced Properties › Sounds on Event.
